Fuel System Pressure Check 4.0L
- Make
- Land Rover
- Model
- Discovery LR3/Disco 3
- Section
- Fuel System Pressure Check 4.0L
310-00 Fuel System General InfoFuel System Pressure Check 4.0L · page 1 of 3
Fuel System Pressure Check - 4.0L (19.50.13)

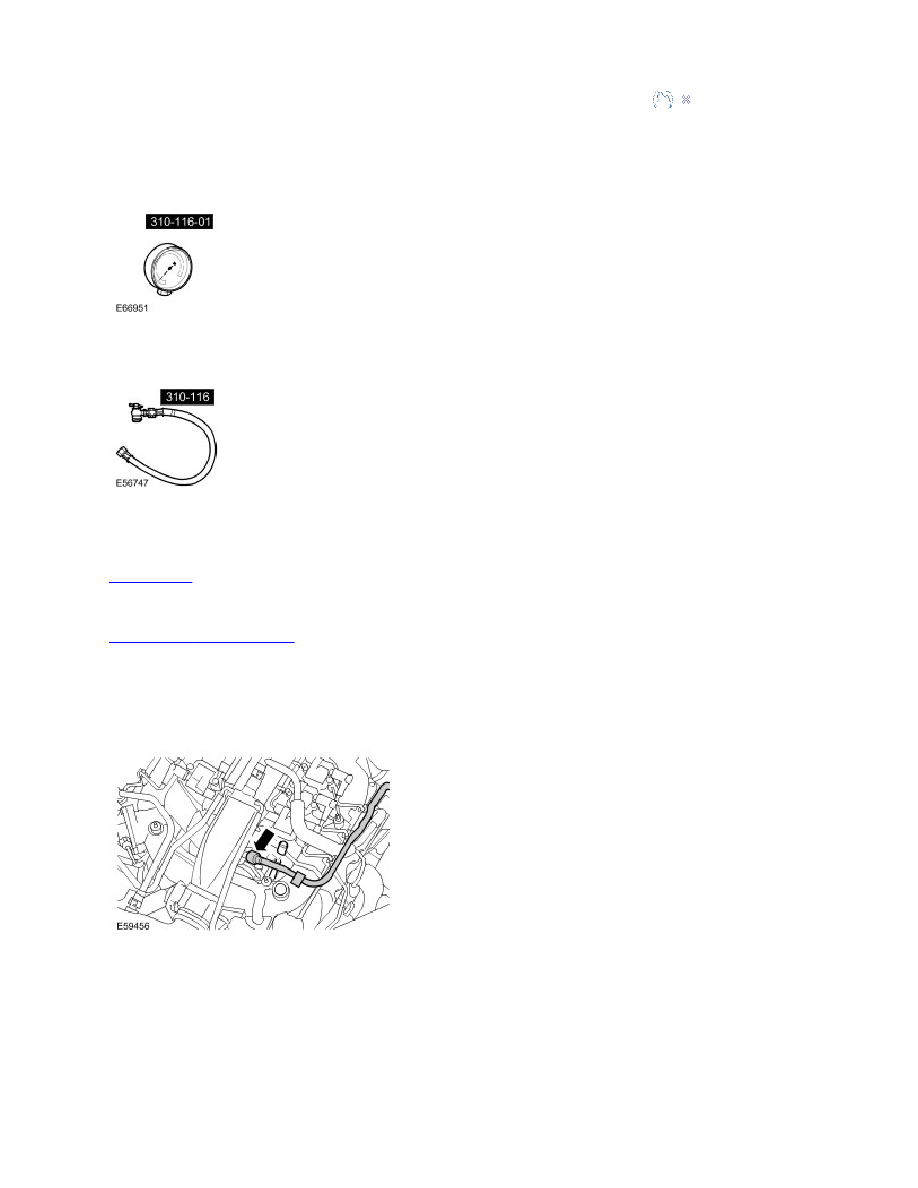

Special Service Tools
Gauge fuel pressure
310-116-01
Adapter - fuel pressure check
310-116(LRT-19-006A)
1 . Disconnect the battery ground cable.
Specifications
2 . Remove the engine cover.
Engine Cover - 4.0L (12.30.50)
3 . Release the clip and disconnect the purge line.
4 . Remove the fuel rail Schraeder valve cap.
5 . Install the special tool to the fuel rail Schraeder valve.
Published : Jul 28, 2005
