204-01 Front SuspensionDescription & Operation · page 1 of 10

Front Suspension

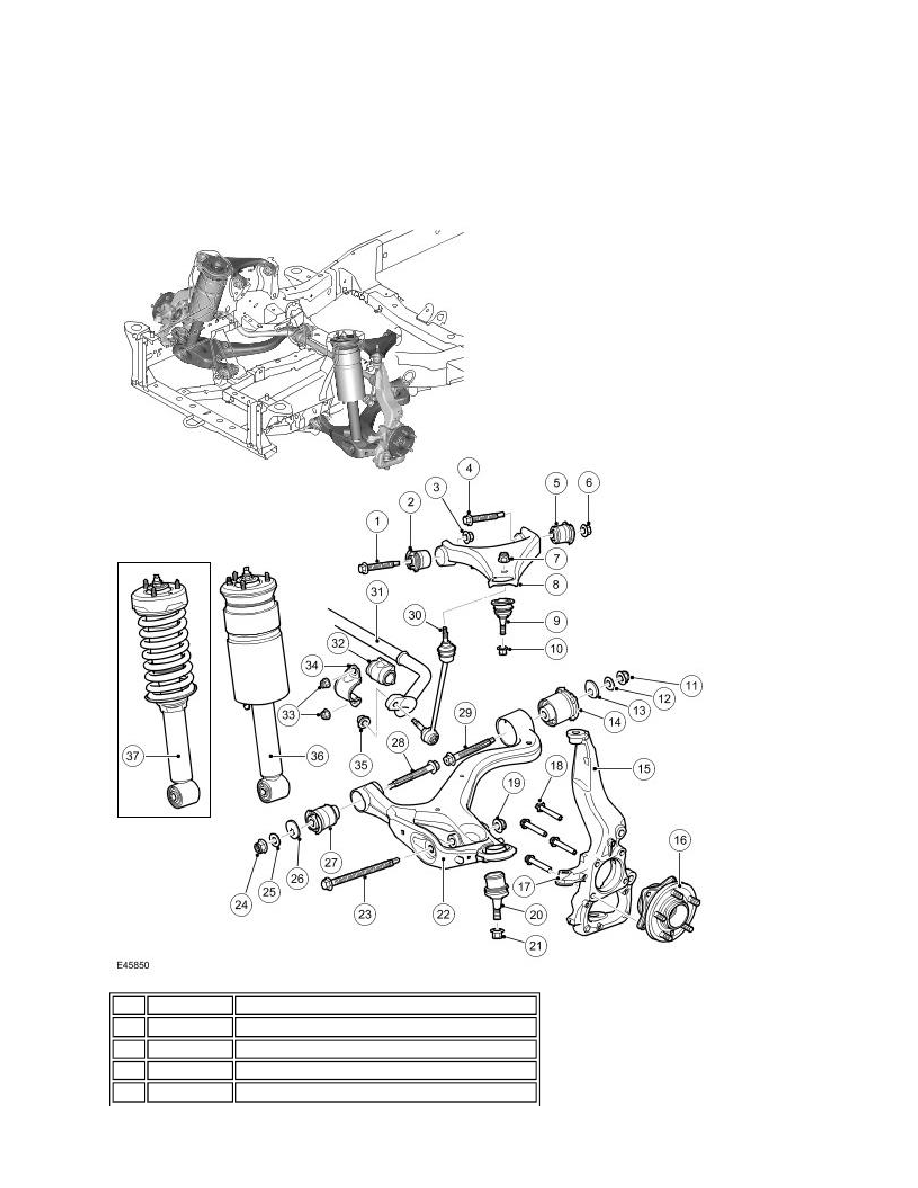

Front Suspension Component Layout

NOTE:









Air suspension version shown

Item Part Number

Description

1

 -

Flanged bolt (Upper control arm forward bush)

2

 -

Bush - forward (Upper control arm)

3

 -

Nut (Upper control arm forward bush)

4

 -

Flanged bolt (Upper control arm forward bush)
