Land Rover LR3/Disco 320 · 206-05 Parking Brake And Actuation
20 · Brakes

Description And Operation Parking Brake

Make
Land Rover
Model
Discovery LR3/Disco 3
Section
Description And Operation Parking Brake
206-05 Parking Brake And ActuationDescription And Operation Parking Brake · page 1 of 15
background image




Parking Brake

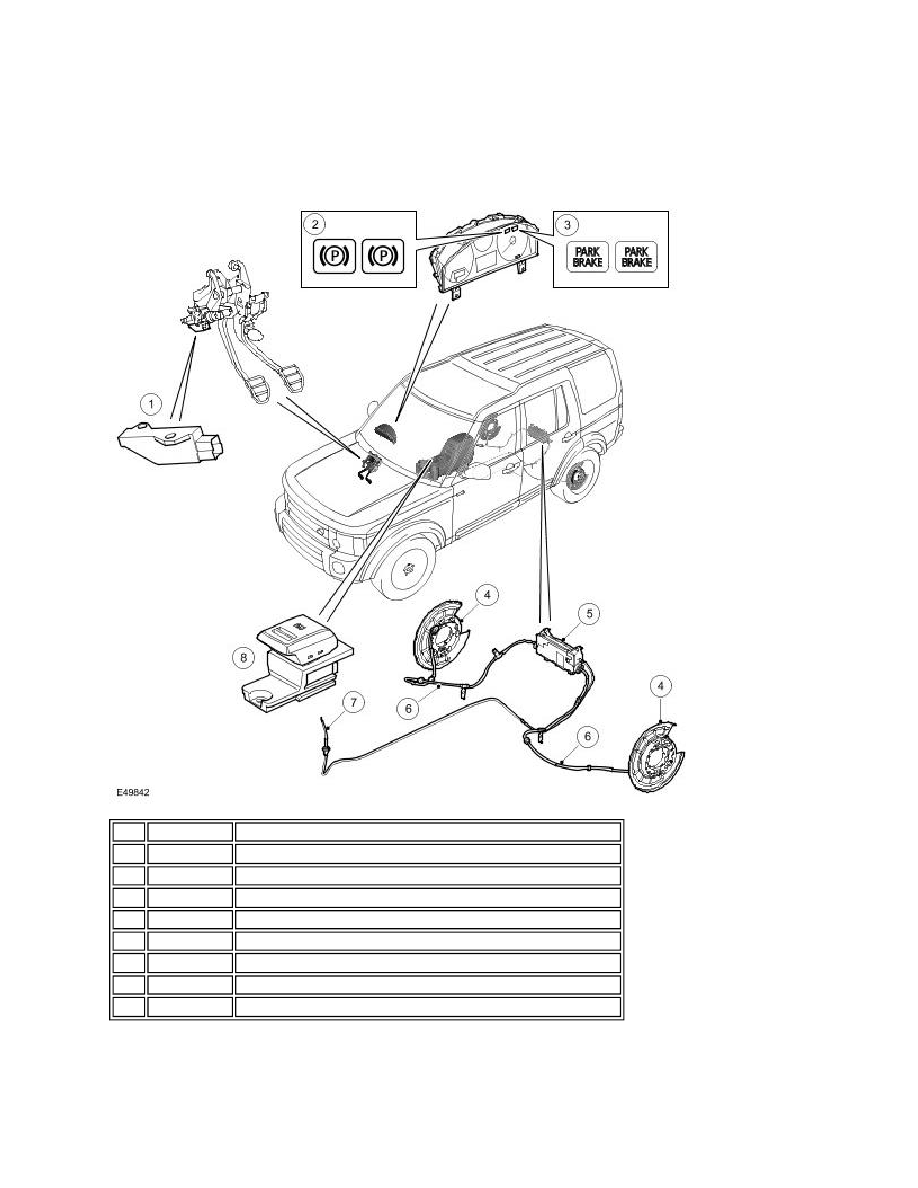

COMPONENT LOCATIONS







GENERAL

The parking brake is an electrically actuated system that operates drum brakes integrated into the rear brake discs. The

Published: Oct 22, 2004

Item Part Number

Description

1



Clutch pedal position sensor (manual transmission models only)

2



Parking brake indicators (all except NAS)

3



Parking brake indicators (NAS only)

4



Drum brake

5



Parking brake module

6



Parking brake cable

7



Emergency release cable

8



Parking brake switch
