Cover - squab - rear seat - side - LH

SEATS

REPAIRS 76-5-35

10. Position lower squab cover to backboard and

staple.

11. Fit backboard tension straps to under seat

retaining clips.

12. Fit armrest to boss and secure with Allen bolt,

tighten to 25 Nm (18 lbf.ft).

13. Fit seat assembly.

 +

 SEATS, REPAIRS, Front seat.

Cover - squab - rear seat - side - LH

$% 78.90.12

Remove

1. Remove seat base finisher.

 +

 SEATS, REPAIRS, Finisher - seat

base rear.

2. Remove seat fold mechanism.

 +

 SEATS, REPAIRS, Hinge - rear seat

- side.

3. Remove rear squab finisher.

 +

 SEATS, REPAIRS, Finisher - rear

seat squab.

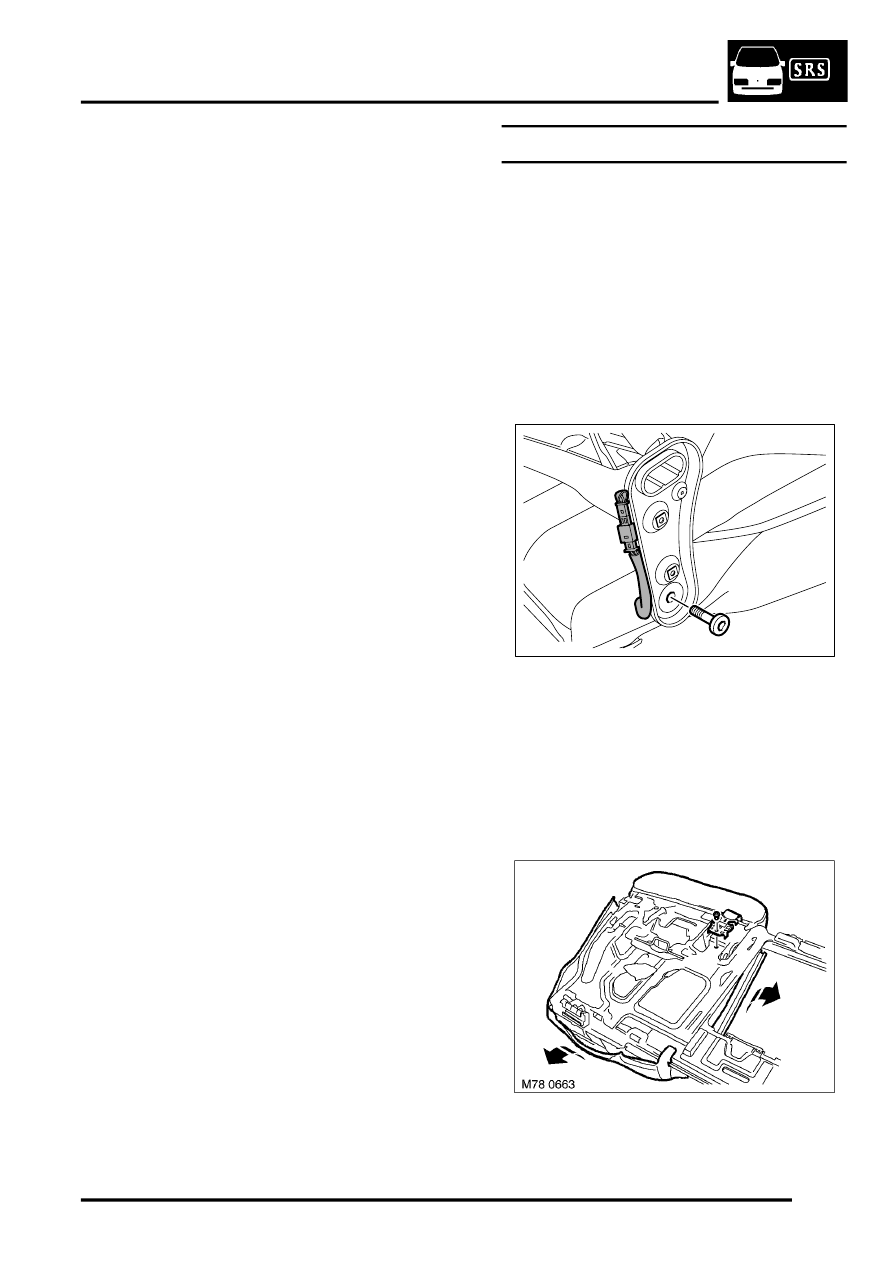

4. Remove Torx bolt securing squab frame to seat

frame, separate frames.

5. Remove armrest front finisher assembly.

 +

 SEATS, REPAIRS, Finisher - arm

rest - rear seat - front.

6. Disconnect multiplug from heated squab.
7. Release finisher from retaining clips and

remove.

8. Release seat cover beading from sides and

front.

M78 0646
