Sunroof drain tubes

PANEL REPAIRS

REPLACEMENT PANELS

-5

Sunroof drain tubes

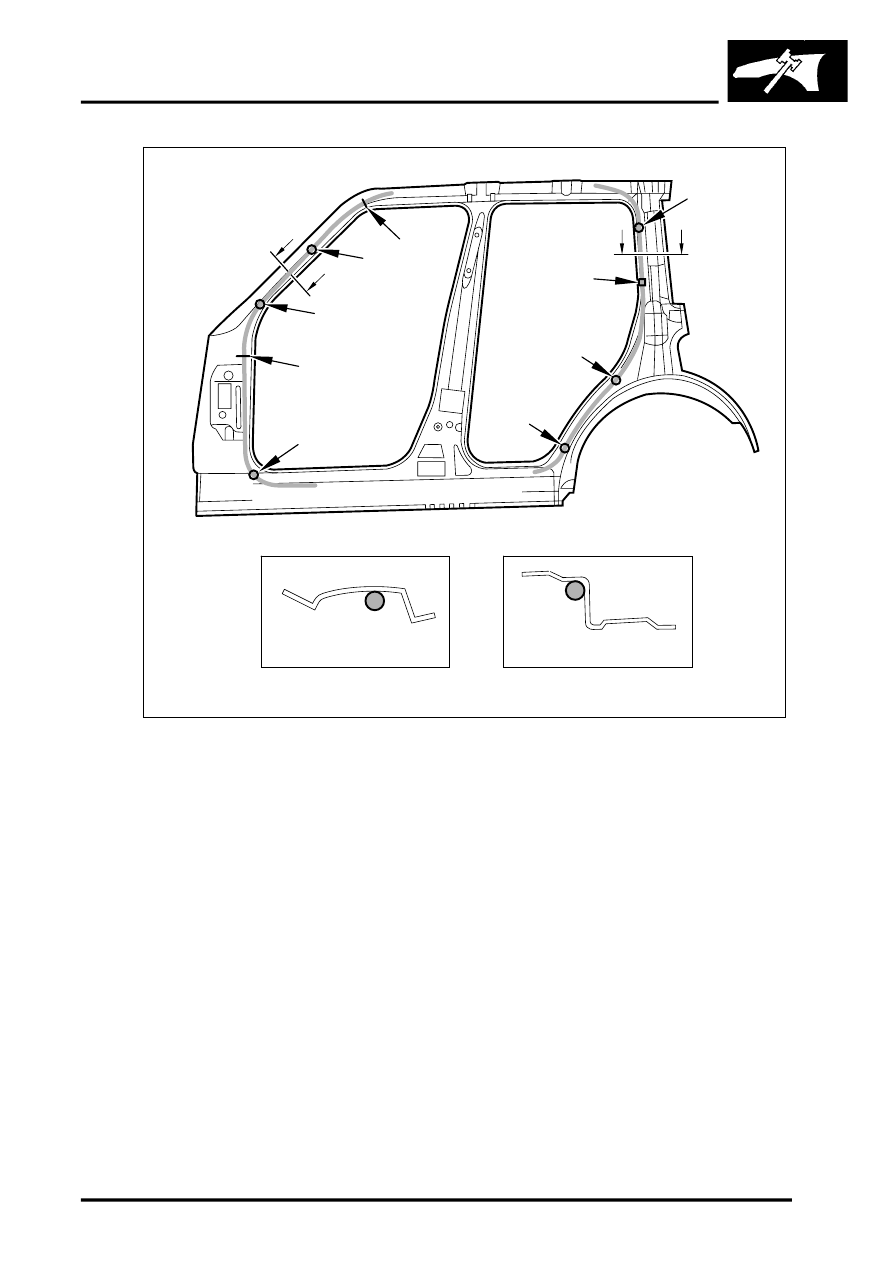

Section A-A and B-B show the approximate position of each drain tube in the body side closing panel. The letters A,

B and C highlight the position, and type of clips used, to hold the drain tubes in place.

l

A = Metal clip, welded to the panel

l

B = Plastic clip

l

C = Expanding foam block, clipped to the panel

M77 2181A

Section A - A

Section B - B

B

B

A

A

A

A

B

B

B

B

B

C

B
