PANEL REPAIRSRear end panels
PANEL REPAIRS
-8
REPLACEMENT PANELS

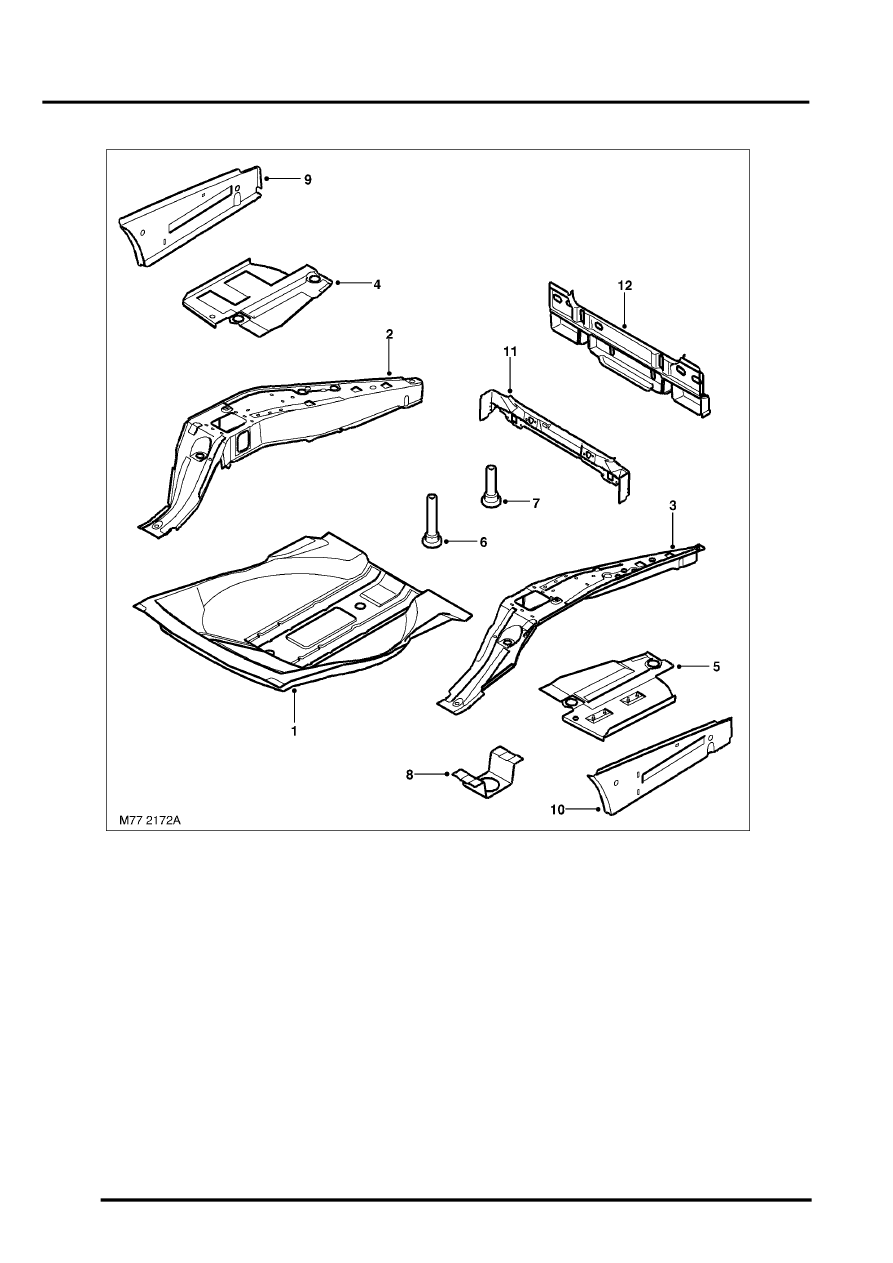

Rear end panels
1 Spare wheel well assembly
2 Floor longitudinal - RH
3 Floor longitudinal - LH
4 Rear floor extension panel - RH
5 Rear floor extension panel - LH
6 Mounting bush - front - rear sub-frame
7 Mounting bush - rear - rear sub-frame
8 Spare wheel mounting bracket
9 Floor longitudinal closing panel - RH
10 Floor longitudinal closing panel - LH
11 Body rear outer panel
12 Body rear assembly
