MAINTENANCEV8 Engine underbonnet view

MAINTENANCE

10-2

PROCEDURES

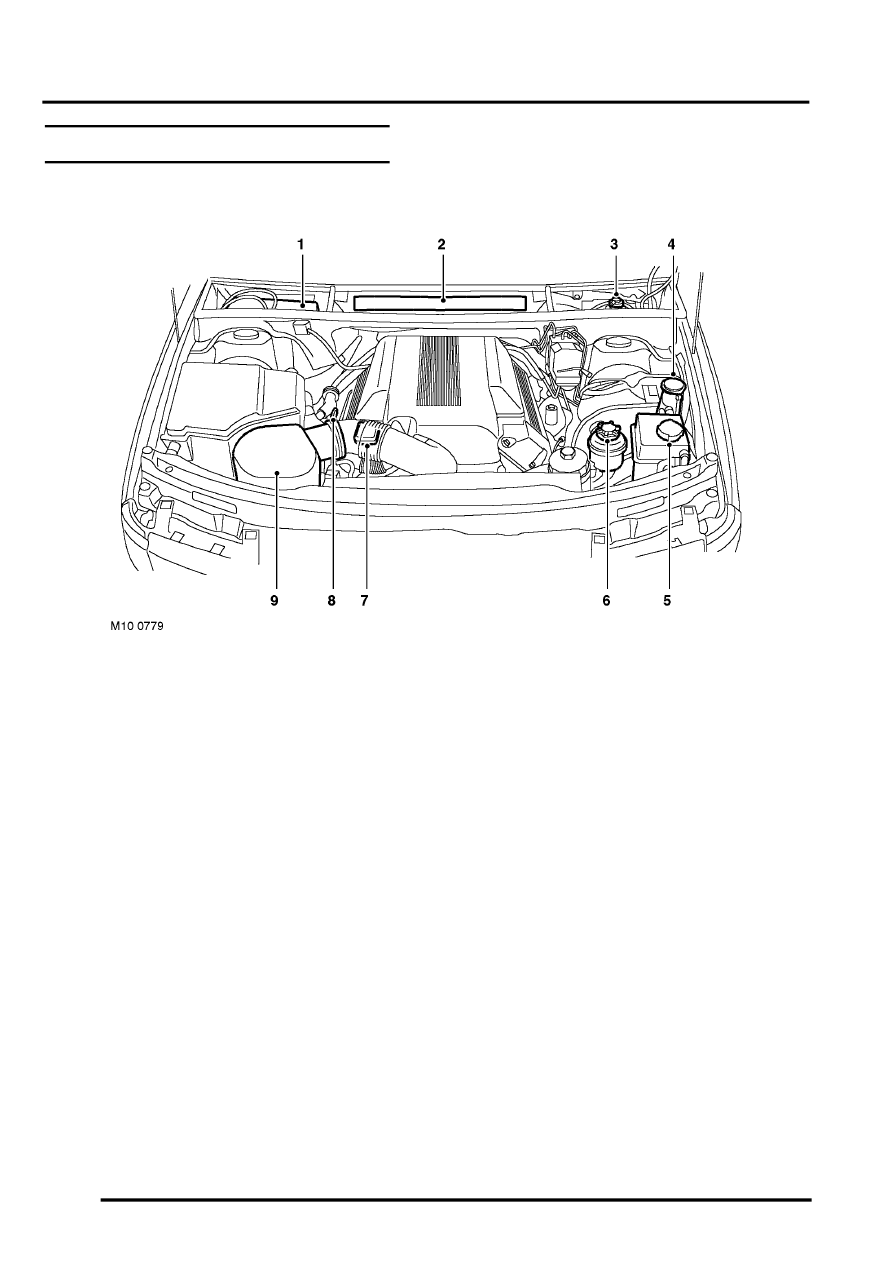

V8 Engine underbonnet view

1 Battery - LHD illustrated, RHD on opposite side
2 Microfilter/activated charcoal filter
3 Brake fluid reservoir - LHD illustrated, RHD on

opposite side

4 Screen/headlamp washer reservoir filler cap
5 Cooling system expansion tank filler cap
6 Power steering reservoir filler cap
7 Engine oil filler cap
8 Engine oil dipstick
9 Air cleaner

40 Maintenance
