Switch - hazard warning

LIGHTING

REPAIRS 86-2-11

8. Remove switch assembly from finisher.

Refit

1. Fit switch assembly to finisher.
2. Connect multiplugs.
3. Fit finisher to fascia and secure with screws.
4. Fit face level air vents.

 +

 HEATING AND VENTILATION,

REPAIRS, Fresh air vent - face level.

5. Fit fascia end closing panels.

 +

 INTERIOR FITTINGS, REPAIRS,

Closing panel - fascia end.

6. Fit 'A' post finisher.

 +

 INTERIOR FITTINGS, REPAIRS,

Trim finisher - 'A' post - upper.

Switch - hazard warning

$% 86.65.50

Remove

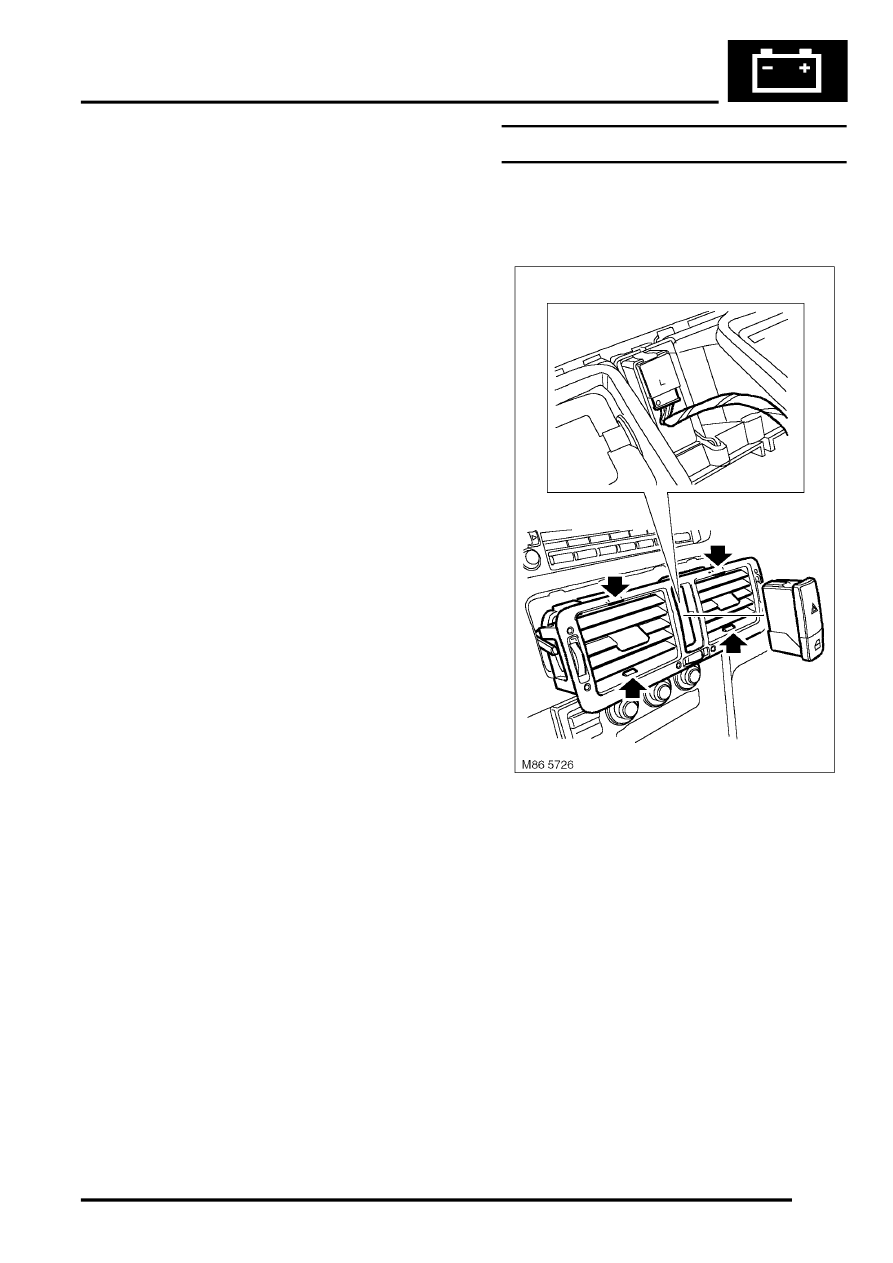

1.  Release 4 internal clips securing air vent to

finisher, apply an even outward pressure until
the last clip is released.

2. Disconnect multiplug and remove hazard

warning switch.

Refit

1. Position hazard warning switch and connect

multiplug.

2. Fit and secure air vent.
