Console - headlining - front

INTERIOR FITTINGS

76-3-8

REPAIRS

Console - headlining - front

$% 76.25.02

Remove

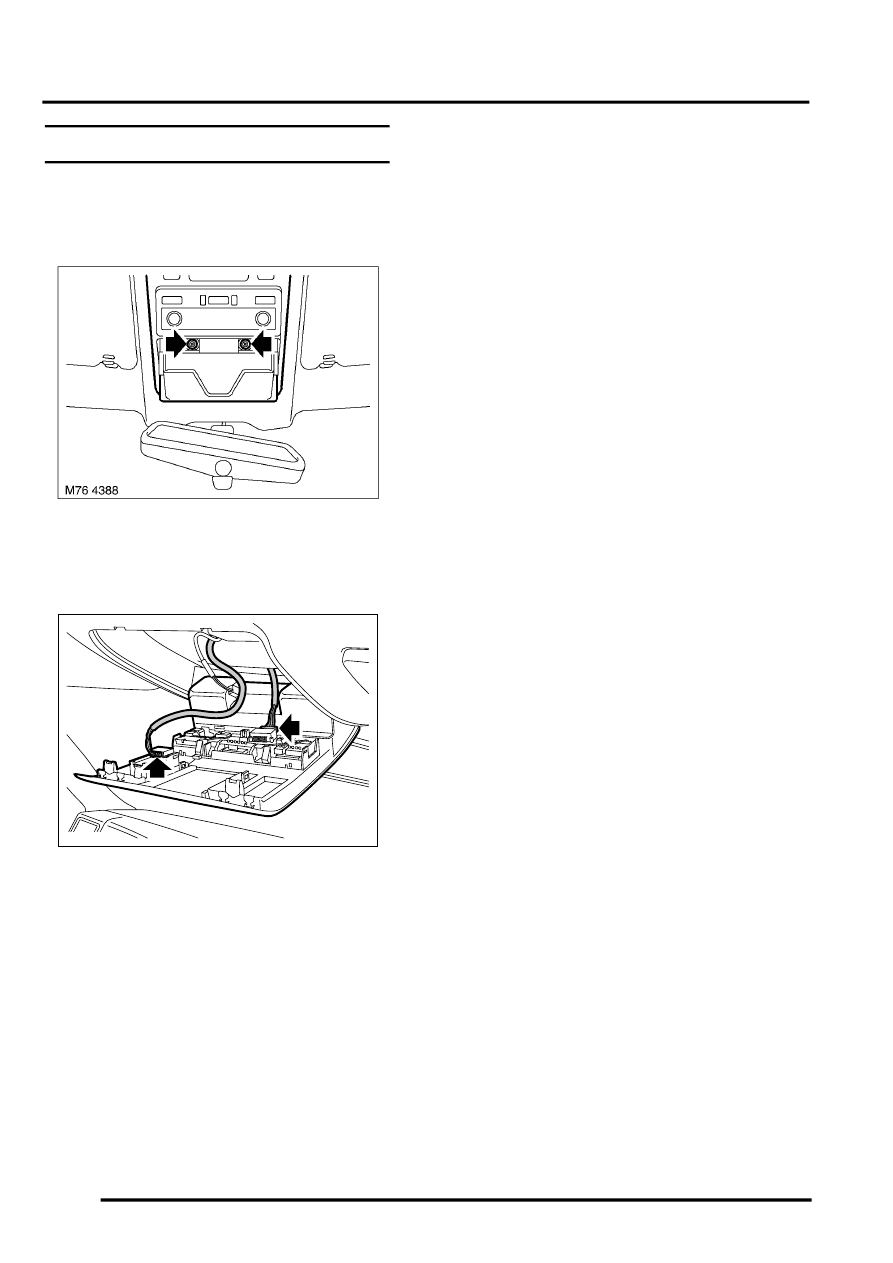

1. Open spectacle holder, remove 2 screws

securing console and release console from
headlining.

2. Disconnect multiplugs from switches and lamp.

Remove console assembly.

NOTE: Do not carry out further dismantling if
component is removed for access only.

3. Remove lamp from console.
4. Remove switches from console.
5. Remove 2 retaining clips from console.

Refit

1. Fit retaining clips to console.
2. Fit switches to console.
3. Fit lamp to console.
4. Position front console and connect multiplugs.
5. Fit console to headlining and secure with

screws.

6. Close holder.

M76 4389
