Receiver - fuel burning heater (FBH)

HEATING AND VENTILATION

80-14

REPAIRS

7. Refill cooling system.

 +

 COOLING SYSTEM - Td6,

ADJUSTMENT, Coolant - drain and refill.

8. Fit front wheel arch liner.

 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - front wheel arch.

9. Fit battery carrier.

 +

 CHARGING AND STARTING,

REPAIRS, Carrier - battery.

Receiver - fuel burning heater (FBH)

$% 80.40.02

Remove

1. Disconnect battery earth lead.
2. Remove access panel from load space RH trim

casing.

3. Remove warning triangle.

4. Remove cable tie securing harness.
5. Release 2 straps securing harness.

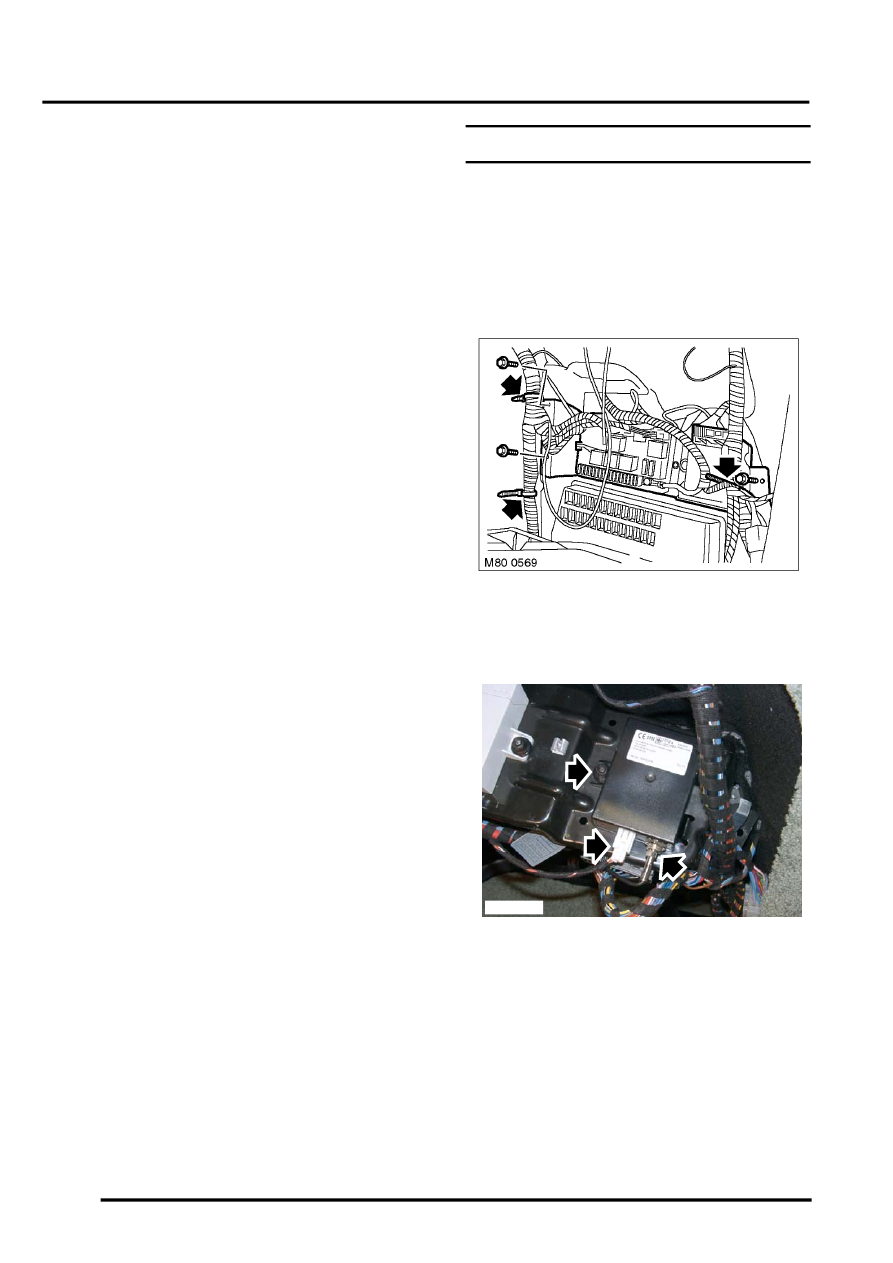

6. Remove 3 bolts securing fuse box to body.

7. Loosen nut and disconnect coaxial cable.
8. Disconnect multiplug from receiver.
9. Remove nut securing receiver and remove

receiver.

Refit

1. Fit receiver and secure with nut.
2. Connect multiplug to receiver.
3. Fit coaxial and tighten nut to 2 Nm (1.5 lbf.ft).
4. Align fuse box and tighten bolts to 6 Nm (4.4

lbf.ft).

5. Align and secure harness.

M80 0570
