Pump - fuel tank (page 2 of 2)

FUEL DELIVERY SYSTEM - V8

19-2-8

REPAIRS

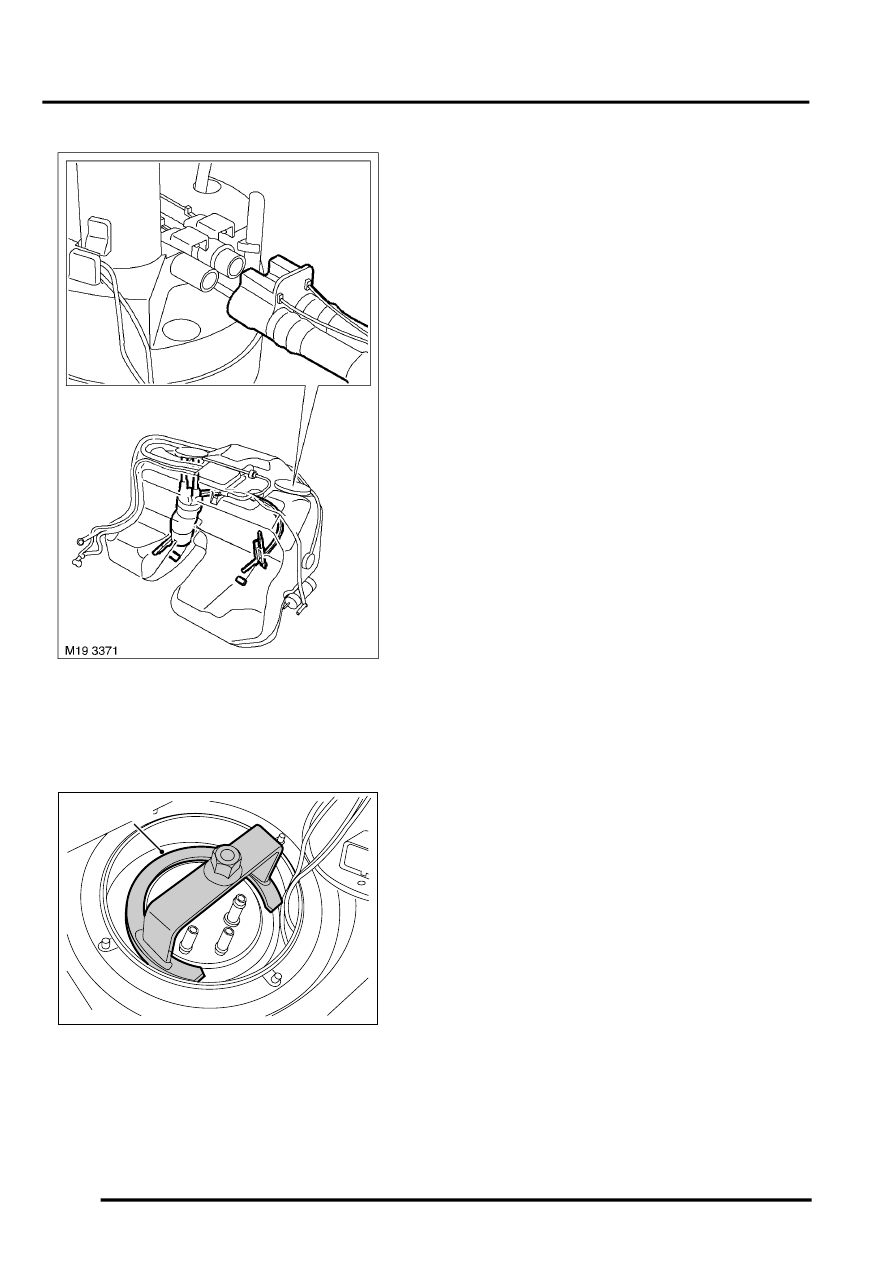

8. Through tank LH aperture, release clip and

disconnect combined multiplug and fuel pipe
connection from fuel pump body.

9. Clean area surrounding locking ring.

10. Using tool LRT-19-009 remove locking ring

from fuel tank.

11. Carefully release fuel pump tank unit assembly.

Remove and discard seal.

12. Position container to collect spillage.

13. Release tank LH sensor from mounting and

remove.

Refit

1. Clean area surrounding fuel tank access.
2. Clean pump body and fit new tank seal to

pump.

3. Connect combined fuel pipe and multiplug from

tank LH sender to pump assembly.

CAUTION: Ensure clip is securely located
after connection.

4. Carefully fit pump and check seal is correctly

seated. From LH aperture, check foot of pump
to ensure correct alignment with tank.

5. Using LRT-19-009,  fit locking ring and tighten

to 35 Nm (26 lbf.ft).

6. Connect fuel pipes to pump.
7. Remove container.
8. Connect multiplug to fuel pump.
9. Position fuel tank RH access panel, fit nuts and

tighten to 10 Nm (7 lbf.ft).

10. Connect battery earth lead.
11. Refill fuel tank.

 +

 FUEL DELIVERY SYSTEM - Td6,

ADJUSTMENTS, Tank - drain.

12. Connect TestBook/T4, to ensure new fuel level

senders are working correctly, and reset
adaptions.

M19 3372

LRT-19-009
