Differential assembly - Td6 (page 2 of 3)

FRONT DIFFERENTIAL

54-4

REPAIRS

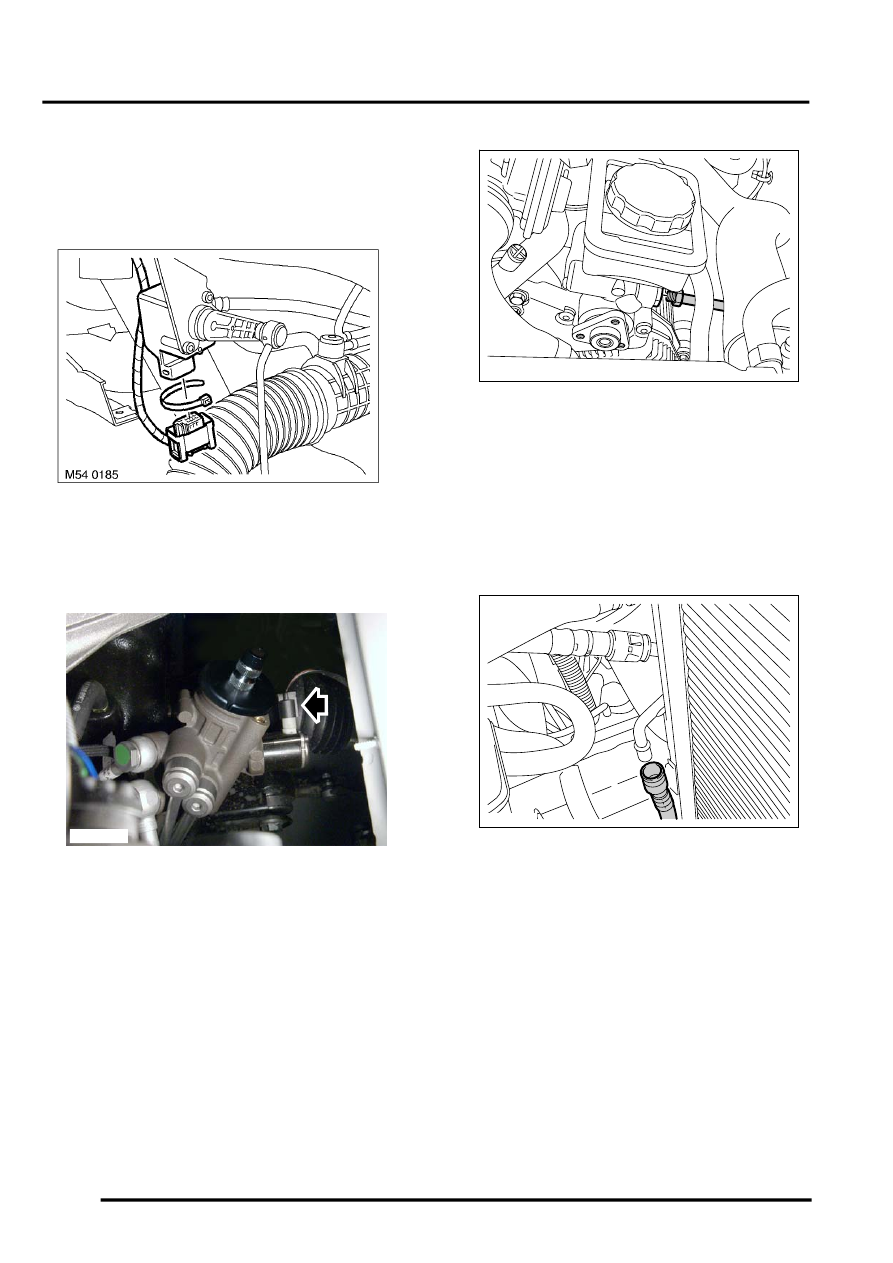

16. Disconnect mounting vacuum supply hose from

'T' piece.

CAUTION: Always fit plugs to open
connections to prevent contamination.

17. Note fitted position for refit then remove cable

ties securing height sensor harness to sub
frame and sensors.

18. Disconnect height sensor multiplugs.

19. Disconnect multiplug from PAS rack pinion

sensor.

20. Position container to collect PAS fluid spillage.

21. Loosen union nut, disconnect PAS outlet hose

from pump and discard 'O' ring.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

22. Remove nut securing PAS hose to mounting.

23. Release and disconnect PAS return hose from

fluid cooler.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

M54 0186

M57 1115

M57 1173
