Switch - oil pressure

ENGINE - V8

12-2-60 REPAIRS

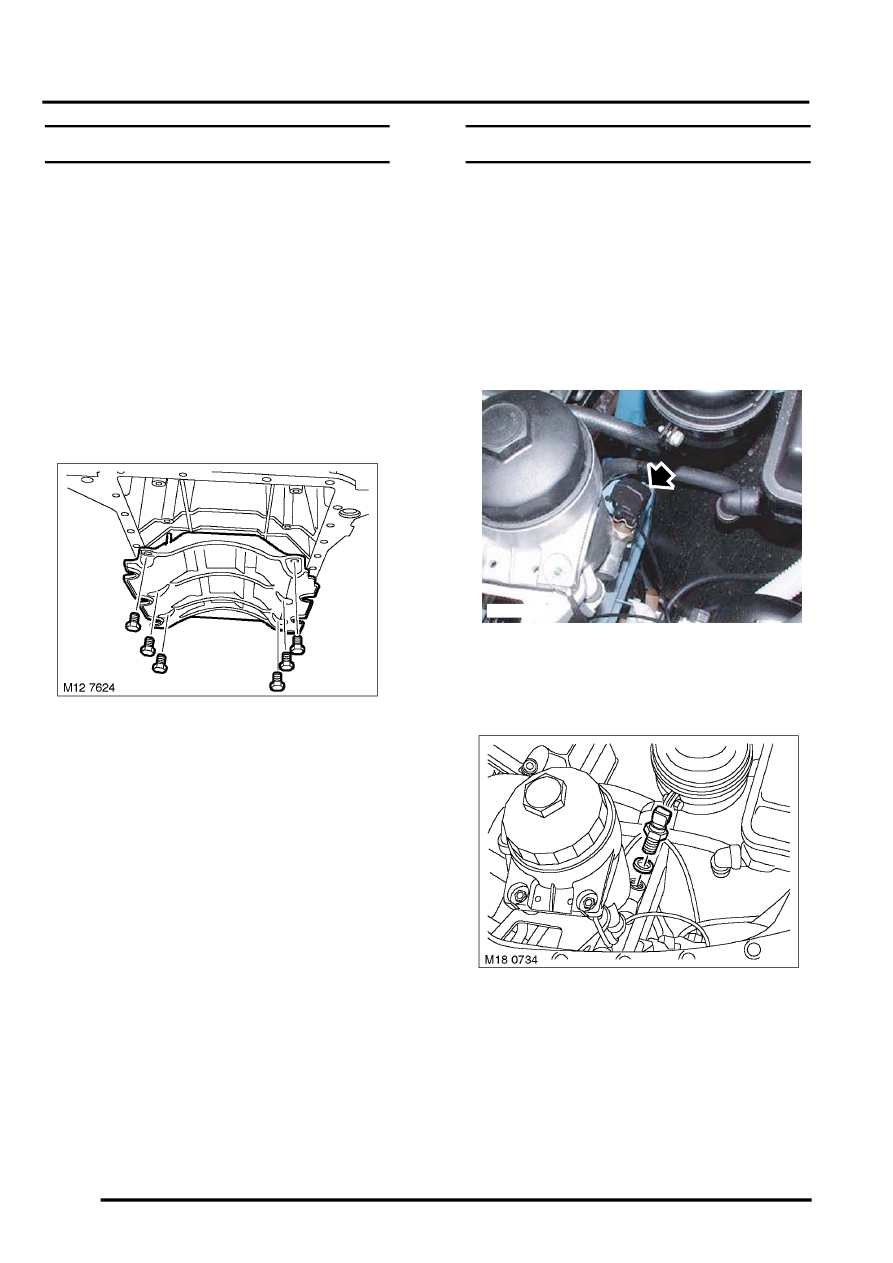

Baffle Plate

$% 12.60.46

Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.


 +

 GENERAL INFORMATION, Electrical

Precautions.

Remove

1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Remove engine oil sump.

 +

 Engine - V8, REPAIRS, Gasket - oil

sump.

4. Remove 6 bolts securing baffle plate and

remove plate.

Refit

1. Fit baffle plate and tighten bolts to 10 Nm (7

lbf.ft).

2. Fit engine oil sump.

 +

 Engine - V8, REPAIRS, Gasket - oil

sump.

3. Connect battery earth lead.

Switch - oil pressure

$% 12.60.50

Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.


 +

 GENERAL INFORMATION, Electrical

Precautions.

Remove

1. Disconnect battery earth lead.

2. Disconnect multiplug from oil pressure switch.
3. Position absorbent cloth beneath oil filter

housing to collect spillage.

4. Remove oil pressure switch from oil filter

housing and discard sealing washer.

M18 0740
