Variable camshaft unit - variable camshaft control (VCC) (page 3 of 6)

ENGINE - V8

OVERHAUL 12-2-97

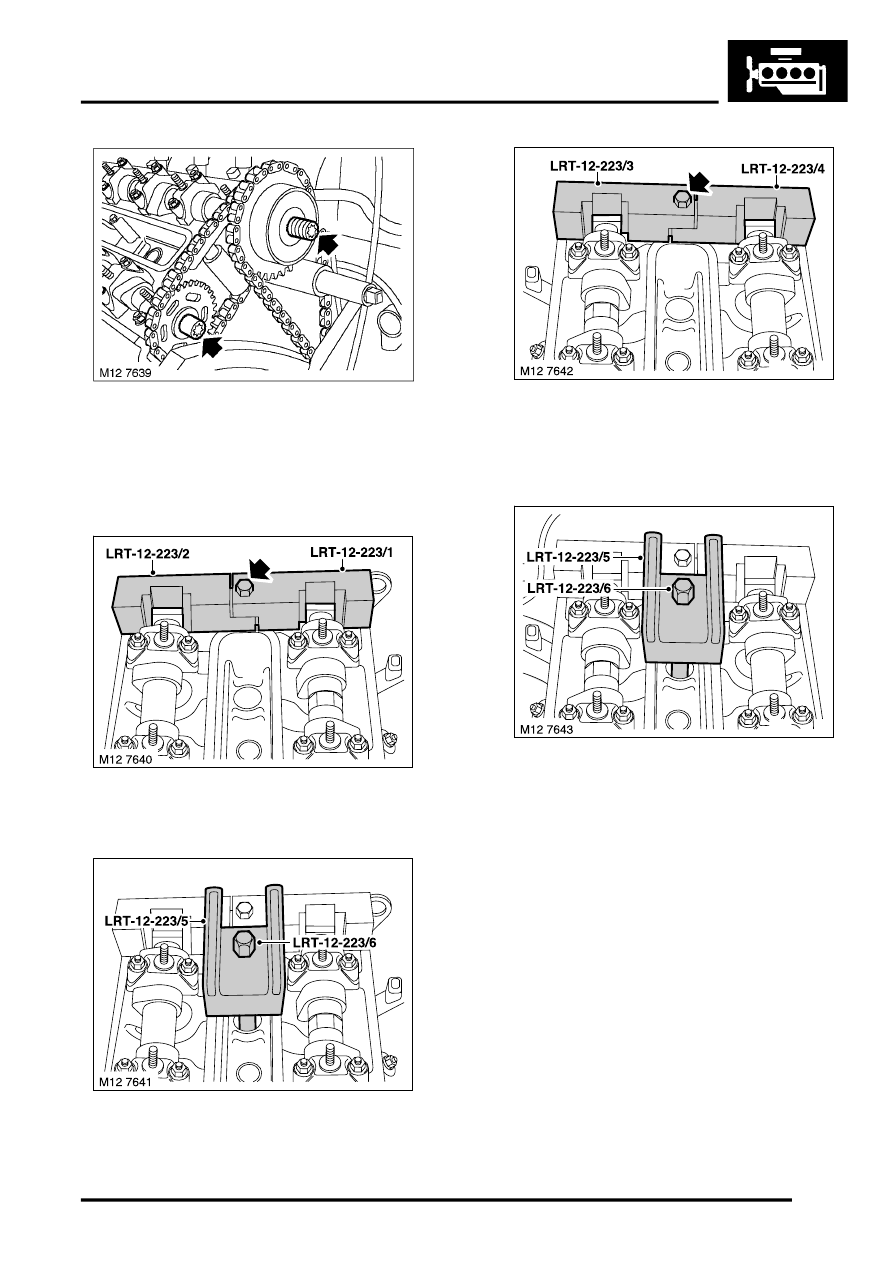

4. Loosen 2 Torx bolts securing RH VCC unit and

RH exhaust camshaft sprocket 1/2 a turn.

NOTE: Thread is left handed.

5. Loosen bolt securing LRT-12-223/2 to LRT-12-

223/1.

6. Fit LRT-12-223/2 and LRT-12-223/1 to rear of

RH camshafts and tighten bolt securing tools.

7. Fit LRT-12-223/5, LRT-12-223/6 to RH cylinder

head and tighten LRT-12-223/6 into spark plug
thread.

8. Loosen bolt securing LRT-12-223/4 to LRT-12-

223/3.

9. Fit LRT-12-223/4 and LRT-12-223/3 to rear of

LH camshafts and tighten bolt securing tools.

10. Fit LRT-12-223/5, LRT-12-223/6 to LH cylinder

head and tighten LRT-12-223/6 into spark plug
thread.
