Oil seal - crankshaft - rear

ENGINE - V8

12-2-84 OVERHAUL

Oil seal - crankshaft - rear

$% 12.21.20.01

Disassembly

1. Remove torque converter drive plate.

 +

 Engine - V8, REPAIRS, Torque

converter drive plate.

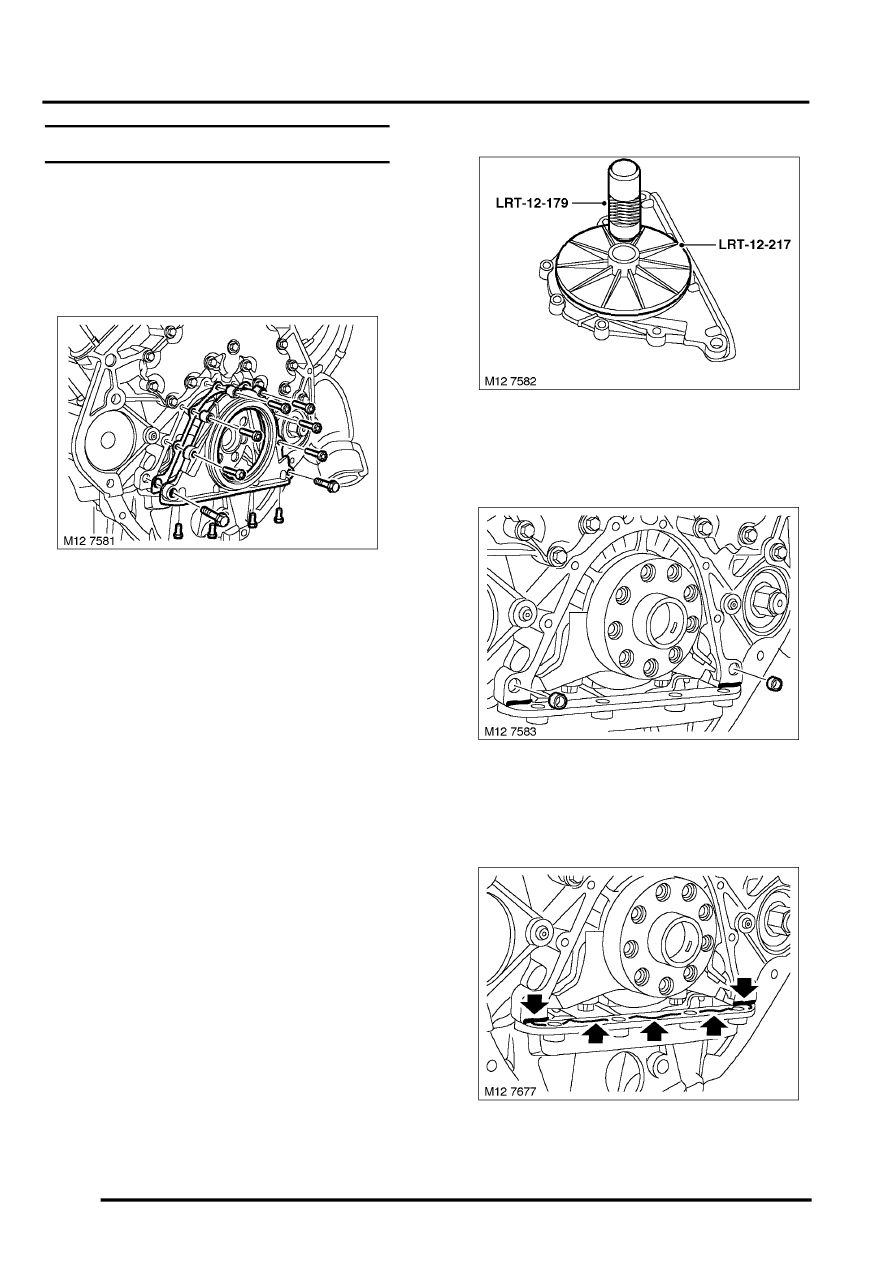

2. Remove 6 Torx bolts securing crankshaft rear

oil seal housing and discard sealing washers.

3. Remove 6 bolts securing crankshaft rear oil

seal housing.

4. Carefully release and remove crankshaft rear

oil seal housing.

5. Discard gasket from crankshaft rear oil seal

housing.

6. Remove crankshaft rear oil seal from housing.

Reassembly

1. Clean oil seal housing, dowel and dowel holes.
2. Clean oil seal recess in housing and running

surface on crankshaft.

3. Clean oil seal housing mating face on cylinder

block and remove old sealant from sump
gasket.

4. Fit LRT-12-217 and LRT-12-179 to new

crankshaft rear oil seal and fit new seal to
housing.

5. Check for correct fitment of dowels in cylinder

block.

6. Fit new gasket to crankshaft rear oil seal

housing.

7. Apply sealant to oil seal housing contact points

as shown.
