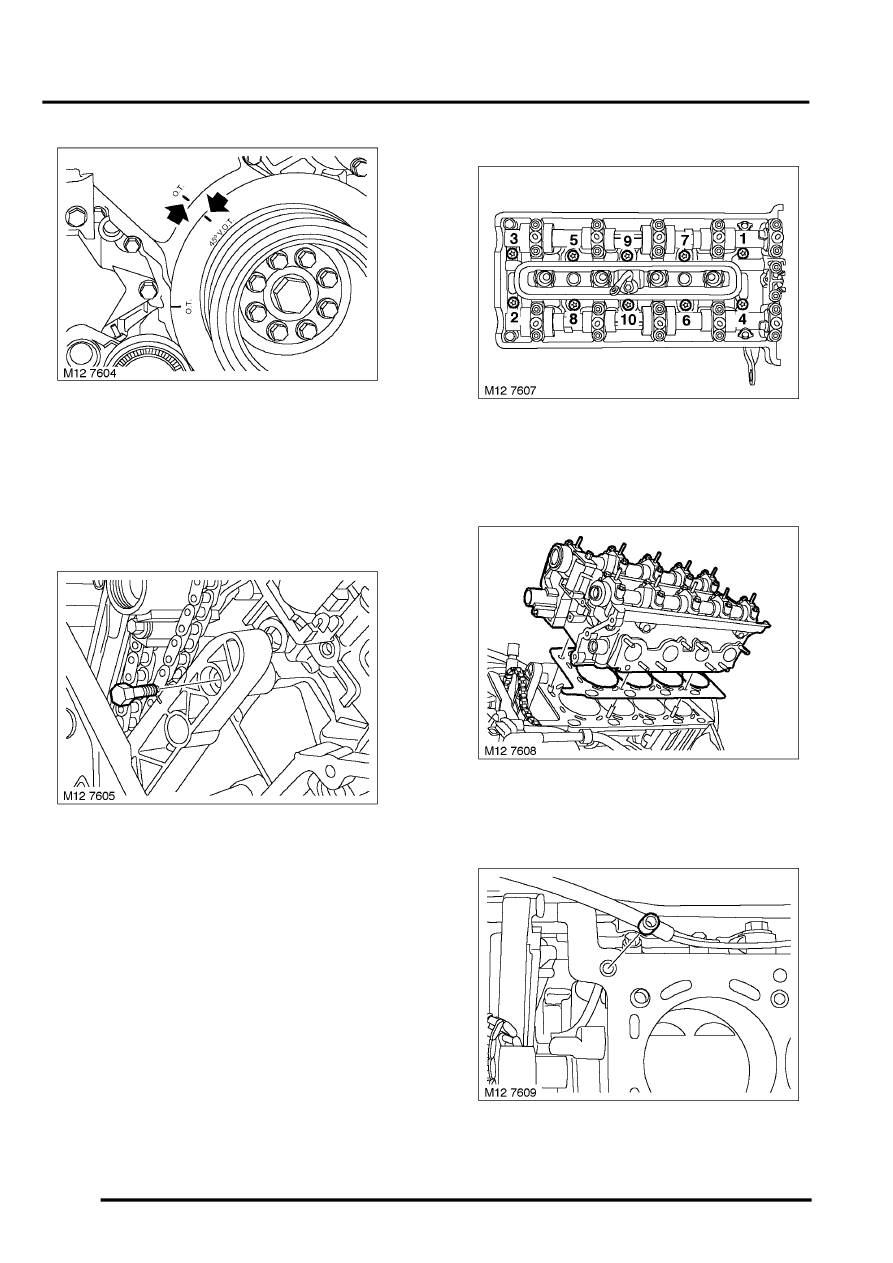

Gasket - cylinder head (page 2 of 4)

ENGINE - V8

12-2-86 OVERHAUL

5. Rotate engine crankshaft pulley anti-clockwise

to align the 45

°

 before TDC timing mark.

NOTE: Raise timing chain and hold under
tension while turning crankshaft pulley.

6. Remove LRT-12-223/6, LRT-12-223/5, LRT-

12-223/3 and LRT-12-223/4 from LH cylinder
head camshafts.

7. Remove bolt securing LH timing chain guide

rail to LH cylinder head.

Disassembly

1. Working in the sequence shown, progressively

loosen 10 cylinder head bolts.

2. Discard 10 cylinder head bolts and remove 10

cylinder head bolt washers.

3. With assistance, remove cylinder head

assembly.

4. Discard cylinder head gasket.

5. Discard 'O' ring from cylinder block to LH

cylinder head mating face.
