Gasket(s) - induction manifold

ENGINE - V8

OVERHAUL 12-2-115

Reassembly

1. Lubricate new 'O' rings with rubber grease and

fit to grooves in coolant pump and coolant
manifold.

2. Fit coolant pipes to the coolant pump.
3. Position new gaskets and coolant manifold to

cylinder heads, fit bolts and tighten to 10 Nm (7
lbf.ft).

Refit

1. Fit induction manifold.

 +

 Engine - V8, OVERHAUL, Gasket(s)

- induction manifold.

Gasket(s) - induction manifold

$% 30.15.08.01

Disassembly

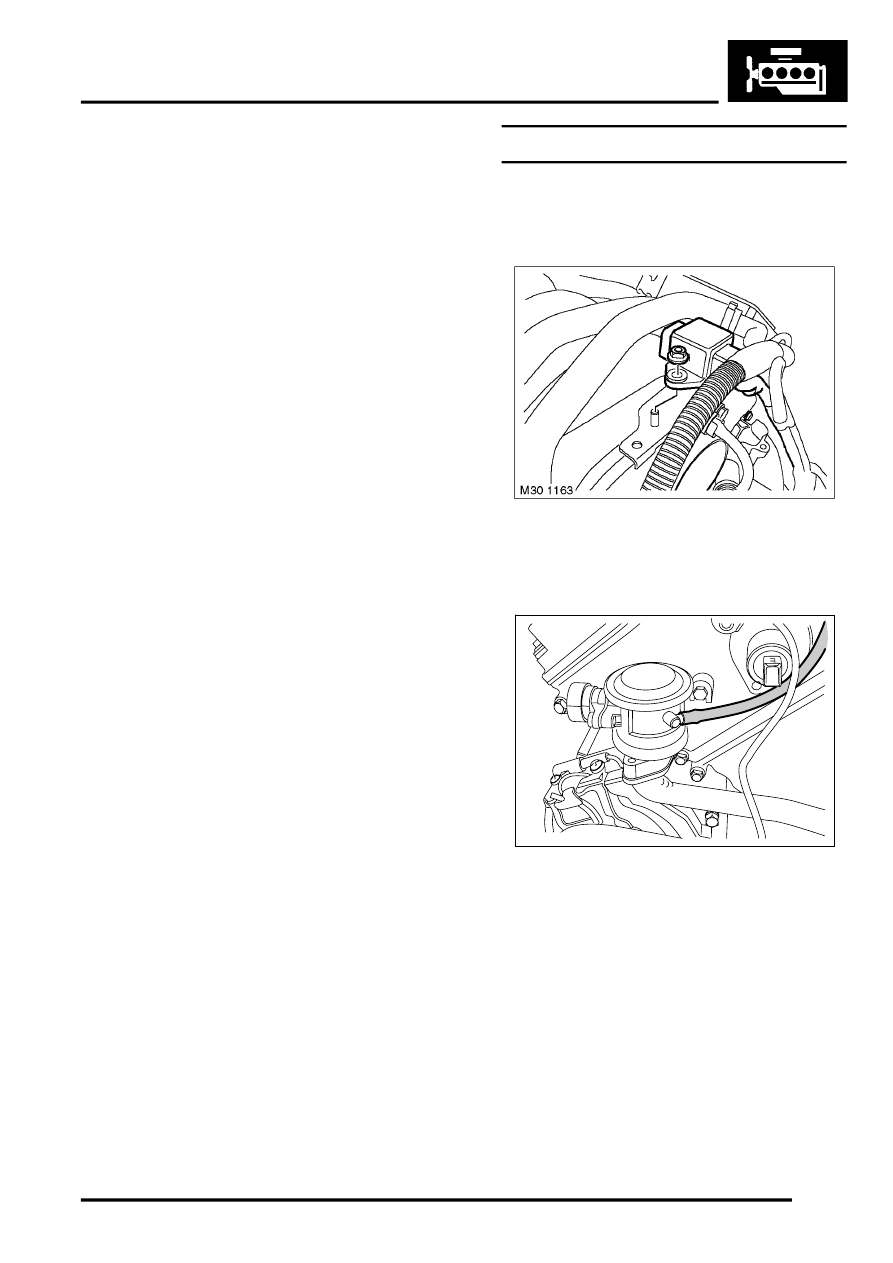

1. Remove nut securing positive terminal to

bracket on inlet manifold and release terminal
from bracket.

2. Disconnect vacuum hose from secondary air

injection (SAI) control valve.

CAUTION: Always fit plugs to open
connections to prevent contamination.

M30 1164
