Cover - Ignition coils - RH

ENGINE MANAGEMENT SYSTEM - V8

18-2-4

REPAIRS

Cover - Ignition coils - RH

$% 18.20.53

Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.


 +

 GENERAL INFORMATION, Electrical

Precautions.

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover.

 +

 Engine - V8, REPAIRS, Acoustic

cover - engine.

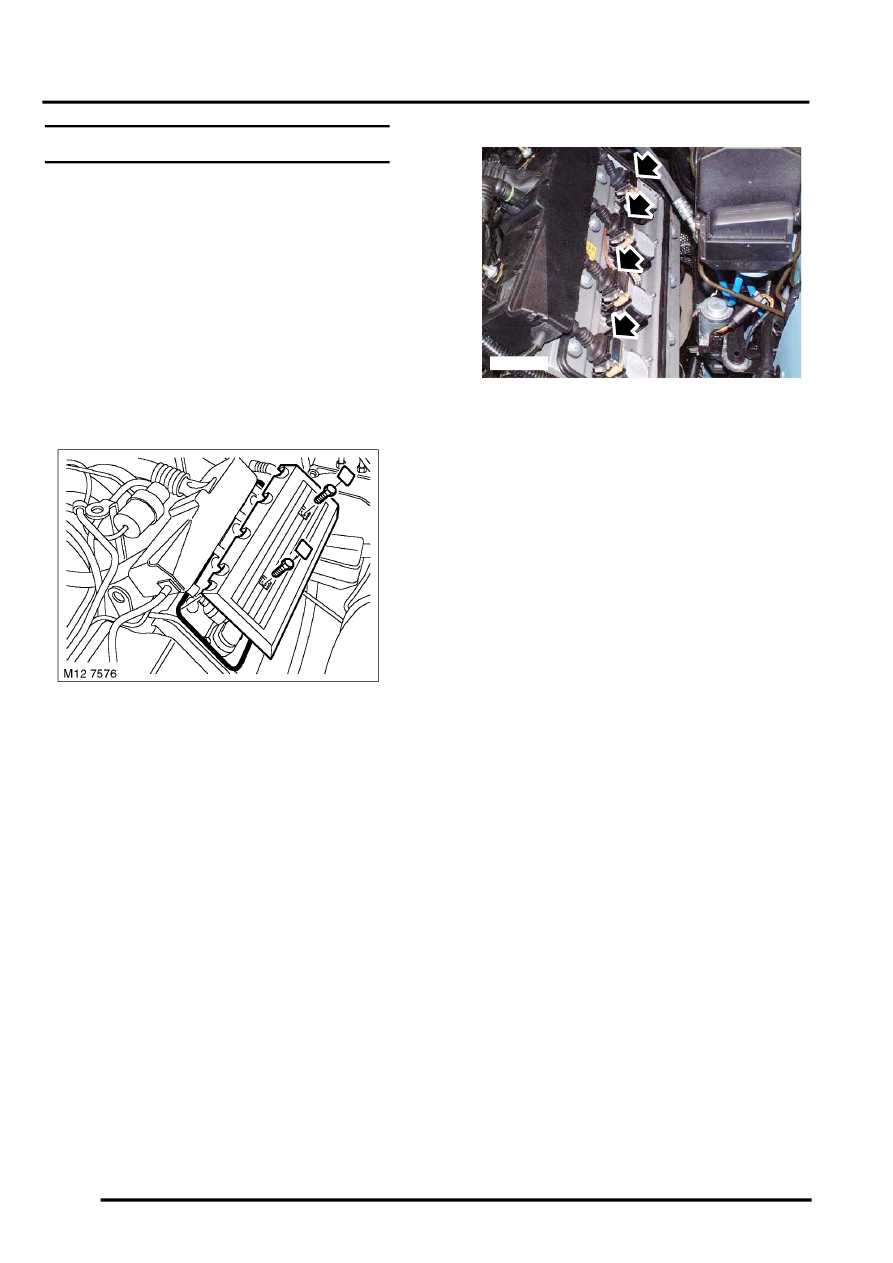

3. Remove 2 access covers from ignition coil

cover.

4. Remove 2 bolts securing ignition coil cover to

camshaft cover.

5. Remove RH ignition coil cover.
6. Remove 2 bolt spacers from ignition coil cover.

NOTE: Do not carry out further dismantling if
component is removed for access only.

7. Remove nut and disconnect earth lead from

camshaft cover.

8. Disconnect multiplugs from ignition coils.
9. Discard ignition coil cover gasket.

Refit

1. Fit new ignition coil cover gasket.
2. Connect multiplugs to ignition coils.
3. Connect earth lead to camshaft cover and

tighten nut to 4 Nm (3 lbf.ft).

4. Fit 2 bolt spacers to ignition coil cover.
5. Fit ignition coil cover, fit and tighten 2 bolts.
6. Fit 2 access covers to ignition coil cover.
7. Fit engine acoustic cover.

 +

 Engine - V8, REPAIRS, Acoustic

cover - engine.
