Drive shaft - front - LH (page 2 of 3)

DRIVESHAFTS

47-2

REPAIRS

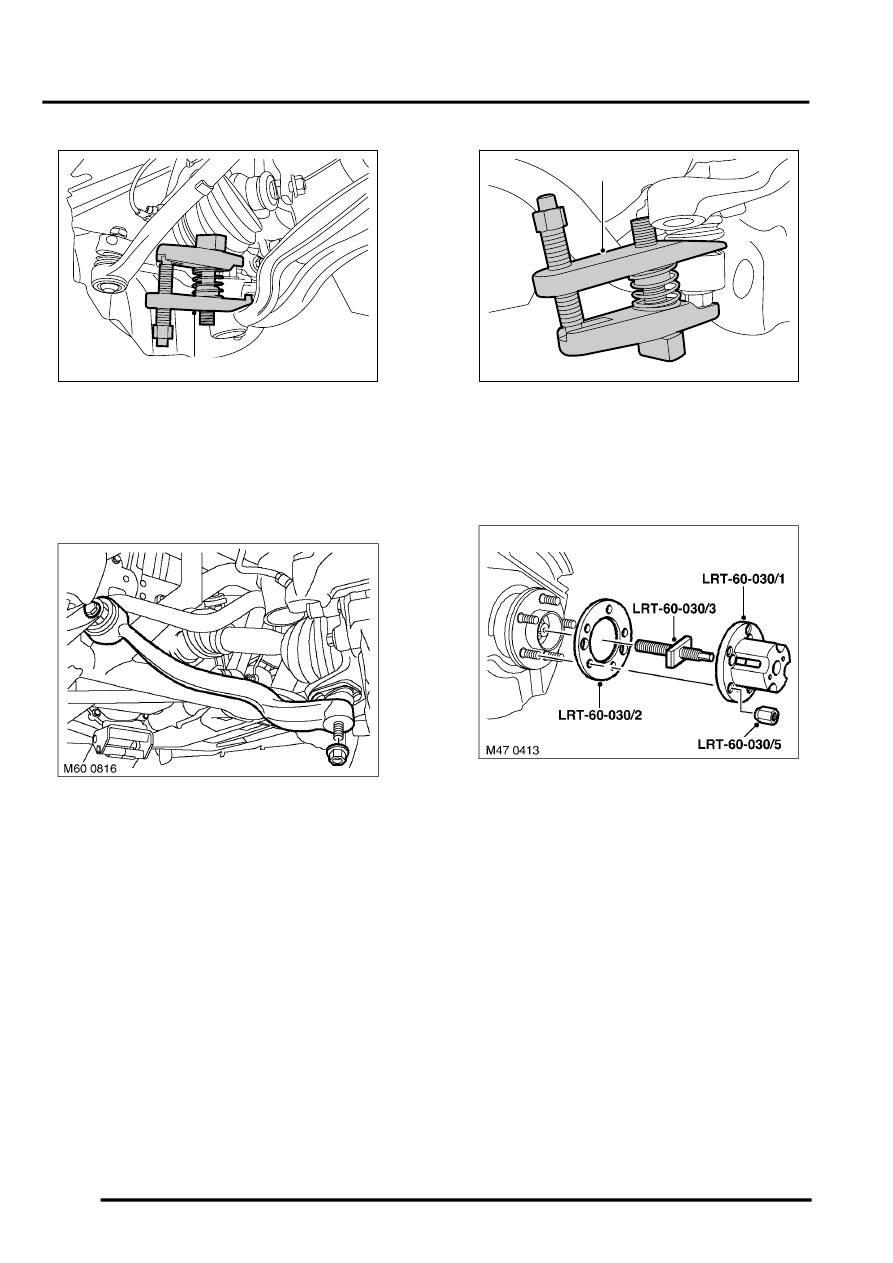

14. Using LRT-54-027 release lower arm ball joint

and disconnect lower arm from hub.

CAUTION: Ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.

15. Loosen bolt securing tie rod to subframe one

quarter of a turn.

16. Remove nut securing tie rod to ball joint.

17. Using LRT-54-027 release tie rod from ball joint

CAUTION: Ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.

18. Fit centre screw LRT-60-030/3 to LRT-60-030/

1 and fit to hub with spacer LRT-60-030/2.
Secure with nuts LRT-60-030/5.

19. Tighten centre screw to press drive shaft from

flange.

20. Remove tools.
21. Position container to collect oil spillage.

M60 0789

LRT -54-027

M60 0787

LRT -54-027
