Trim casing - front door (page 2 of 3)

DOORS

REPAIRS

76-1-9

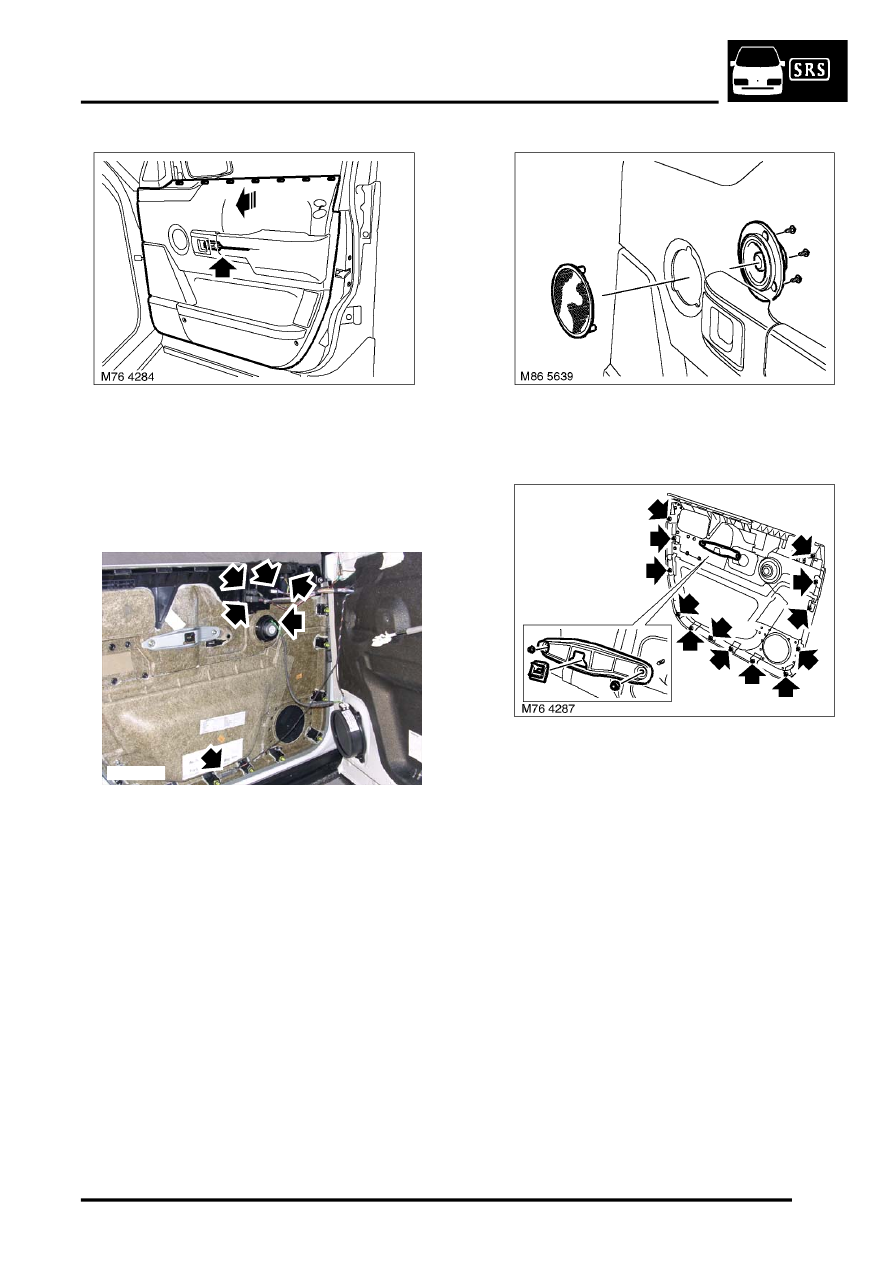

5.  Pull trim casing horizontally from 7 clips

securing the upper edge to inner glass seal,
avoid damage to the locking button on final
release.

6. Release door operating cable from door casing

and move aside.

7. Disconnect 6 multiplugs from door harness and

remove trim casing.

NOTE: Do not carry out further dismantling if
component is removed for access only.

8. Remove 3 Torx screws securing speaker to

trim casing and remove speaker

9. Remove 13 clips from door casing.

10. Remove retaining clip from door handle

reinforcement bracket.

11. Remove 2 nuts securing door handle

reinforcement bracket. Remove bracket.

M76 4286
