Relay - heated rear screen

CONTROL UNITS AND RELAYS

86-3-2

REPAIRS

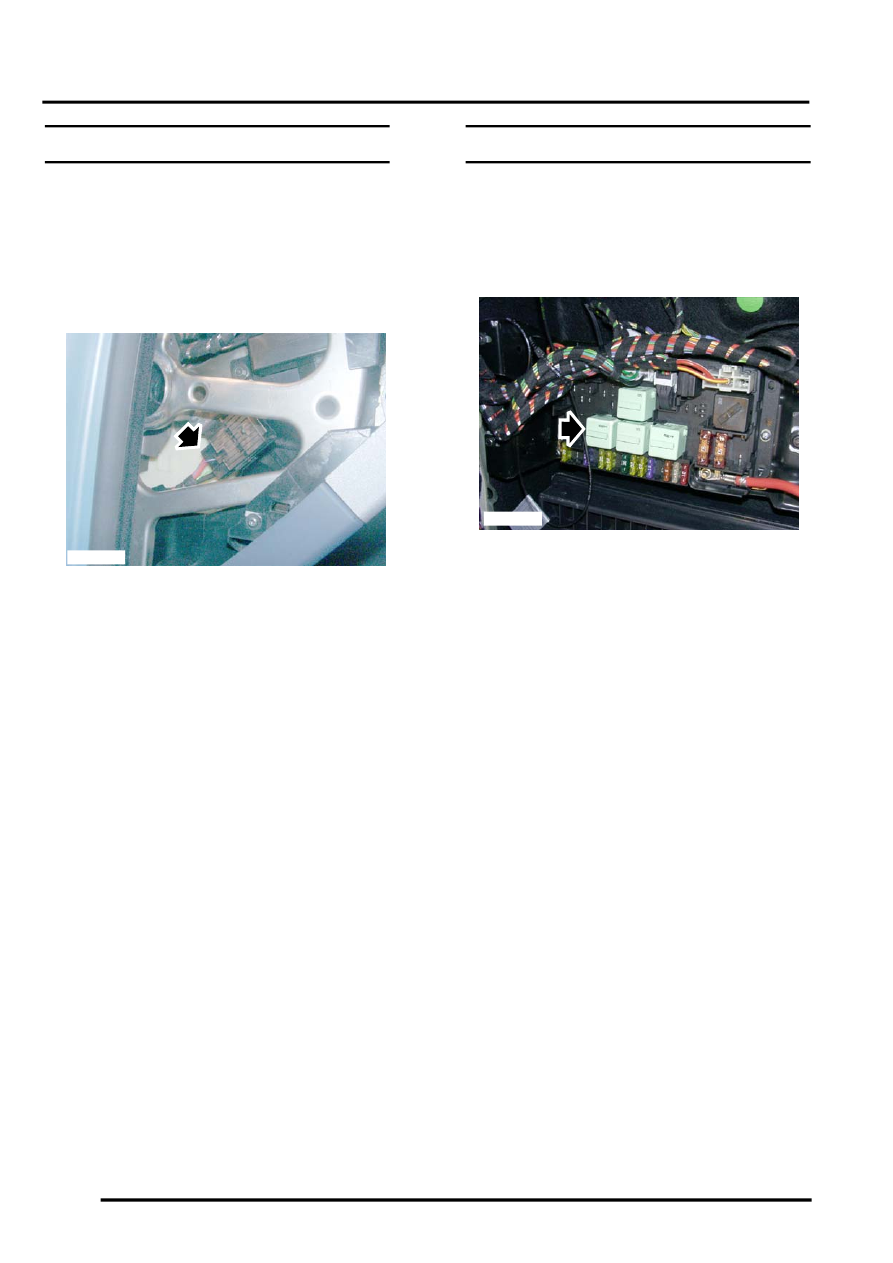

Relay - heated front screen

$% 86.55.18

Remove

1. Remove passenger side end closing panel

from fascia.


 +

 INTERIOR FITTINGS, REPAIRS,

Closing panel - fascia end.

2. Rotate relay holder anti-clockwise to release for

access.

3. Remove heated front screen relay from holder.

Refit

1. Fit and secure heated front screen relay to

holder.

2. Fit closing panel.

 +

 INTERIOR FITTINGS, REPAIRS,

Closing panel - fascia end.

3. Fit end closing panel to fascia.

 +

 INTERIOR FITTINGS, REPAIRS,

Closing panel - fascia end.

Relay - heated rear screen

$% 86.55.19

Remove

1. Remove access panel from load space RH trim

casing.

2. Identify and remove relay.

Refit

1. Fit relay.
2. Fit access panel.

M86 5880

M86 5815
