Fluid seal - selector shaft

AUTOMATIC TRANSMISSION - ZF 5HP24

44-2-6

REPAIRS

Fluid seal - selector shaft

$% 44.15.34

Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.


 +

 GENERAL INFORMATION, Electrical

Precautions.

Remove

1. Position vehicle on lift.
2. Disconnect battery earth lead.

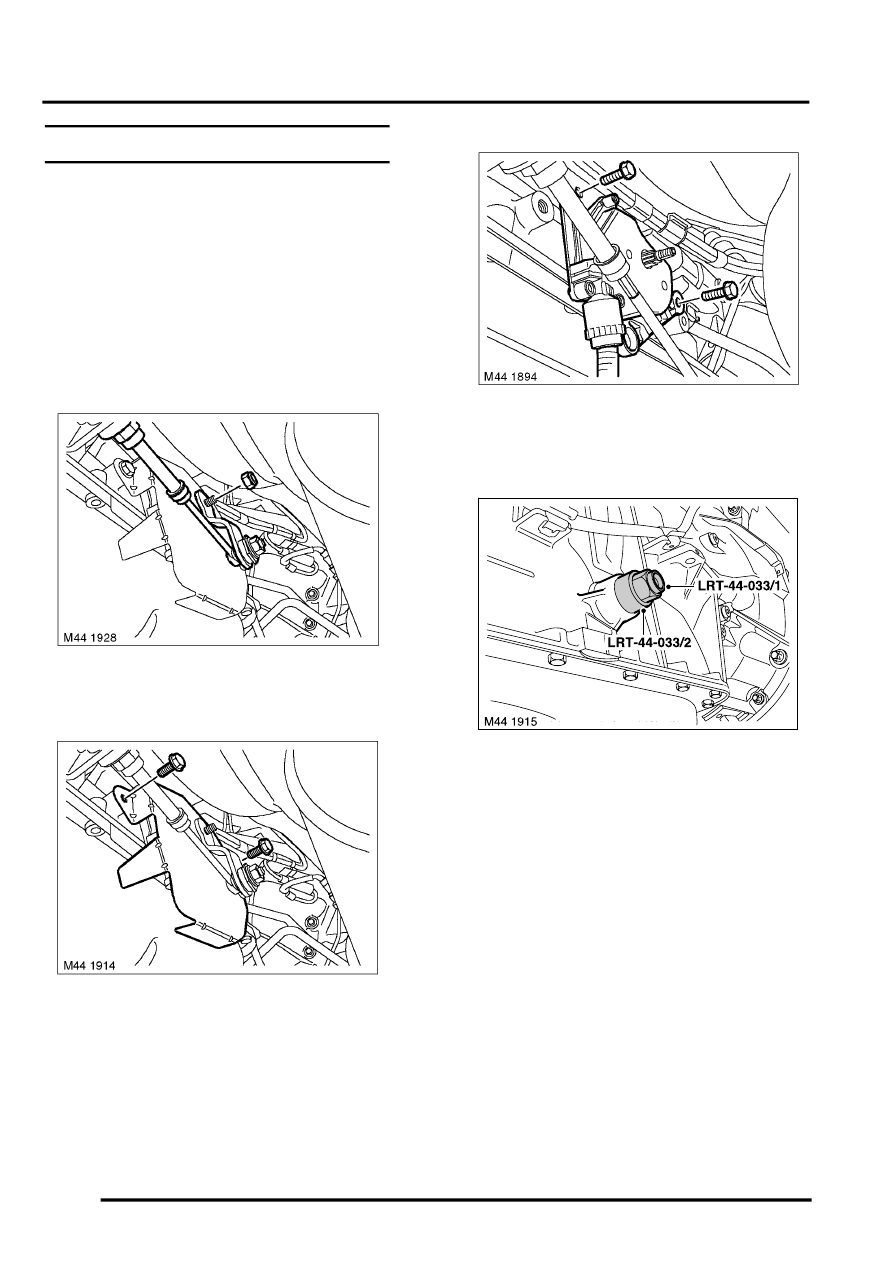

3. Remove nut securing selector lever to selector

shaft and release lever.

4. Remove 2 bolts securing inhibitor switch guard

and remove guard.

5. Remove 2 bolts securing inhibitor switch to

gearbox and remove inhibitor switch from
selector shaft.

6. Position LRT-44-033/2 to seal recess and fit

LRT-44-033/1 to LRT-44-033/2. Tighten LRT-
44-033/1 and remove selector shaft oil seal.

Refit

1. Clean selector shaft and seal recess.
