Steering Column (page 6 of 8)

STEERING

DESCRIPTION AND OPERATION

57-15

The steering column lock comprises a locking motor, locking bolt and a safety release solenoid actuator. The actuator
is required to hold the locking bolt in the unlocked position in the event of power loss during operation. The locking
motor drives a cam which moves the locking bolt into and out of engagement with the locking sleeve on the steering
column. The locking motor is fitted with a Hall effect sensor which informs the steering lock ECU of the position
(locked/unlocked) of the steering lock mechanism.

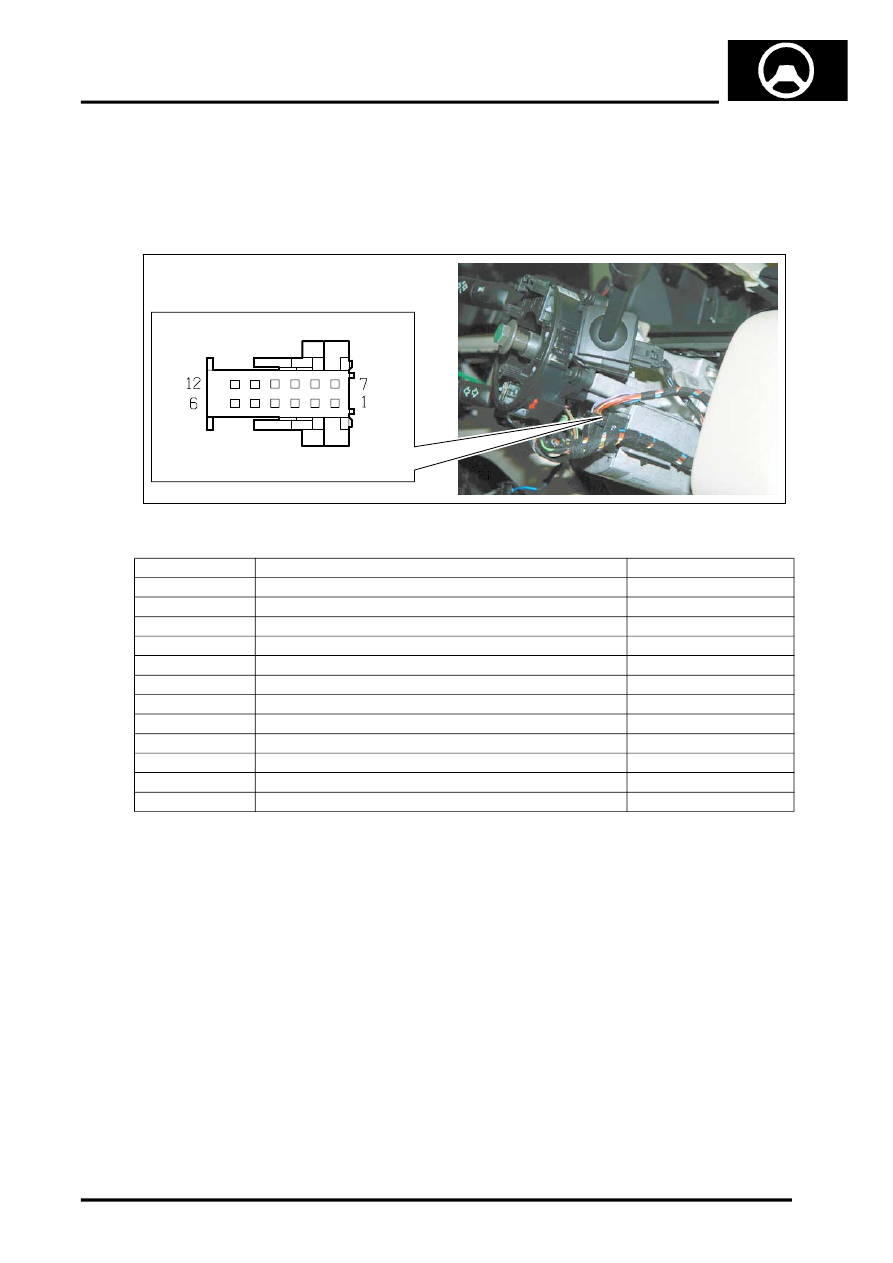

Steering Lock ECU Harness Connector

Steering Lock ECU Harness Connector C2055 Pin Details

Pin No.

Description

Input/Output

1

Ignition switch lock solenoid actuator

Output

2

Ignition switch detection of rotation

Input

3

Transmission selector lever Park/Neutral signal

Input

4

Not used

–

5

Transmission selector lever Park/Neutral signal

Output

6

Ignition switch detection of rotation voltage

Output

7

Battery power supply

Input

8

K-bus

Input/Output

9

Road speed

Input

10

Ignition power supply

Input

11

Auxiliary power supply

Input

12

Ground

Input

M57 1198

C2055
