STEERINGSteering Column · page 1 of 8
STEERING
57-10
DESCRIPTION AND OPERATION

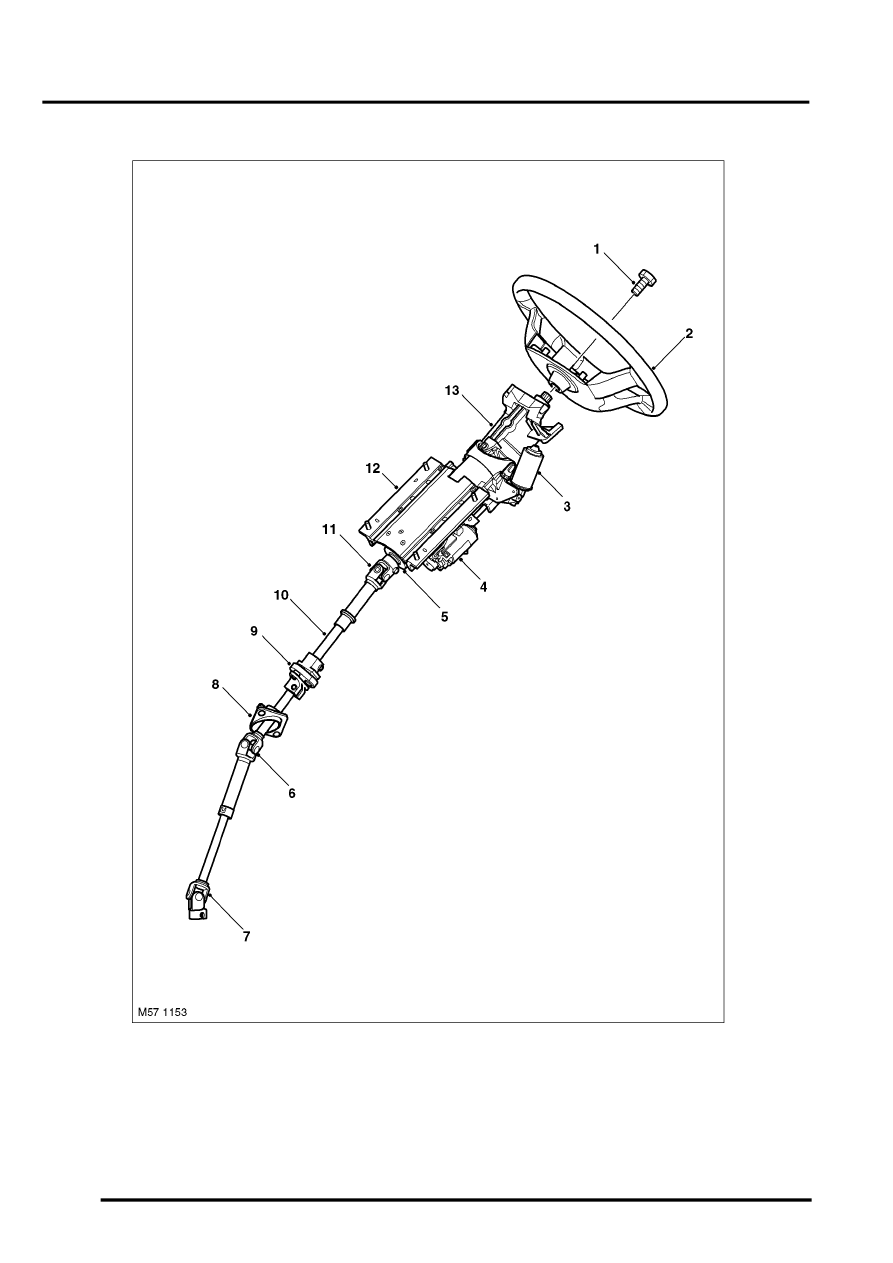

Steering Column
1 Bolt – Flanged
2 Steering wheel
3 Column adjustment motor – tilt
4 Column adjustment motor – reach
5 Steering angle sensor
6 Lower column – upper shaft
7 Lower column – lower shaft
8 Bulkhead mounting
9 Flexible coupling
10 Upper column – lower shaft
11 Upper column – upper shaft
12 Adjustable upper column
13 Lock housing/Tilt head
