STEERING

57-14

DESCRIPTION AND OPERATION

Column Electronic Steering Lock
With the ignition switch located in the centre console, a conventional steering lock mechanism cannot be used. An
electronic system was designed which comprises an ignition switch assembly with a position switch and anti-rotational
lock and a steering column assembly locking unit with integrated steering lock ECU.

The upper steering column assembly houses the column lock mechanism and ECU. The components are assembled
with non-removable pins and is therefore non-serviceable. Failure of any steering lock components will require
replacement of the upper steering column assembly.

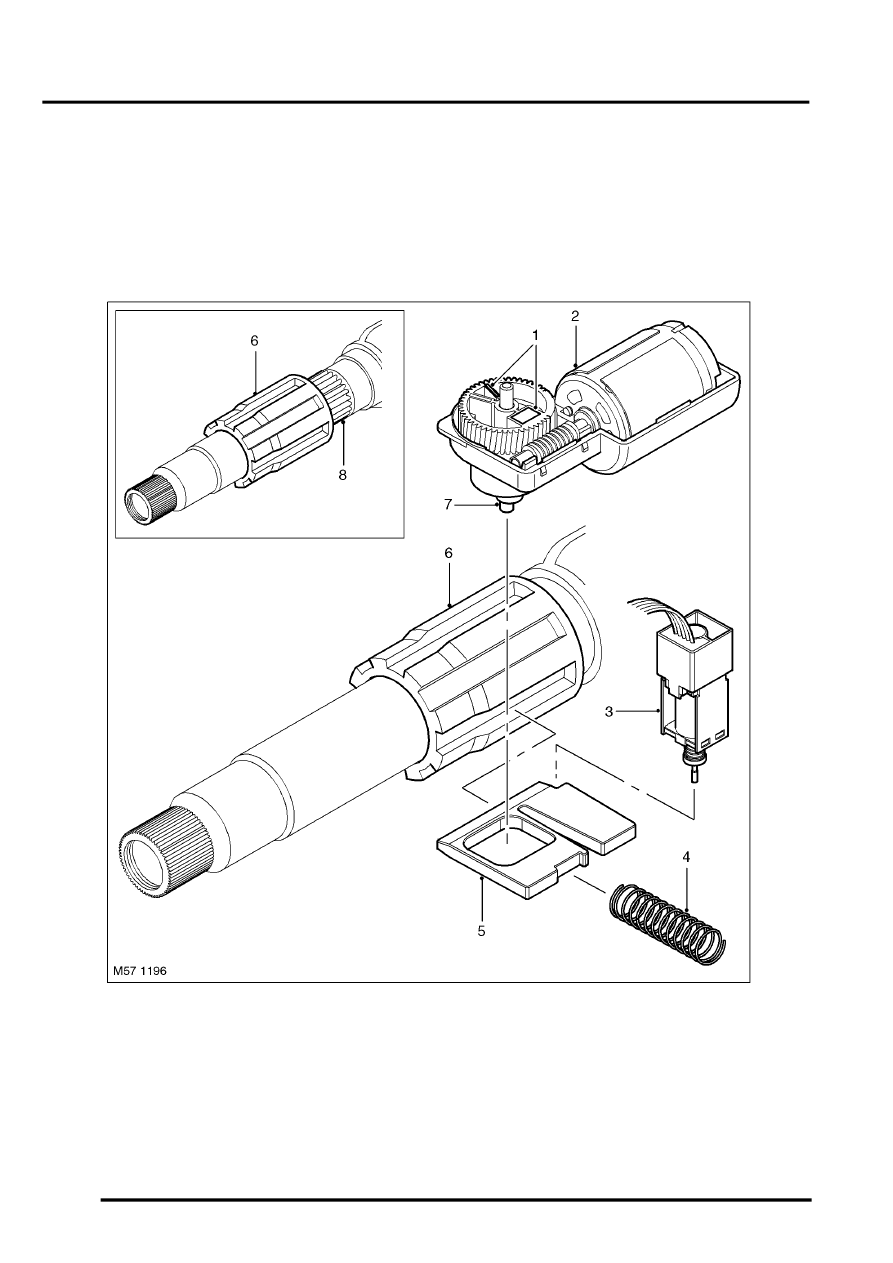

Steering Lock

1 Hall effect sensor targets
2 Locking motor
3 Safety release solenoid actuator
4 Spring

5 Locking bolt
6 Locking sleeve
7 Cam
8 Tolerance ring
