Sub frame

REAR SUSPENSION

REPAIRS

64-13

Sub frame

$% 64.35.78

Remove

1. Remove both drive shafts.

 +

 DRIVESHAFTS, REPAIRS, Shaft

with both joints - LH.


 +

 DRIVESHAFTS, REPAIRS, Shaft

with both joints - RH.

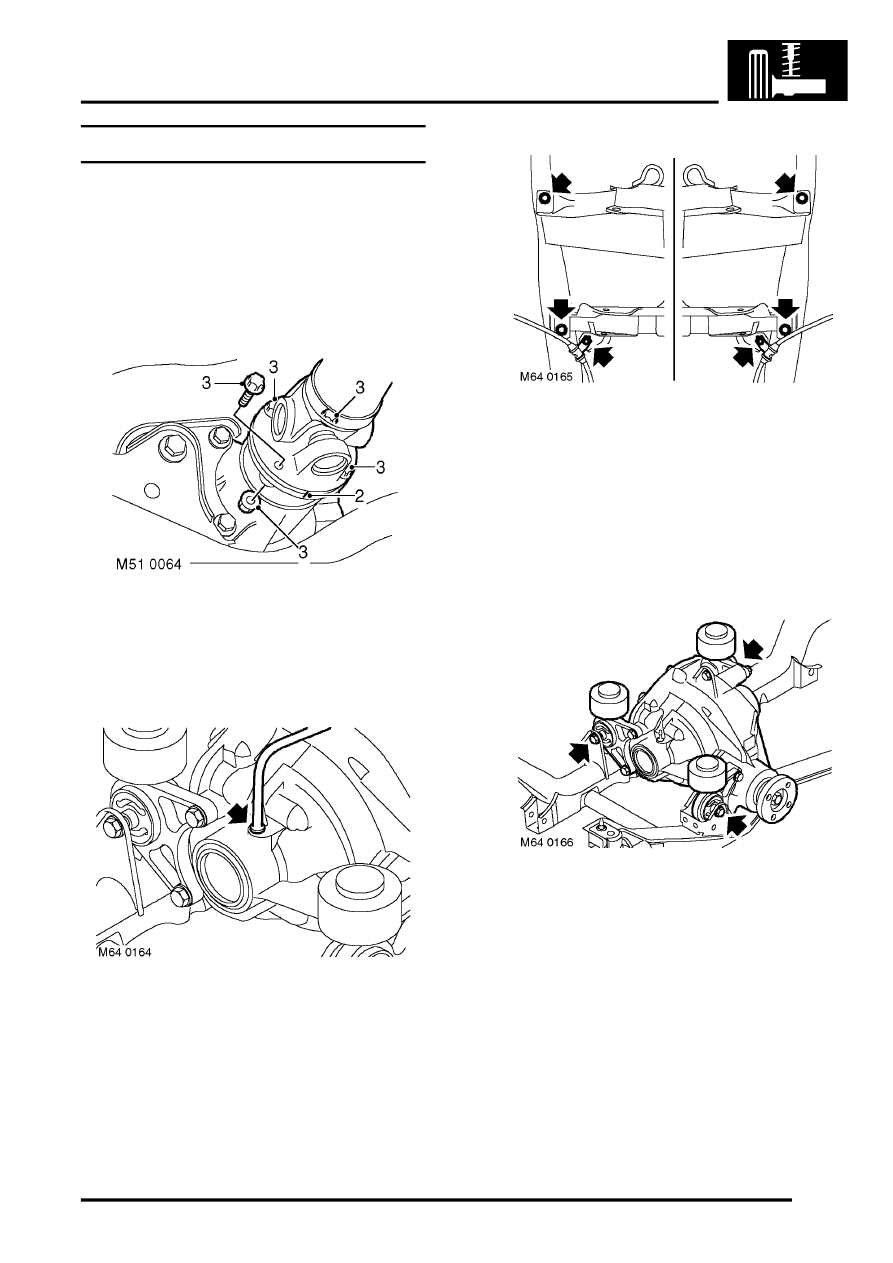

2. Reference mark rear propeller shaft for

reassembly.

3. Remove 4 nuts and bolts securing propeller

shaft to differential. Release propeller shaft and
tie aside.

4. Depress red locking collar and disconnect

breather pipe from differential casing.

5. Support the weight of the subframe assembly

on a jack.

6. Remove 2 bolts securing handbrake cable clips

to subframe.

7. Remove 4 bolts securing subframe to body.
8. With assistance lower jack, manoeuvre

subframe around exhaust and remove from
vehicle.

NOTE: Do not carry out further dismantling if
component is removed for access only.

9. Remove 3 bolts securing differential mountings

to subframe and remove differential assembly.
