Bush - differential mounting - rear

REAR AXLE & FINAL DRIVE

51-4

REPAIRS

Bush - differential mounting - rear

$% 51.15.44

Remove

1. Raise rear of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

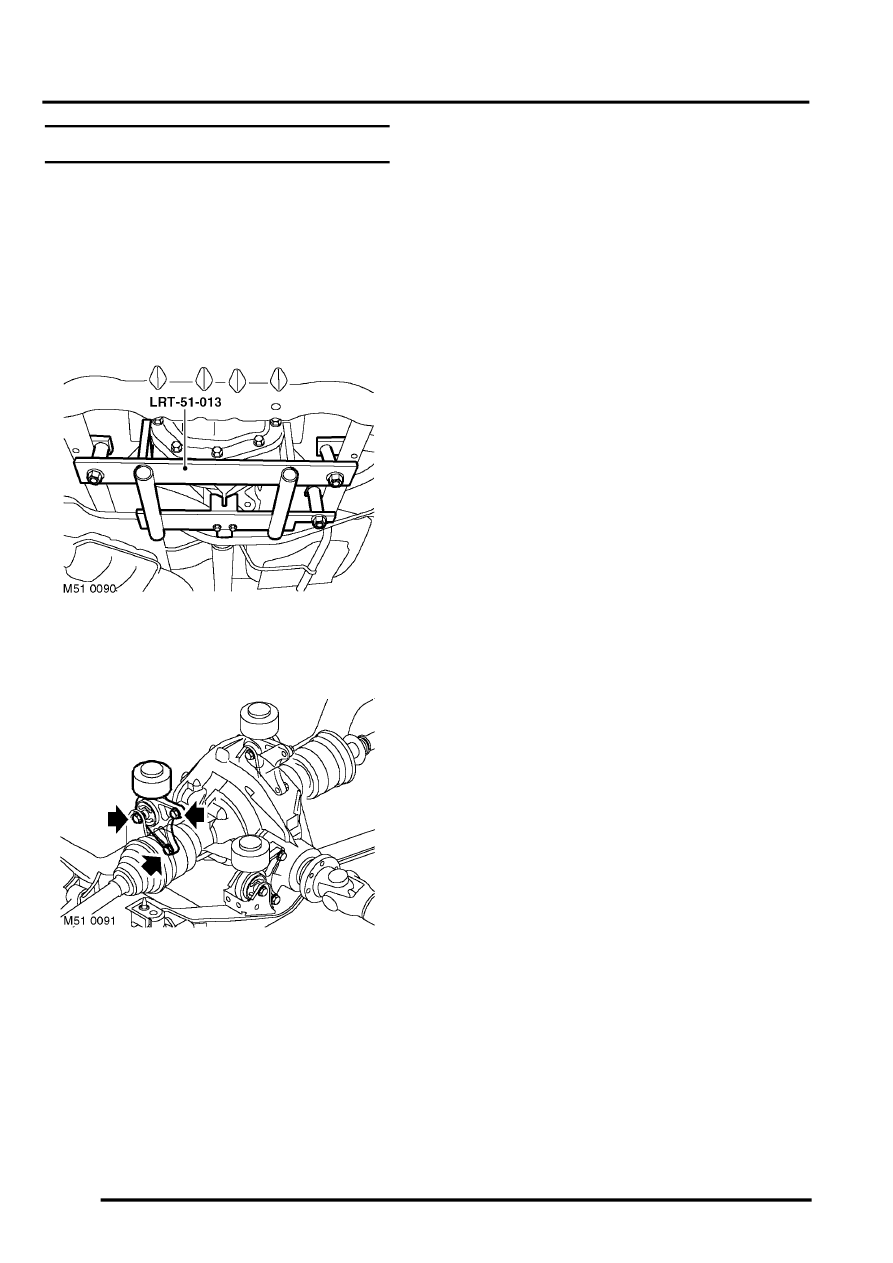

2. Position centralising jig LRT-51-013 to align

differential assembly.

3. Remove bolt securing differential mounting to

subframe.

4. Remove 2 bolts securing mounting to

differential.

5. Remove mounting.

Refit

1. Position differential mounting.
2. Fit bolts securing mounting to differential and

tighten to 65 Nm (48 lbf.ft).

3. Fit bolt securing mounting to subframe  and

tighten to 120 Nm (89 lbf.ft).

4. Remove LRT-51-013.
5. Remove stands and lower vehicle.
