Bush - differential mounting - front

REAR AXLE & FINAL DRIVE

REPAIRS

51-3

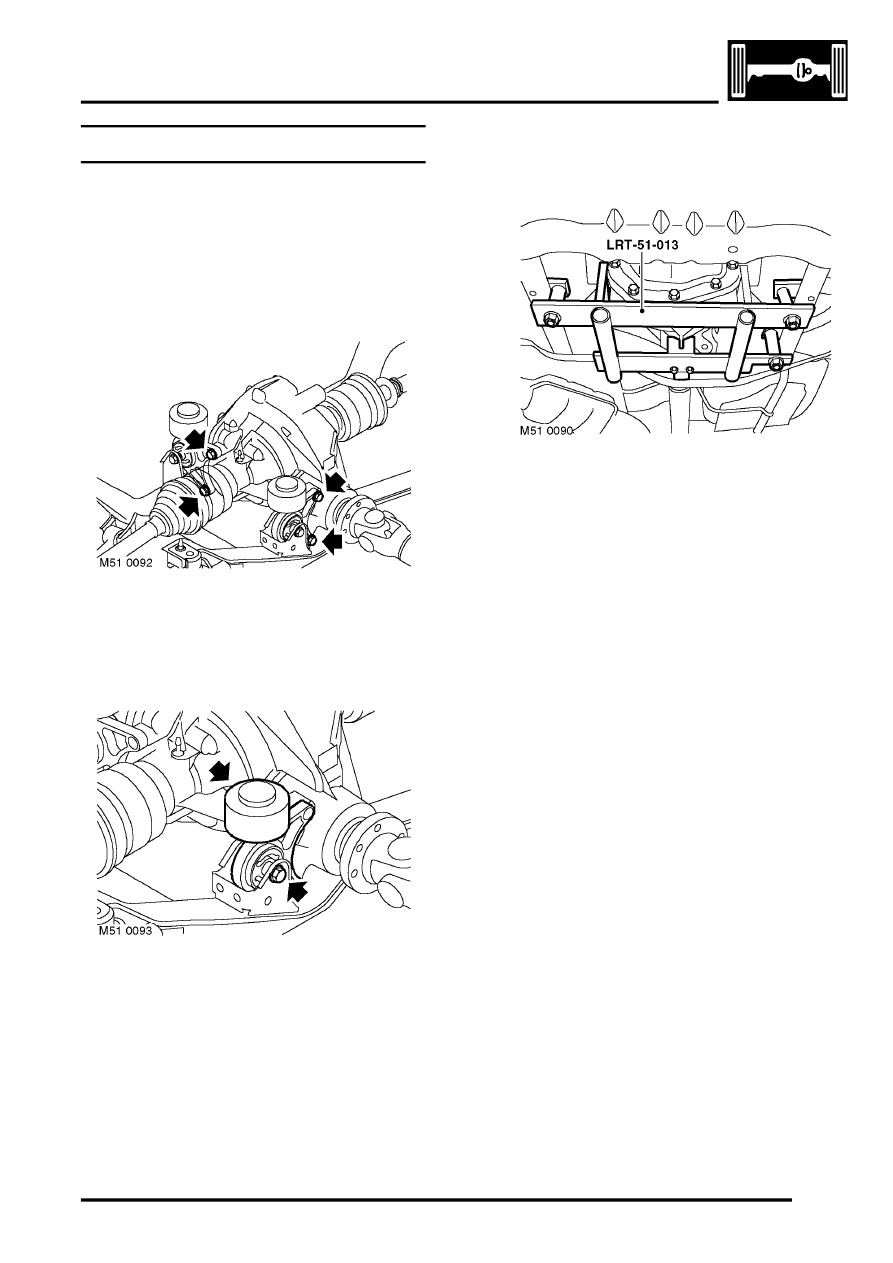

Bush - differential mounting - front

$% 51.15.43

Remove

1. Remove LH mounting.

 +

 REAR AXLE & FINAL DRIVE,

REPAIRS, Bush - differential mounting -
rear.

2. Remove 2 bolts securing RH mounting to

differential.

3. Remove 2 bolts securing front mounting to

differential.

4. Remove bolt securing front mounting

subframe.

5. Ease differential away from front mounting and

remove front mounting.

Refit

1. Ease differential away from front mounting and

fit front mounting.

2. Ensure differential is correctly located in LRT-

51-013.

3. Fit bolt securing mounting to subframe  and

tighten to 120 Nm (89 lbf.ft).

4. Fit bolts securing front mounting to differential

and tighten to 65 Nm (48 lbf.ft).

5. Tighten RH mounting bolts to 65 Nm (48 lbf.ft).
6. Fit LH mounting.

 +

 REAR AXLE & FINAL DRIVE,

REPAIRS, Bush - differential mounting -
rear.
