INTERMEDIATE REDUCTION DRIVEIntermediate reduction drive (IRD) unit - Td4 · page 3 of 4
INTERMEDIATE REDUCTION DRIVE
REPAIRS
41-5

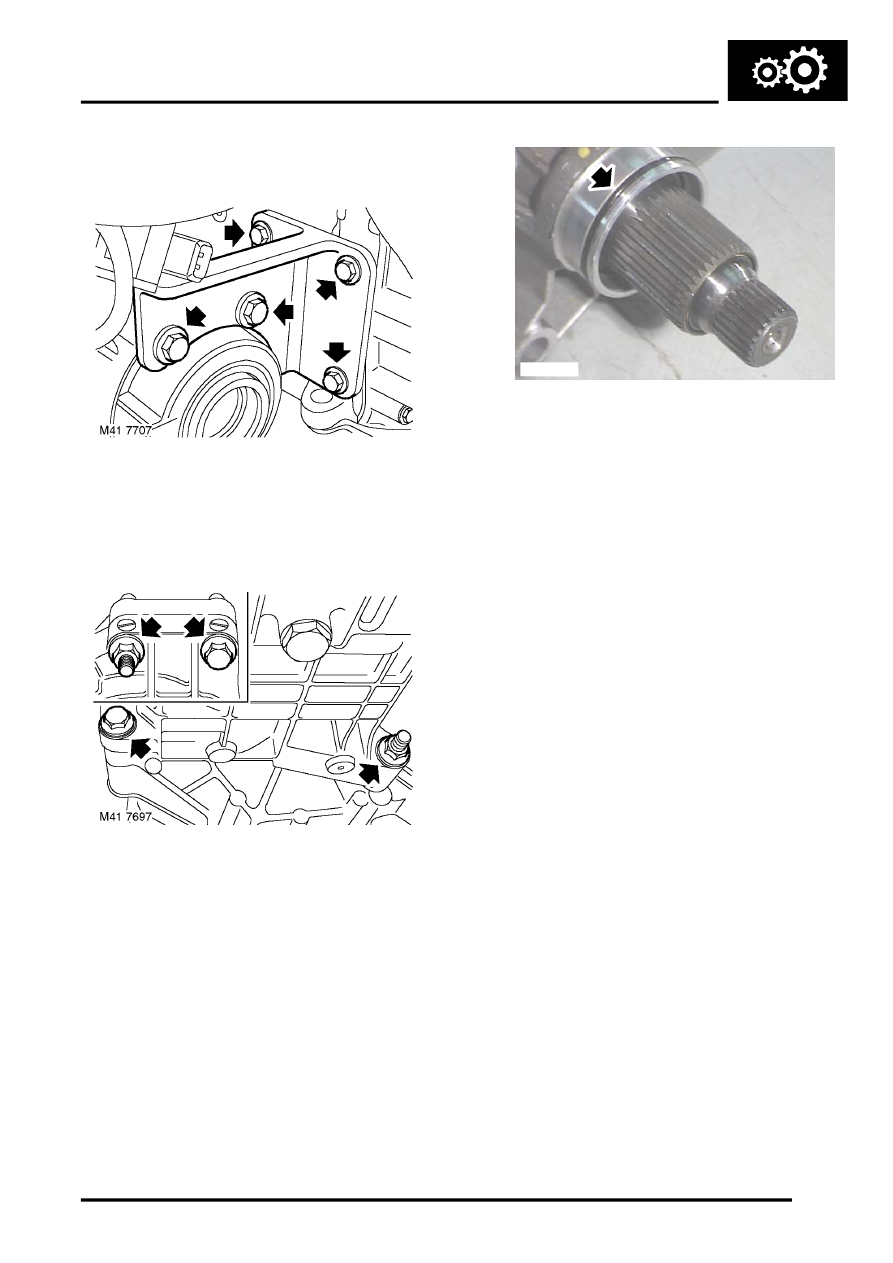

21. Remove 2 bolts securing support bracket to
IRD.
22. Remove support bracket.
23. Remove 3 bolts, securing IRD upper support
bracket to cylinder block.
24. Remove 2 bolts securing upper support bracket
to IRD.
25. Remove IRD upper support bracket.
26. Remove 4 bolts securing IRD.
27. With assistance, release IRD from gearbox and
remove.
28. Remove and discard 'O' ring from IRD.
M41 7698
