Intermediate reduction drive (IRD) unit - Td4

INTERMEDIATE REDUCTION DRIVE

REPAIRS

41-3

REPAIRS

Intermediate reduction drive (IRD) unit -
Td4

$% 41.25.01.99

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

3. Remove rear beam.

 +

 FRONT SUSPENSION, REPAIRS,

Rear beam.

4. Remove exhaust front pipe.

 +

 MANIFOLDS & EXHAUST SYSTEMS

- Td4, REPAIRS, Exhaust pipe - front.

5. Drain fluid from IRD.

 +

 INTERMEDIATE REDUCTION

DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) fluid - drain & refill -
Non NAS.

6. Drain gearbox fluid.

 +

 MANUAL GEARBOX - GETRAG,

ADJUSTMENTS, Gearbox oil - drain and
refill.


 +

 AUTOMATIC GEARBOX - JATCO,

ADJUSTMENTS, Gearbox fluid - drain &
refill.

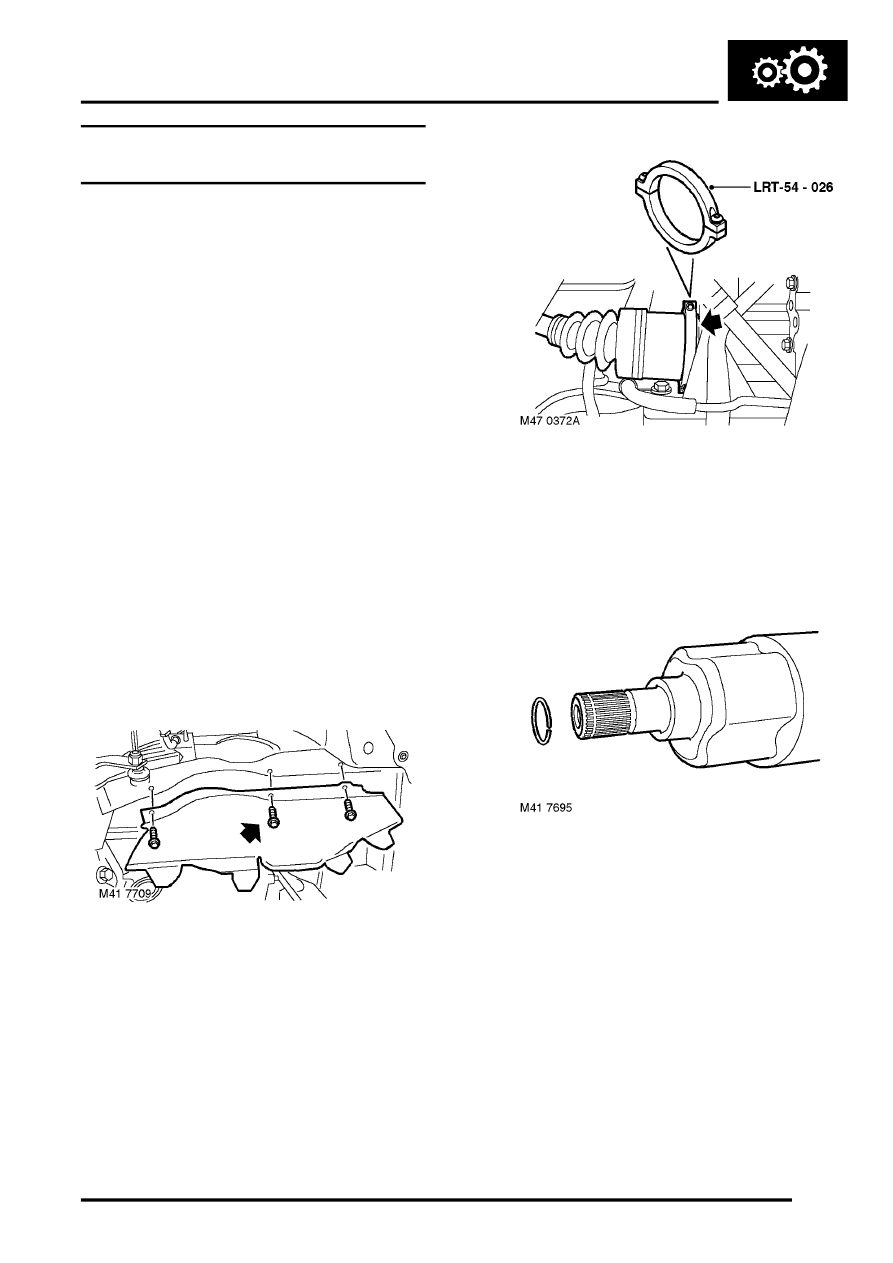

7. Remove 3 bolts securing RH splash shield to

body and remove shield.

8. Secure  LRT-54-026 to drive shaft inboard joint.

Using a suitable lever, release drive shaft from
IRD.

9. With assistance, pull hub outwards and release

drive shaft from IRD.

10. Remove and discard drive shaft circlip.
11. Reference mark front propeller shaft for

reassembly.

12. Raise one rear wheel for rotation of propeller

shaft to access bolts.
