Air cleaner - K1.8

FUEL DELIVERY SYSTEM - PETROL

REPAIRS

19-2-7

REPAIRS

Air cleaner - K1.8

$% 19.10.01

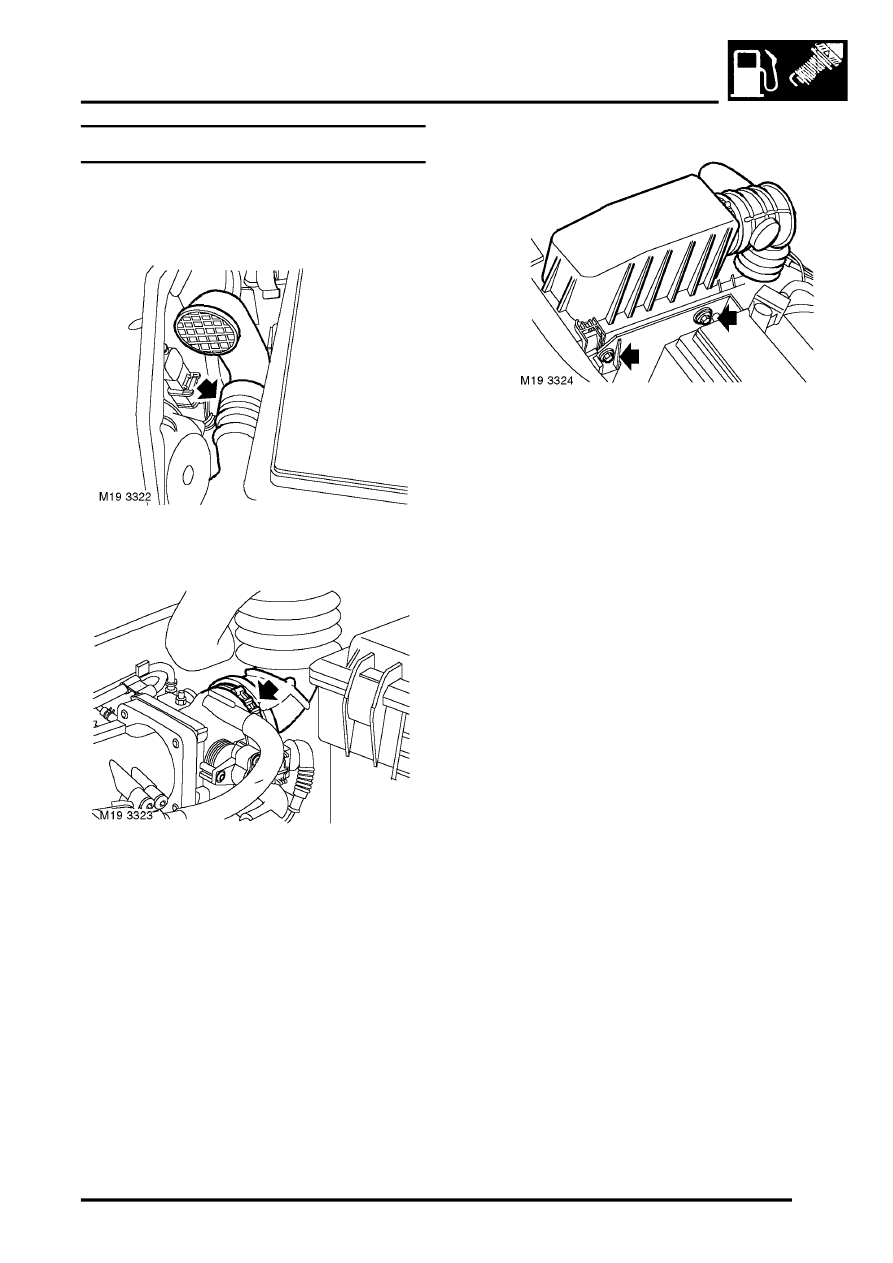

Remove

1. Release air intake duct from air cleaner.

2. Remove clip and disconnect air intake hose

from throttle housing.

3. Remove 2 bolts securing air cleaner to battery

tray.

4. Remove air cleaner assembly.

Refit

1. Position air cleaner assembly.

NOTE: Ensure bottom of air cleaner is located
on peg.

2. Fit bolts and tighten to 9 Nm (7 lbf.ft).
3. Connect air intake hose to throttle housing and

secure with clip.

4. Connect air intake duct to air cleaner.
