Bumper valance - rear - from 04MY (page 3 of 3)

EXTERIOR FITTINGS

REPAIRS 76-2-15

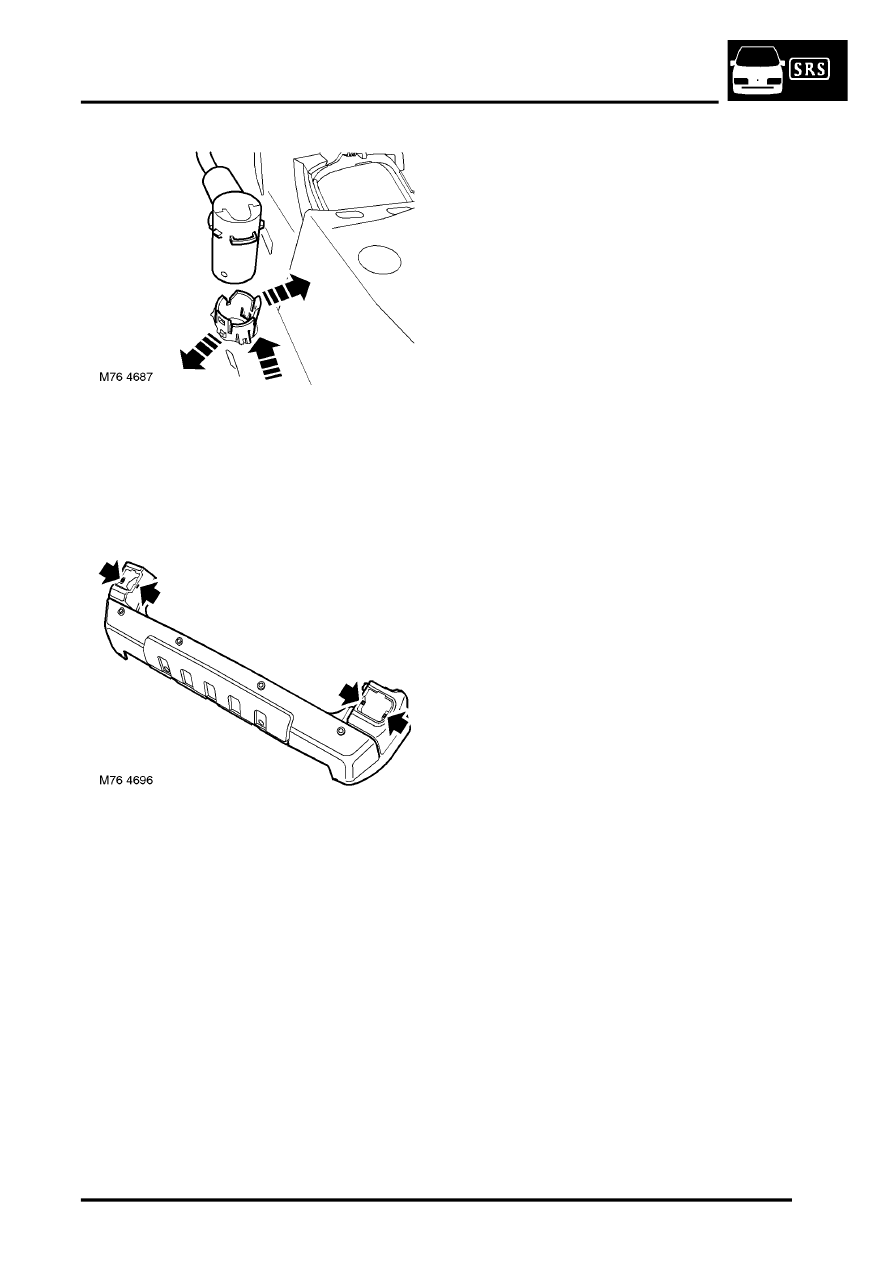

17. Release 2 retaining clips and remove parking

aid sensor from finisher.

18. Remove parking aid sensor finisher from

bumper valance.

19. Repeat above procedure for remaining 3

parking aid sensors.

20. Remove tail lamp speed nuts from bumper

valance.

Refit

1. Fit tail lamp speed nuts to bumper valance.
2. Fit and secure parking aid finishers and

sensors to bumper valance.

3. Fit and secure parking aid harness to sensors

and bumpers valance.

4. Fit both rear tail lamps.



 +

 LIGHTING, REPAIRS, Lamp

assembly - tail.

5. With assistance, position bumper valance to

body.

6. Connect parking aid harness multiplug, fit

retaining clip and secure to body.

7. Align bumper valance to body and secure with

retaining screws and scrivets.

8. Fit Torx screws securing bumper valance to

bumper armature and tighten to 5 Nm (3.7
lbf.ft).

9. Fit tailgate aperture seal to body.

10. Fit luggage compartment carpet retainer and

secure with Torx screws.

11. Fit both mud flap retaining brackets and secure

with screws.

12. Fit rear wheel arch extensions.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wheelarch extension - rear wing part.

13. Fit both rear fog lamps.



 +

 LIGHTING, REPAIRS, Lamp

assembly - rear.

14. Fit rear mud flaps.



 +

 EXTERIOR FITTINGS, REPAIRS,

Mud flap - rear.
