Bumper valance - rear - from 04MY

EXTERIOR FITTINGS

REPAIRS 76-2-13

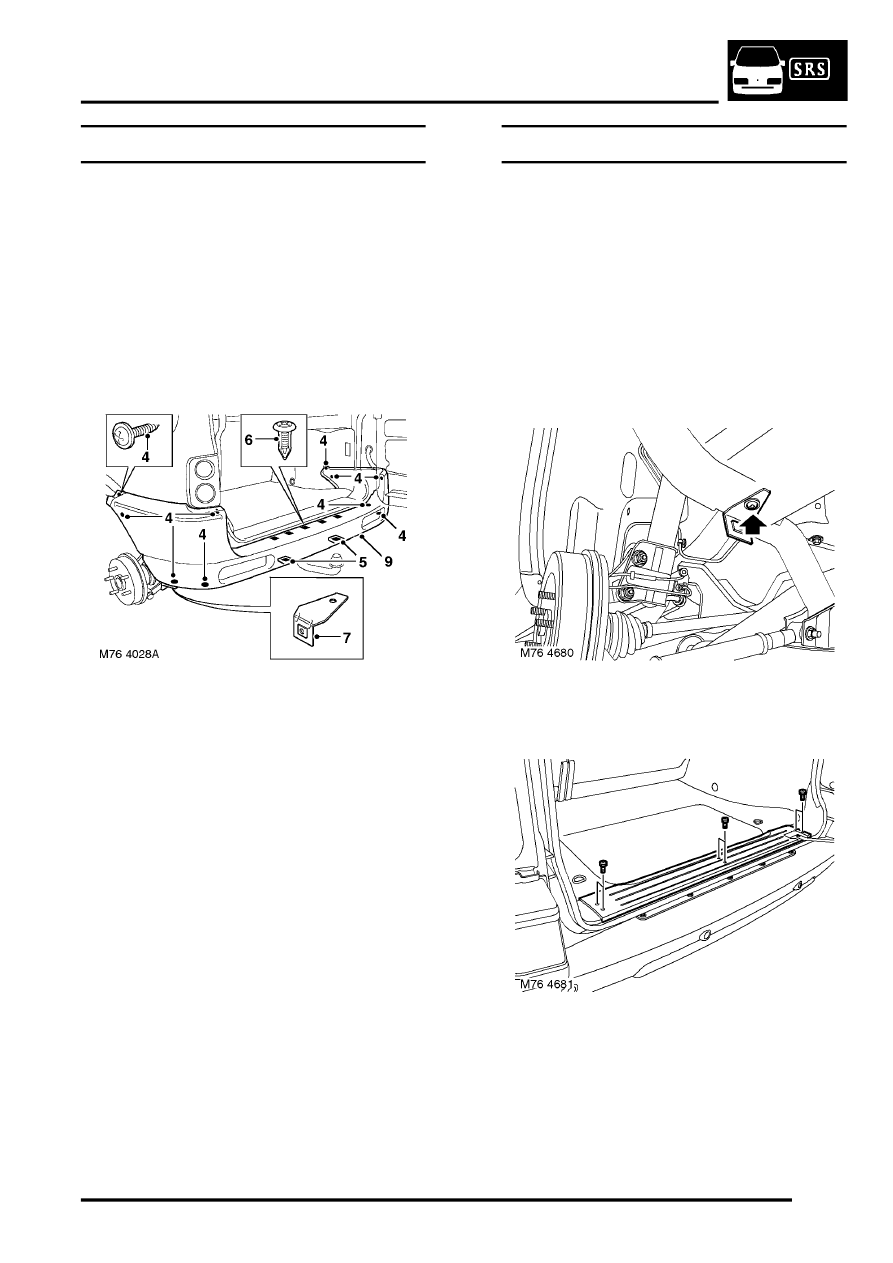

Bumper valance - rear - up to 04MY

$% 76.22.74

Remove

1. Remove rear mud flaps.



 +

 EXTERIOR FITTINGS, REPAIRS,

Mud flap - rear.

2. Remove both rear tail lamps.



 +

 LIGHTING, REPAIRS, Lamp

assembly - tail.

3. Remove rear wheel arch extensions.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wheelarch extension - rear wing part.

4. Remove 10 screws securing bumper valance to

body.

5. Remove 2 nuts and bolts securing bumper

valance to armature.

6. Remove 5 scrivets securing bumper valance to

body.

7. Remove 2 mud flap brackets.
8. NAS Models: Release side repeater,

disconnect multiplug and remove repeater.

9. With assistance remove bumper valance.

Refit

1. With assistance fit bumper valance and secure

with scrivets, screws, nuts and bolts.

2. NAS Models: Feed side repeater harness

through bumper, connect multiplug and fit
repeater.

3. Fit mud flap brackets and secure with screws.
4. Fit rear wheel arch extensions.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wheelarch extension - rear wing part.

5. Fit both rear tail lamps.



 +

 LIGHTING, REPAIRS, Lamp

assembly - tail.

6. Fit rear mud flaps.



 +

 EXTERIOR FITTINGS, REPAIRS,

Mud flap - rear.

Bumper valance - rear - from 04MY

$% 76.22.74

Remove

1. Remove rear mud flaps.



 +

 EXTERIOR FITTINGS, REPAIRS,

Mud flap - rear.

2. Remove both rear fog lamps.



 +

 LIGHTING, REPAIRS, Lamp

assembly - rear.

3. Remove rear wheel arch extensions.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wheelarch extension - rear wing part.

4. Remove 2 screws and remove both mud flap

retaining brackets.

5. Remove 6 Torx screws securing luggage

compartment carpet retainer to body.

6. Remove luggage compartment carpet retainer.
