REPAIRS (page 4 of 4)

ENGINE - K SERIES KV6

12-3-76 REPAIRS

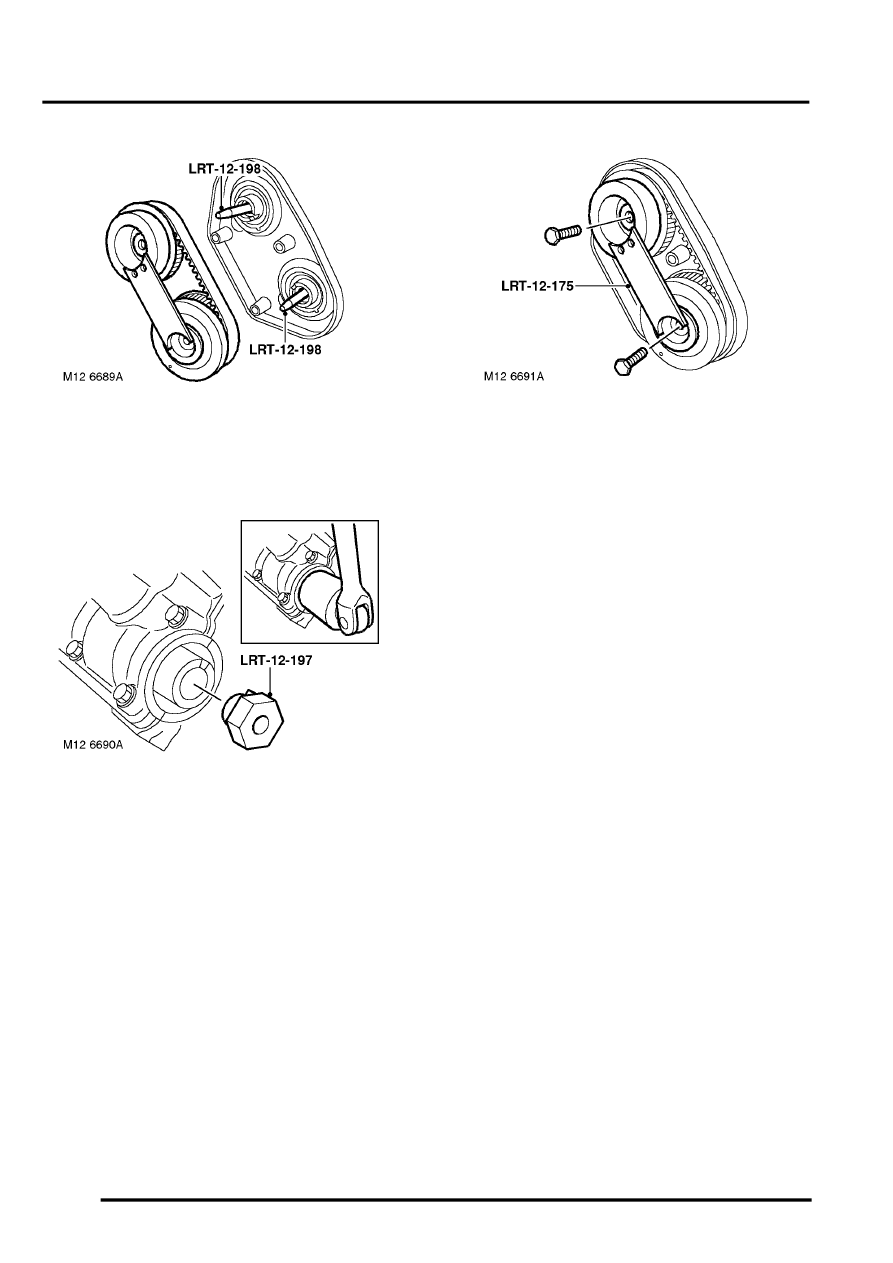

7. Fit  LRT-12-198 alignment pins into the end of

each camshaft.

8. Position timing belt and gears over LRT-12-198

and locate gears onto camshafts.

9. Position LRT-12-197 into the front end of the

RH exhaust camshaft.

10. With assistance, using a 30 mm socket on LRT-

12-197, turn the RH exhaust camshaft
sufficiently to align camshaft gears to the drive
slots in each camshaft.

11. Remove LRT-12-198 alignment pins and fit

new camshaft gear retaining bolts.

12. Tighten camshaft gear bolts to:

l

Stage 1 - 27 Nm (20 lbf.ft)

l

Stage 2 - Further 90

°

13. Remove LRT-12-175 from camshaft gears.
14. Remove LRT-12-197 from front end of exhaust

camshaft.

15. Clean RH exhaust camshaft cap seal recess

and fit new cap seal.

16. Remove timing pin LRT-12-232 from lower

crankcase.

17. Fit splash shield and secure with bolts.
18. Fit RH road wheel and tighten nuts to 115 Nm

(85 lbf.ft).

19. Fit RH rear timing belt cover.

 +

 ENGINE - K SERIES KV6, REPAIRS,

Camshaft timing belt cover - RH rear.

20. Fit underbelly panel.

 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

21. Connect battery earth lead.
