ENGINE - K SERIES KV6

REPAIRS 12-3-75

Refit

NOTE: Following front or rear timing belt
refitment, it is possible that after rotating the
engine and positioning the crankshaft pulley to
the 'SAFE' position, the timing marks on the
rear timing gears may be misaligned. This
misalignment is acceptable provided that the
timing belt refitting procedure was carried out
correctly.

1. Clean camshaft gears and mating faces on

camshafts.

CAUTION: If the sintered gears have been
subjected to prolonged oil contamination,
they must be soaked in a solvent bath and
then thoroughly washed in clean solvent
before refitting. Because of the porous
construction of sintered material, oil
impregnated in the gears will emerge and
contaminate the belt.

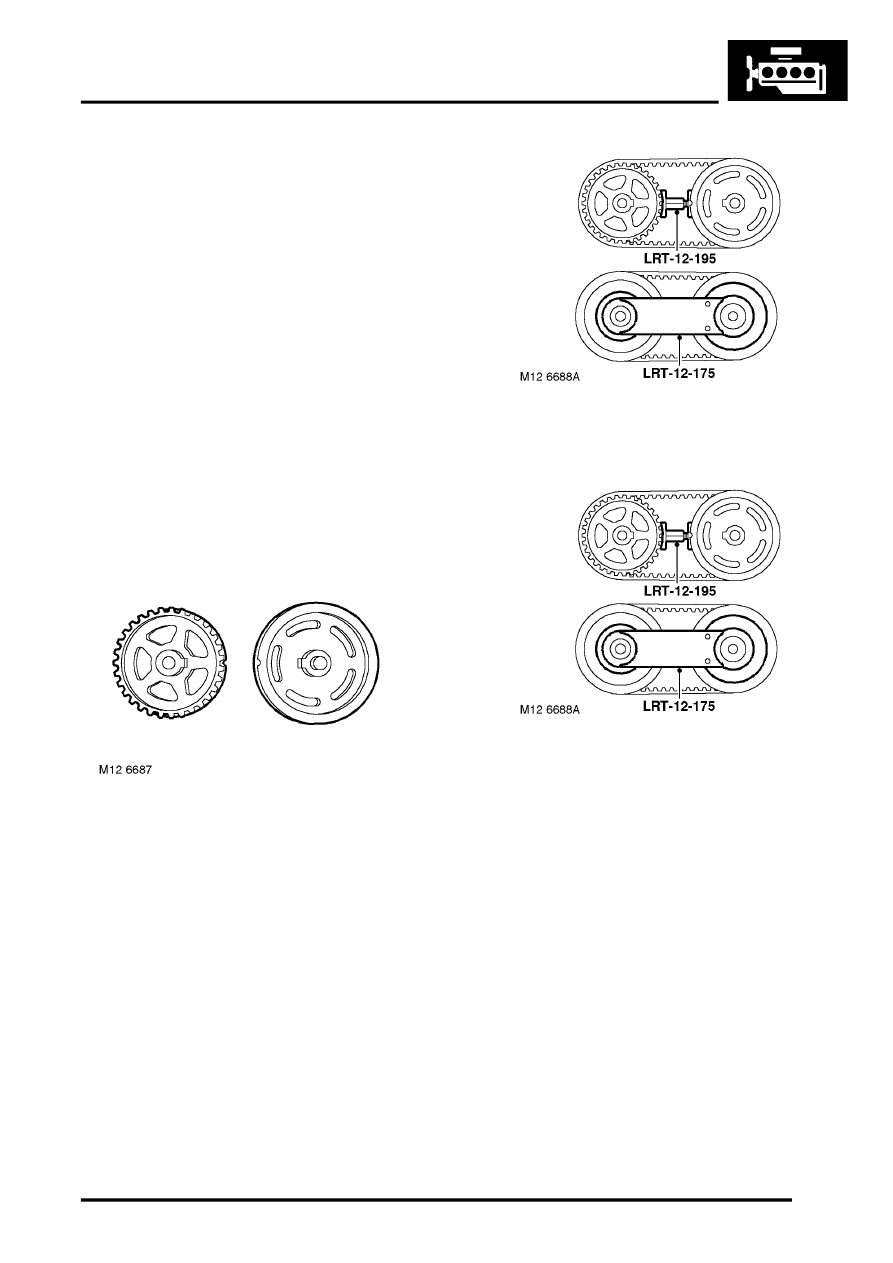

2. Place gears inverted on a flat surface, with the

locating lugs on the gears positioned as
illustrated.

3. Keeping the timing marks aligned, position

timing belt onto gears.

4. Position LRT-12-195 between the gears, turn

centre nut sufficiently to spread drive belt.

5. Invert gears and timing belt and position  LRT-

12-175 to camshaft gears.

6. Check that the locating lugs are correctly

aligned and remove LRT-12-195  from between
camshaft gears.
