BODY DIMENSIONS (page 2 of 4)

BODY DIMENSIONS

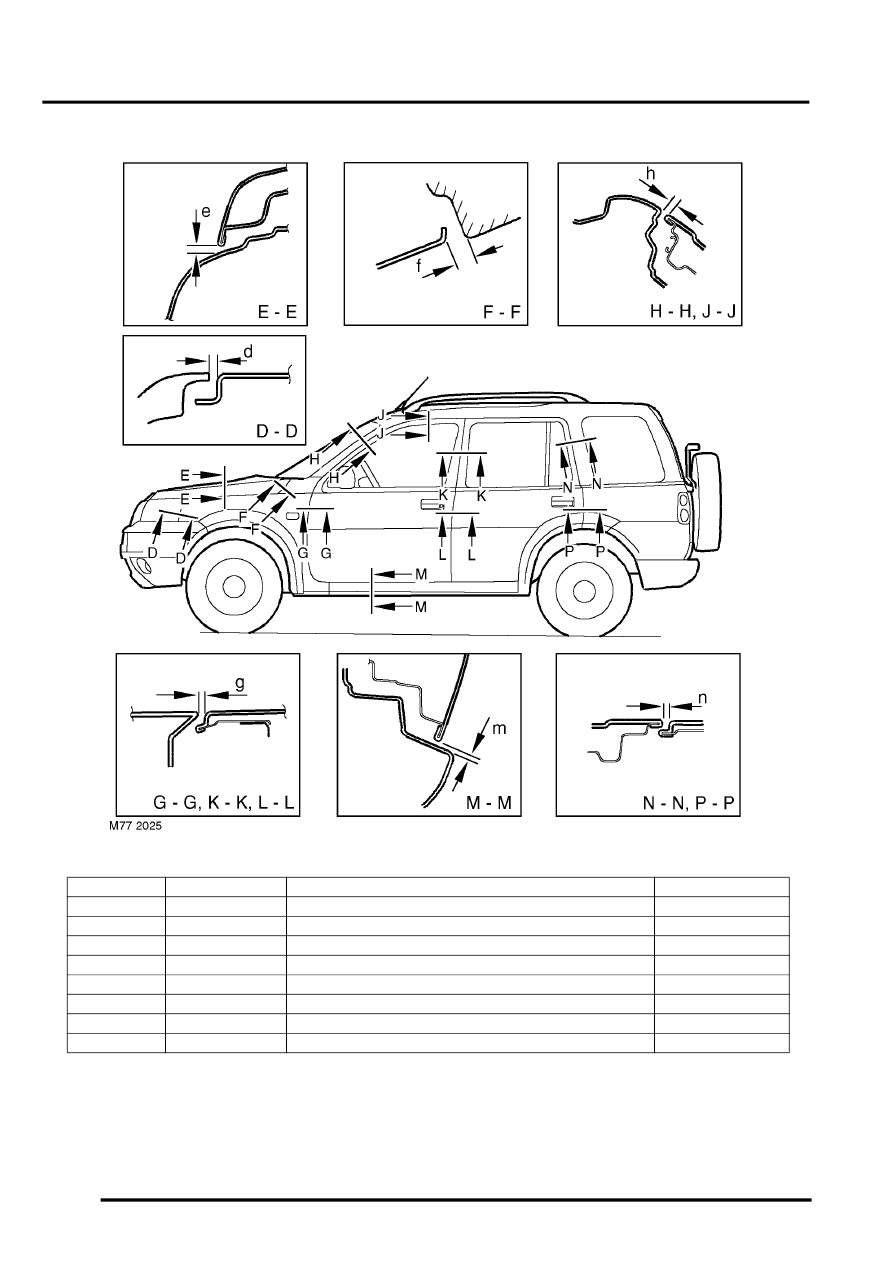

77-1-18 BODY GAPS AND PROFILES

Section

Gap

Description

Dimension

D-D

d

Headlamp to wing

3.0 (0.118)

E-E

e

Bonnet to wing

6.0 (0.236)

F-F

f

Rear edge bonnet to wing

6.0 (0.236)

G-G

g

Wing to front door

5.0 (0.196)

H-H, J-J

h

Front door frame to body

5.0 (0.196)

K-K, L-L

k

Front door to rear door

5.0 (0.196)

M-M

m

Bottom of door to sill

6.0 (0.236)

N-N, P-P

n

Rear door to body

5.0 (0.196)
