RESTRAINT SYSTEMSSRS Control Diagram · page 1 of 2
RESTRAINT SYSTEMS
75-2
DESCRIPTION AND OPERATION
SRS Control Diagram

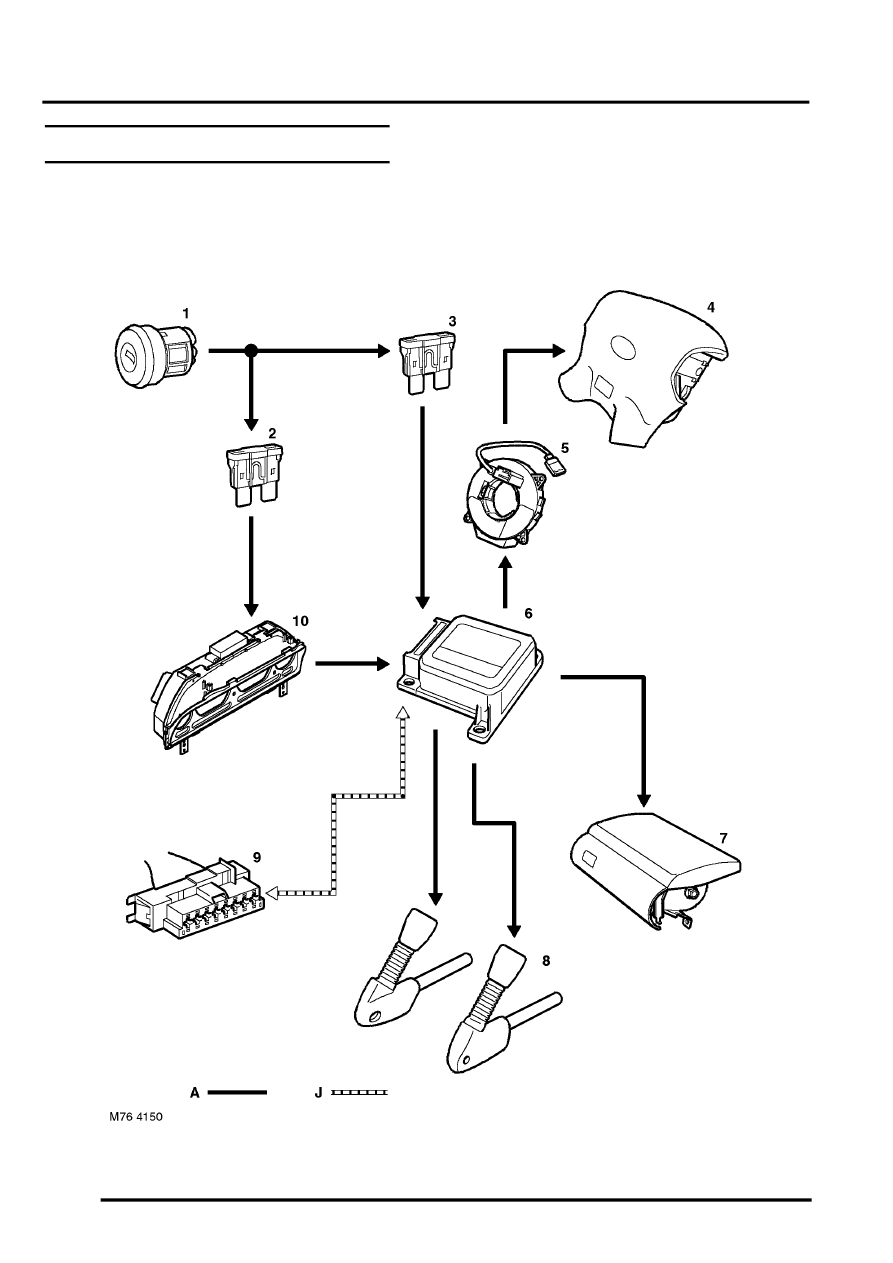

A = Hardwired connections; J = Diagnostic ISO 9141 K line bus
