Instrument Pack Component Location - Front View (2004MY Only)

INSTRUMENTS

88-2

DESCRIPTION AND OPERATION

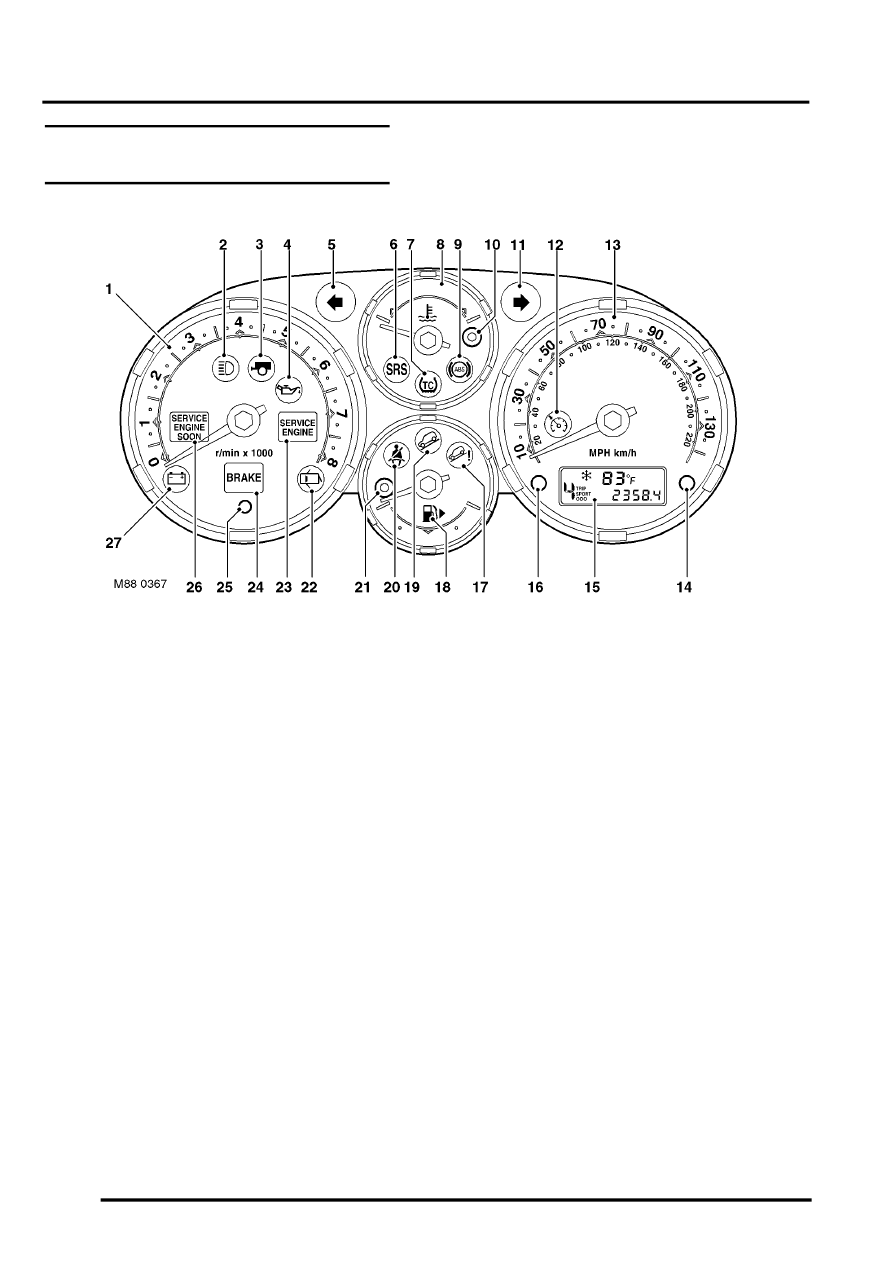

Instrument Pack Component Location -
Front View (2004MY Only)

1 Tachometer
2 Headlamp main beam warning lamp
3 Trailer direction indicator/hazard failure

warning lamp

4 Low oil pressure warning lamp
5 LH direction indicator warning lamp
6 Supplementary Restraint System (SRS)

warning lamp

7 Traction Control (TC) active warning lamp
8 Engine coolant temperature gauge
9 Anti-lock Braking System (ABS) warning lamp

10 High engine coolant temperature warning lamp
11 RH direction indicator warning lamp
12 Cruise control active warning lamp (if fitted)
13 Speedometer
14 Trip counter reset button

15 Liquid Crystal Display (LCD)
16 Not used
17 Hill descent control (HDC) failure warning lamp
18 Fuel level gauge
19 Hill Descent Control (HDC) active warning lamp
20 Seat belt warning lamp
21 Low fuel level warning lamp
22 Door open warning lamp
23 Engine malfunction warning lamp (Service

Engine)

24 Handbrake and brake system warning lamp
25 Alarm LED
26 Malfunction Indicator Lamp (MIL) (Service

Engine Soon)

27 Ignition/No charge warning lamp
