INSTRUMENTS

88-14

DESCRIPTION AND OPERATION

Rear Fog Lamp
The rear fog lamp warning lamp illuminates when the headlamps are switched on and the rear fog lamp switch is
operated. The lamp is extinguished when the fog lamp switch is operated to turn off the fog lamps or the headlamps
are switched off.

Electronic Traction Control (TC)
The TC warning lamp is illuminated for approximately 4 seconds when the ignition is switched to position II for a bulb
check. When traction control is operating, the TC warning lamp will be illuminated for a minimum of 2 seconds or for
as long as the traction control system is active. The TC warning lamp also illuminates when the ABS ECU detects a
brake system fault which affects traction control. If a fault is detected the lamp will remain permanently illuminated.
The vehicle may still be driven but rectification of the fault should be sought at the earliest opportunity.

Instrument Pack Connector Details
The following tables shows the harness connector face views, pin numbers and input/output information for
connectors C0230 and C0233.

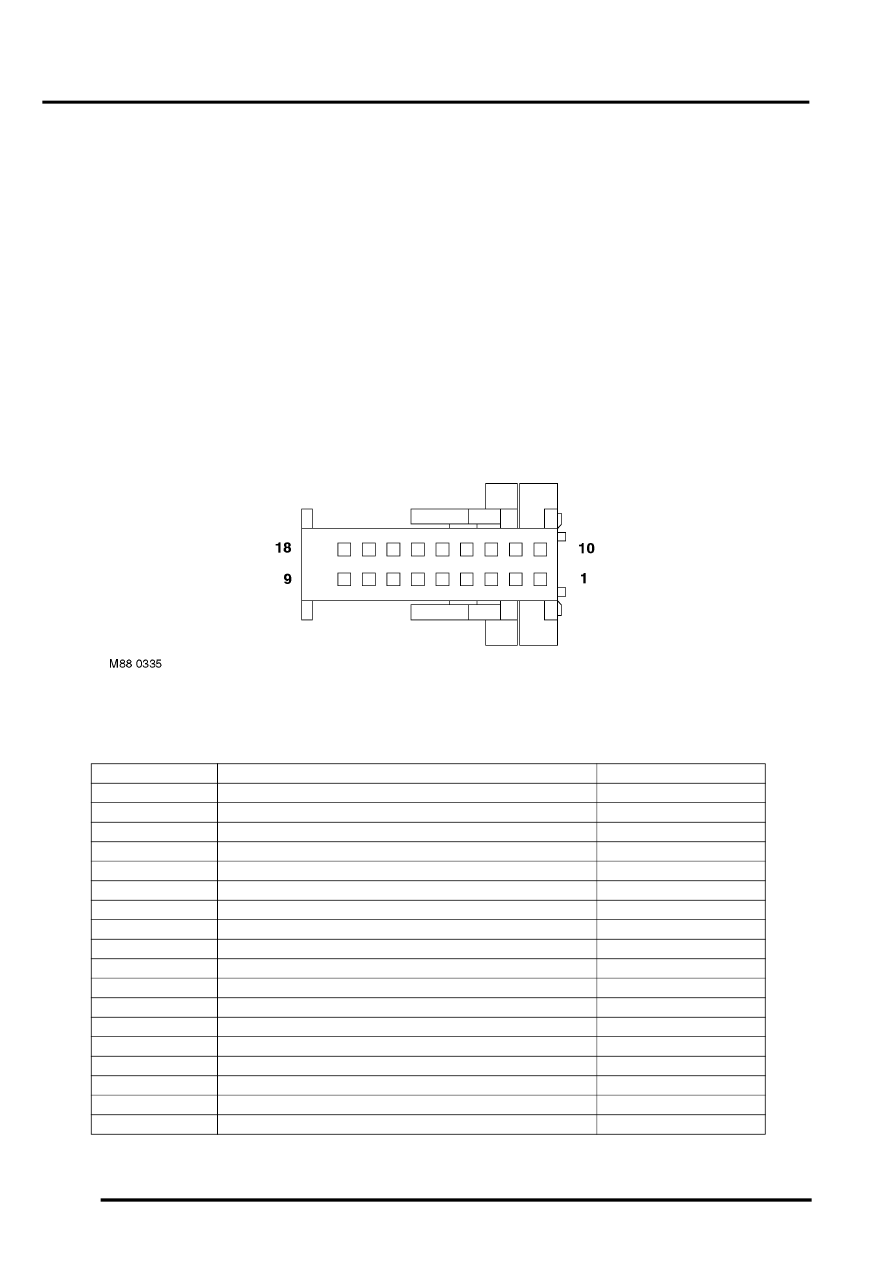

Connector C0233

The following table shows pin inputs/outputs for connector C0233.

Pin No.

Description

Input/Output

1

Door open signal

Input

2

Hazard warning lamps active signal

Input

3

Not used

-

4

Brake warning signal

Input

5

Panel illumination –

Output

6

Panel illumination +

Input

7

Earth

Input

8

Ignition switch position II (ignition) signal

Input

9

Ignition switch position III (crank) signal

Input

10

Ignition charge signal

Input

11

SRS warning signal

Input

12

Oil pressure low signal

Input

13

Air Conditioning request signal

Input

14

Reverse switch signal

Input

15

Alarm active signal

Input

16

LH direction indicator active signal

Input

17

Main beam active signal

Input

18

RH direction indicator active signal

Input
