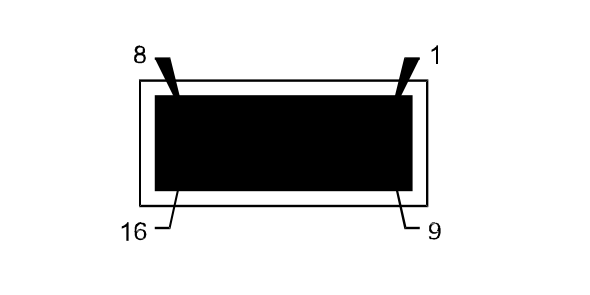

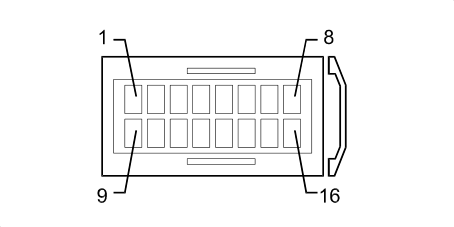

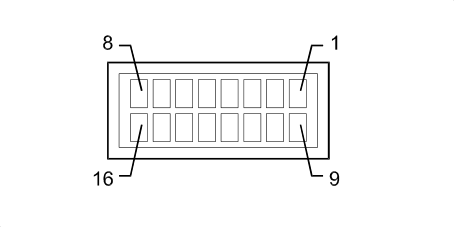

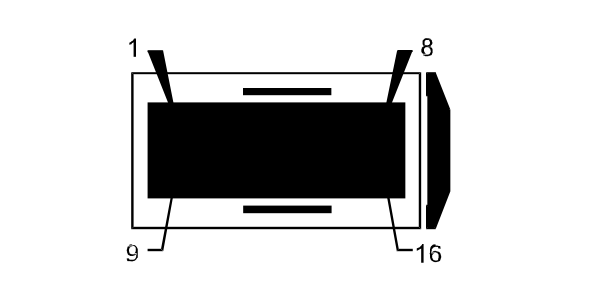

D001 FRONT/DASHBOARD COUPLING

2.0 16v, 2.0 16V JTD, 2.2 16V JTD

Wiring	Colour
See 12 FRONT	MARRONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	L - 6712		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	37
2	0,5	B - 9000A		See M001M BODY COMPUTER (FRONT)	2
3	0,5	B - 9000F		See M050A ABS CONTROL UNIT (FRONT)	24
4	0,5	Z - 6745		See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED	5B
5	0,5	Z - 9001A		See M001M BODY COMPUTER (FRONT)	4
6	0,5	Z - 9001F		See M050A ABS CONTROL UNIT (FRONT)	40
8	4	GV - M57B		See C020E PASSENGER SIDE DASHBOARD EARTH (FRONT)
9	0,5	Z - 6713		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	36
10	0,5	G - 8603		See M030A ALARM CONTROL UNIT (FRONT)	5
11	0,5	M - 8051		See M001M BODY COMPUTER (FRONT)	17
12	0,5	B - 8052		See M001M BODY COMPUTER (FRONT)	18
13	0,5	Z - 8073		See N146 LEFT ADDITIONAL FAN MOTOR	2
14	0,5	L - 8074		See N147 RIGHT ADDITIONAL FAN MOTOR	2
16	0,5	Z - 6739B		See M050A ABS CONTROL UNIT (FRONT)	33

3.0 24V V6

Wiring	Colour
See 12 FRONT	MARRONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	L - 6712A		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	47
2	0,5	B - 9000A		See M001M BODY COMPUTER (FRONT)	2
3	0,5	B - 9000F		See M050A ABS CONTROL UNIT (FRONT)	24
4	0,5	Z - 6745		See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED	5B
5	0,5	Z - 9001A		See M001M BODY COMPUTER (FRONT)	4
6	0,5	Z - 9001F		See M050A ABS CONTROL UNIT (FRONT)	40
8	4	GV - M57B		See C020E PASSENGER SIDE DASHBOARD EARTH (FRONT)
9	0,5	Z - 6713A		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	46
10	0,5	G - 8603		See M030A ALARM CONTROL UNIT (FRONT)	5
11	0,5	M - 8051		See M001M BODY COMPUTER (FRONT)	17
12	0,5	B - 8052		See M001M BODY COMPUTER (FRONT)	18
13	0,5	Z - 8073		See N146 LEFT ADDITIONAL FAN MOTOR	2
14	0,5	L - 8074		See N147 RIGHT ADDITIONAL FAN MOTOR	2
16	0,5	Z - 6739B		See M050A ABS CONTROL UNIT (FRONT)	33

2.0 16V JTD, 2.2 16V JTD · ESP, MY 2005

Wiring	Colour
See 12 FRONT	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	6712		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	37
2	0,5	9000A		See M001E BODY COMPUTER (FRONT)	2
3	0,5	6610A		See F010 LEFT HEADLAMP	5
3	0,5	6610B		See F011 RIGHT HEADLAMP	5
4	0,5	6745		See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED	3B
4	1	BE004		See M001B BODY COMPUTER (FRONT)	11
5	0,5	9001A		See M001E BODY COMPUTER (FRONT)	4
6	0,5	9006V		See M050 ABS CONTROL UNIT	11
7	0,5	9006W	X	See M010A ENGINE MANAGEMENT CONTROL UNIT (FRONT)	B4
				See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	18
				See M075 ADDITIONAL HEATER CONTROL UNIT	1
8	4	GV - M57B		See C020E PASSENGER SIDE DASHBOARD EARTH (FRONT)	1
9	0,5	6713		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	36
10	0,5	8627		See M030A ALARM CONTROL UNIT (FRONT)	5
11	0,5	8052		See M001E BODY COMPUTER (FRONT)	16
12	0,5	8056		See M001E BODY COMPUTER (FRONT)	17
13	0,5	8073		See N146 LEFT ADDITIONAL FAN MOTOR	2
14	0,5	8074		See N147 RIGHT ADDITIONAL FAN MOTOR	2
15	0,5	B - 1025		See B001F ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	9
16	0,5	8628B		See M030A ALARM CONTROL UNIT (FRONT)	11
17	0,5	9028		See M001E BODY COMPUTER (FRONT)	31
18	0,5	GV - M6730	X	See C020E PASSENGER SIDE DASHBOARD EARTH (FRONT)	1
				See E040 ALARM LED	2
				See H015 HEADLAMP ALIGNMENT CONTROL	3
				See J148 Gas discharge headlamps relay	2A
				See M001B BODY COMPUTER (FRONT)	8
				See M180 DIESEL ADDITIVE CONTROL UNIT	8
				See N146 LEFT ADDITIONAL FAN MOTOR	3
				See N147 RIGHT ADDITIONAL FAN MOTOR	3
19	0,5	9029		See M001E BODY COMPUTER (FRONT)	33
20	0,5	C1602	X	See B001F ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	4
				See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED	1B
				See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED	5B
				See J031 ENGINE FAN SPEED 2 RELAY	1
				See J032 ENGINE FAN SPEED 2 RELAY	1
				See L050 AUTOMATIC TRANSMISSION SOLENOID VALVES	A1
				See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	27

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 12 FRONT	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	6712		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	37
2	0,5	9000A		See M001E BODY COMPUTER (FRONT)	2
3	0,5	6610A		See F010 LEFT HEADLAMP	5
3	0,5	6610B		See F011 RIGHT HEADLAMP	5
4	0,5	6745		See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED	3B
4	1	BE004		See M001B BODY COMPUTER (FRONT)	11
5	0,5	9001A		See M001E BODY COMPUTER (FRONT)	4
6	0,5	9006U		See M050 ABS CONTROL UNIT	11
7	0,5	9006W	X	See M010A ENGINE MANAGEMENT CONTROL UNIT (FRONT)	B4
				See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	18
				See M075 ADDITIONAL HEATER CONTROL UNIT	1
8	4	GV - M57B		See C020E PASSENGER SIDE DASHBOARD EARTH (FRONT)	1
9	0,5	6713		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	36
10	0,5	8627		See M030A ALARM CONTROL UNIT (FRONT)	5
11	0,5	8052		See M001E BODY COMPUTER (FRONT)	16
12	0,5	8056		See M001E BODY COMPUTER (FRONT)	17
13	0,5	8073		See N146 LEFT ADDITIONAL FAN MOTOR	2
14	0,5	8074		See N147 RIGHT ADDITIONAL FAN MOTOR	2
15	0,5	B - 1025		See B001F ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	9
16	0,5	8628B		See M030A ALARM CONTROL UNIT (FRONT)	11
17	0,5	9028		See M001E BODY COMPUTER (FRONT)	31
18	0,5	GV - M6730	X	See C020E PASSENGER SIDE DASHBOARD EARTH (FRONT)	1
				See E040 ALARM LED	2
				See H015 HEADLAMP ALIGNMENT CONTROL	3
				See J148 Gas discharge headlamps relay	2A
				See M001B BODY COMPUTER (FRONT)	8
				See M180 DIESEL ADDITIVE CONTROL UNIT	8
				See N146 LEFT ADDITIONAL FAN MOTOR	3
				See N147 RIGHT ADDITIONAL FAN MOTOR	3
19	0,5	9029		See M001E BODY COMPUTER (FRONT)	33
20	0,5	C1602	X	See B001F ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	4
				See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED	1B
				See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED	5B
				See J031 ENGINE FAN SPEED 2 RELAY	1
				See J032 ENGINE FAN SPEED 2 RELAY	1
				See L050 AUTOMATIC TRANSMISSION SOLENOID VALVES	A1
				See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	27

All versions

Wiring	Colour
See 20 DASHBOARD	MARRONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	M - 6712		See H037B GEAR CONTROLS (DASHBOARD)	4
2	0,5	L - 9000A	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
				See D001 FRONT/DASHBOARD COUPLING	3
3	0,5	B - 9000B	X	See D001 FRONT/DASHBOARD COUPLING	2
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
4	0,5	L - 6745		See L058 AUTO. TRANS. LEVER LOCKING SOLENOID	1
5	0,5	Z - 9001A	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
				See D001 FRONT/DASHBOARD COUPLING	6
6	0,5	G - 9001B	X	See D001 FRONT/DASHBOARD COUPLING	5
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
8	4	GV - M57B		See C020F PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)
9	0,5	Z - 6713		See H037B GEAR CONTROLS (DASHBOARD)	5
10	0,5	Z - 8603		See I130 VOLUMETRIC SENSORS DISABLING SWITCH	6
11	0,5	L - 8051		See K086 FROST SENSOR	1
12	0,5	G - 8052		See K086 FROST SENSOR	2
13	0,5	Z - 8073		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	5
14	0,5	M - 8074		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	4

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 20 DASHBOARD	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	6712		See H037B GEAR CONTROLS (DASHBOARD)	4
2	0,5	9000A	X	See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	13
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
3	0,5	6610		See R010 MULTIPLE DIAGNOSTIC COUPLING	13
4	0,5	6747		See L058 AUTO. TRANS. LEVER LOCKING SOLENOID	1
5	0,5	9001A	X	See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	17
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6	0,5	9009		See R010 MULTIPLE DIAGNOSTIC COUPLING	12
7	0,5	9006		See R010 MULTIPLE DIAGNOSTIC COUPLING	7
8	4	GV - M57B		See C020F PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)	1
9	0,5	6713		See H037B GEAR CONTROLS (DASHBOARD)	5
10	0,5	8627		See I130 VOLUMETRIC SENSORS DISABLING SWITCH	6
11	0,5	8052		See K086 FROST SENSOR	2
12	0,5	8056		See K086 FROST SENSOR	1
13	0,5	8073		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	5
14	0,5	8074		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	4
15	0,5	1025A		See M001G BODY COMPUTER (DASHBOARD)	6
17	0,5	9028		See R010 MULTIPLE DIAGNOSTIC COUPLING	3
18	0,5	GV - M6730		See H037B GEAR CONTROLS (DASHBOARD)	6
19	0,5	9029		See R010 MULTIPLE DIAGNOSTIC COUPLING	8
20	0,5	C1602		See H037B GEAR CONTROLS (DASHBOARD)	1

2.2 16V JTD

3.0 24V V6

2.0 16V JTD

2.2 16V JTD

2.0 16v

2.0 16V JTD

2.0 16v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6712		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	37
2		9000A		M001M	2
3		9000F		See M050A ABS CONTROL UNIT(FRONT)	24
4		6745		See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED(FRONT)	5B
5		9001A		M001M	4
6		9001F		See M050A ABS CONTROL UNIT(FRONT)	40
9		6713		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	36
10		8603		See M030A ALARM CONTROL UNIT (FRONT)	5
11		8051		M001M	17
12		8052		M001M	18
13		8073		See N146 LEFT ADDITIONAL FAN MOTOR (FRONT)	2
14		8074		See N147 RIGHT ADDITIONAL FAN MOTOR	2
16		6739B		See M050A ABS CONTROL UNIT(FRONT)	33

2.0 16V JTD

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6712		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	37
2		9000A		M001M	2
3		9000F		See M050A ABS CONTROL UNIT(FRONT)	24
4		6745		See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED(FRONT)	5B
5		9001A		M001M	4
6		9001F		See M050A ABS CONTROL UNIT(FRONT)	40
9		6713		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	36
10		8603		See M030A ALARM CONTROL UNIT (FRONT)	5
11		8051		M001M	17
12		8052		M001M	18
13		8073		See N146 LEFT ADDITIONAL FAN MOTOR (FRONT)	2
14		8074		See N147 RIGHT ADDITIONAL FAN MOTOR	2
16		6739B		See M050A ABS CONTROL UNIT(FRONT)	33

2.2 16V JTD

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6712		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	37
2		9000A		M001M	2
3		9000F		See M050A ABS CONTROL UNIT(FRONT)	24
4		6745		See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED(FRONT)	5B
5		9001A		M001M	4
6		9001F		See M050A ABS CONTROL UNIT(FRONT)	40
9		6713		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	36
10		8603		See M030A ALARM CONTROL UNIT (FRONT)	5
11		8051		M001M	17
12		8052		M001M	18
13		8073		See N146 LEFT ADDITIONAL FAN MOTOR (FRONT)	2
14		8074		See N147 RIGHT ADDITIONAL FAN MOTOR	2
16		6739B		See M050A ABS CONTROL UNIT(FRONT)	33

3.0 24V V6

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6712		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	37
2		9000A		M001M	2
3		9000F		See M050A ABS CONTROL UNIT(FRONT)	24
4		6745		See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED(FRONT)	5B
5		9001A		M001M	4
6		9001F		See M050A ABS CONTROL UNIT(FRONT)	40
9		6713		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	36
10		8603		See M030A ALARM CONTROL UNIT (FRONT)	5
11		8051		M001M	17
12		8052		M001M	18
13		8073		See N146 LEFT ADDITIONAL FAN MOTOR (FRONT)	2
14		8074		See N147 RIGHT ADDITIONAL FAN MOTOR	2
16		6739B		See M050A ABS CONTROL UNIT(FRONT)	33

2.0 16v

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6712		H037B	4
2		9000A	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
				See D001 FRONT/DASHBOARD COUPLING	3
3		9000B	X	See D001 FRONT/DASHBOARD COUPLING	2
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
4		6745		See L058 AUTO. TRANS. LEVER LOCKING SOLENOID	1
5		9001A	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
				See D001 FRONT/DASHBOARD COUPLING	6
6		9001B	X	See D001 FRONT/DASHBOARD COUPLING	5
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
9		6713		H037B	5
10		8603		See I130 VOLUMETRIC SENSORS DISABLING SWITCH(FACIA)	6
11		8051		See K086 FROST SENSOR	1
12		8052		See K086 FROST SENSOR	2
13		8073		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	5
14		8074		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	4

2.0 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6712		H037B	4
2		9000A	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
				See D001 FRONT/DASHBOARD COUPLING	3
3		9000B	X	See D001 FRONT/DASHBOARD COUPLING	2
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
4		6745		See L058 AUTO. TRANS. LEVER LOCKING SOLENOID	1
5		9001A	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
				See D001 FRONT/DASHBOARD COUPLING	6
6		9001B	X	See D001 FRONT/DASHBOARD COUPLING	5
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
9		6713		H037B	5
10		8603		See I130 VOLUMETRIC SENSORS DISABLING SWITCH(FACIA)	6
11		8051		See K086 FROST SENSOR	1
12		8052		See K086 FROST SENSOR	2
13		8073		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	5
14		8074		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	4

2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6712		H037B	4
2		9000A	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
				See D001 FRONT/DASHBOARD COUPLING	3
3		9000B	X	See D001 FRONT/DASHBOARD COUPLING	2
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
4		6745		See L058 AUTO. TRANS. LEVER LOCKING SOLENOID	1
5		9001A	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
				See D001 FRONT/DASHBOARD COUPLING	6
6		9001B	X	See D001 FRONT/DASHBOARD COUPLING	5
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
9		6713		H037B	5
10		8603		See I130 VOLUMETRIC SENSORS DISABLING SWITCH(FACIA)	6
11		8051		See K086 FROST SENSOR	1
12		8052		See K086 FROST SENSOR	2
13		8073		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	5
14		8074		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	4

3.0 24V V6

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6712		H037B	4
2		9000A	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
				See D001 FRONT/DASHBOARD COUPLING	3
3		9000B	X	See D001 FRONT/DASHBOARD COUPLING	2
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
4		6745		See L058 AUTO. TRANS. LEVER LOCKING SOLENOID	1
5		9001A	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
				See D001 FRONT/DASHBOARD COUPLING	6
6		9001B	X	See D001 FRONT/DASHBOARD COUPLING	5
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
9		6713		H037B	5
10		8603		See I130 VOLUMETRIC SENSORS DISABLING SWITCH(FACIA)	6
11		8051		See K086 FROST SENSOR	1
12		8052		See K086 FROST SENSOR	2
13		8073		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	5
14		8074		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	4

‹ Prev C096 Trailer Bridge Earth Next › D004 front/engine coupling

Parts & tools for this job Staging For 2002 Fiat Ulysse

Links open Amazon search results in a new tab. As an Amazon Associate I earn from qualifying purchases.
