21 · General

F010 left headlamp

Make: Fiat
Model: Ulysse Factory Service Manual
Year: 2002–2010
Section: Exterior lights › F010 left headlamp

‹ Prev E050 instrument panel Next › F011 right headlamp

Connectors and pin-outsF010 left headlamp

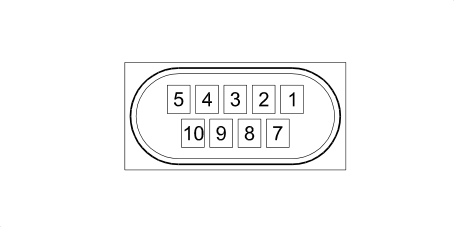

F010 LEFT HEADLAMP

Gas discharge headlamps

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		271B	X	See B001C ENGINE COMPARTMENT JUNCTION UNIT	15
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	2
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	5
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER (CAF)	5
2		281		See B001C ENGINE COMPARTMENT JUNCTION UNIT	7
3		261		See M001B BODY COMPUTER (FRONT)	13
4		M2610	X	See C010A LEFT FRONT EARTH (FRONT)
5		6610A		See R010 MULTIPLE DIAGNOSTIC COUPLING	13
6		206B		See B001F ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	10
7		276D	X	See F011 RIGHT HEADLAMP	7
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER (CAF)	4
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	4
8		287		See M001M BODY COMPUTER (FRONT)	9
9		V2610	X	See F011 RIGHT HEADLAMP	9
				See B001C ENGINE COMPARTMENT JUNCTION UNIT	10

2.0 16V JTD, 2.2 16V JTD · Gas discharge headlamps, MY 2005

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	2701C	X	See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER (CAF)	5
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	2
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	5
				See B001G ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	25
2	1,5	2801D		See J148 Gas discharge headlamps relay	5A
3	0,5	2603		See B001G ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	12
4	2,5	GV - M2610	X	See D213 FUEL TANK COUPLING	4
				See I020 REVERSING LIGHTS SWITCH	1
				See F010 LEFT HEADLAMP	5
				See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	2
				See C010A LEFT FRONT EARTH (FRONT)	1
				See L050 AUTOMATIC TRANSMISSION SOLENOID VALVES	A4
				See K020B LEFT BRAKE PAD WEAR SENSOR (SWITCH) (FRONT)	1
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	1
5	0,5	6610A		See D001 FRONT/DASHBOARD COUPLING	3
6	1	B - 2062		See B001G ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	24
7	0,5	276Y	X	See F011 RIGHT HEADLAMP	7
				See H015 HEADLAMP ALIGNMENT CONTROL	1
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER (CAF)	4
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	4
8	0,5	287		See B001G ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	8
9	0,5	C2610	X	See D004 FRONT/ENGINE COUPLING	8
				See I035 Safety switch on brake pedal for cruise control	1
				See F011 RIGHT HEADLAMP	9
				See K026 Engine coolant level sensor	3
				See B001F ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	20

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	2701		See B001G ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	25
2	1,5	2801		See B001G ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	28
3	0,5	2603		See B001G ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	12
4	2,5	GV - M2610	X	See D213 FUEL TANK COUPLING	4
				See I020 REVERSING LIGHTS SWITCH	1
				See F010 LEFT HEADLAMP	5
				See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	2
				See C010A LEFT FRONT EARTH (FRONT)	1
				See L050 AUTOMATIC TRANSMISSION SOLENOID VALVES	A4
				See K020B LEFT BRAKE PAD WEAR SENSOR (SWITCH) (FRONT)	1
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	1
5	2,5	GV - M276Y	X	See D213 FUEL TANK COUPLING	4
				See I020 REVERSING LIGHTS SWITCH	1
				See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	2
				See C010A LEFT FRONT EARTH (FRONT)	1
				See L050 AUTOMATIC TRANSMISSION SOLENOID VALVES	A4
				See F010 LEFT HEADLAMP	4
				See K020B LEFT BRAKE PAD WEAR SENSOR (SWITCH) (FRONT)	1
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	1
6	1	B - 2062		See B001G ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	24
7	0,5	276Y	X	See F011 RIGHT HEADLAMP	7
				See H015 HEADLAMP ALIGNMENT CONTROL	1
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER (CAF)	4
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	4
8	0,5	287		See B001G ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	8
9	0,5	C261A	X	See F011 RIGHT HEADLAMP	9
				See H015 HEADLAMP ALIGNMENT CONTROL	2
				See N176 DIESEL ADDITIVE PUMP	3
				See M001B BODY COMPUTER (FRONT)	2

2.0 16V JTD

2.2 16V JTD

2.0 16V JTD

2.0 16v

3.0 24V V6

2.0 16v

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	BG - 271		See B001C ENGINE COMPARTMENT JUNCTION UNIT	15
2	1,5	C - 281		See B001C ENGINE COMPARTMENT JUNCTION UNIT	7
3	0,5	G - 261		See M001B BODY COMPUTER (FRONT)	13
4	2,5	GV - M2610	X	See C010A LEFT FRONT EARTH (FRONT)
5	0,5	GV - M276Y	X	See C010A LEFT FRONT EARTH (FRONT)
6	1	M - 206A		See B001F ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	10
7	0,5	L - 276Y	X	See H015 HEADLAMP ALIGNMENT CONTROL	1
				See F011 RIGHT HEADLAMP	7
8	0,5	Z - 287		See M001M BODY COMPUTER (FRONT)	9
9	0,5	B - V2610	X	See F011 RIGHT HEADLAMP	9
				See M001B BODY COMPUTER (FRONT)	14
				See H015 HEADLAMP ALIGNMENT CONTROL	2

2.0 16V JTD

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		271B		B001C	15
2		281		B001C	7
3		261		M001B	13
4		M2610	X	See C010A LEFT FRONT EARTH (FRONT)
5		M276Y	X	See C010A LEFT FRONT EARTH (FRONT)
6		206B		B001F	10
7		276Y	X	See H015 HEADLAMP ALIGNMENT CONTROL	1
				See F011 RIGHT HEADLAMP (FRONT)	7
8		287		M001M	9
9		V2610	X	See F011 RIGHT HEADLAMP (FRONT)	9
				M001B	14
				See H015 HEADLAMP ALIGNMENT CONTROL	2

2.2 16V JTD

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		271B		B001C	15
2		281		B001C	7
3		261		M001B	13
4		M2610	X	See C010A LEFT FRONT EARTH (FRONT)
5		M276Y	X	See C010A LEFT FRONT EARTH (FRONT)
6		206B		B001F	10
7		276Y	X	See H015 HEADLAMP ALIGNMENT CONTROL	1
				See F011 RIGHT HEADLAMP (FRONT)	7
8		287		M001M	9
9		V2610	X	See F011 RIGHT HEADLAMP (FRONT)	9
				M001B	14
				See H015 HEADLAMP ALIGNMENT CONTROL	2

3.0 24V V6

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		271B		B001C	15
2		281		B001C	7
3		261		M001B	13
4		M2610	X	See C010A LEFT FRONT EARTH (FRONT)
5		M276Y	X	See C010A LEFT FRONT EARTH (FRONT)
6		206B		B001F	10
7		276Y	X	See H015 HEADLAMP ALIGNMENT CONTROL	1
				See F011 RIGHT HEADLAMP (FRONT)	7
8		287		M001M	9
9		V2610	X	See F011 RIGHT HEADLAMP (FRONT)	9
				M001B	14
				See H015 HEADLAMP ALIGNMENT CONTROL	2

2.0 16v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		271B	X	B001C	15
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER(FRONT)	2
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER(FRONT)	5
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER(FRONT)	5
2		281		B001C	7
3		261		M001B	13
4		M2610	X	See C010A LEFT FRONT EARTH (FRONT)
5		6610A		See descriptions R010 MULTI DIAGNOSIS JOINT	13
6		206B		B001F	10
7		276D	X	See F011 RIGHT HEADLAMP (FRONT)	7
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER(FRONT)	4
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER(FRONT)	4
8		287		M001M	9
9		V2610	X	See F011 RIGHT HEADLAMP (FRONT)	9
				B001C	10

2.0 16V JTD

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		271B	X	B001C	15
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER(FRONT)	2
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER(FRONT)	5
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER(FRONT)	5
2		281		B001C	7
3		261		M001B	13
4		M2610	X	See C010A LEFT FRONT EARTH (FRONT)
5		6610A		See descriptions R010 MULTI DIAGNOSIS JOINT	13
6		206B		B001F	10
7		276D	X	See F011 RIGHT HEADLAMP (FRONT)	7
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER(FRONT)	4
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER(FRONT)	4
8		287		M001M	9
9		V2610	X	See F011 RIGHT HEADLAMP (FRONT)	9
				B001C	10

2.2 16V JTD

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		271B	X	B001C	15
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER(FRONT)	2
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER(FRONT)	5
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER(FRONT)	5
2		281		B001C	7
3		261		M001B	13
4		M2610	X	See C010A LEFT FRONT EARTH (FRONT)
5		6610A		See descriptions R010 MULTI DIAGNOSIS JOINT	13
6		206B		B001F	10
7		276D	X	See F011 RIGHT HEADLAMP (FRONT)	7
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER(FRONT)	4
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER(FRONT)	4
8		287		M001M	9
9		V2610	X	See F011 RIGHT HEADLAMP (FRONT)	9
				B001C	10

3.0 24V V6

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		271B	X	B001C	15
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER(FRONT)	2
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER(FRONT)	5
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER(FRONT)	5
2		281		B001C	7
3		261		M001B	13
4		M2610	X	See C010A LEFT FRONT EARTH (FRONT)
5		6610A		See descriptions R010 MULTI DIAGNOSIS JOINT	13
6		206B		B001F	10
7		276D	X	See F011 RIGHT HEADLAMP (FRONT)	7
				See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER(FRONT)	4
				See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER(FRONT)	4
8		287		M001M	9
9		V2610	X	See F011 RIGHT HEADLAMP (FRONT)	9
				B001C	10
