Connectors and pin-outsD020 dashboard/rear coupling

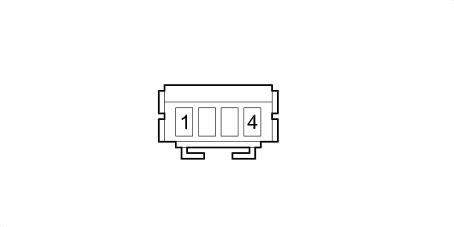

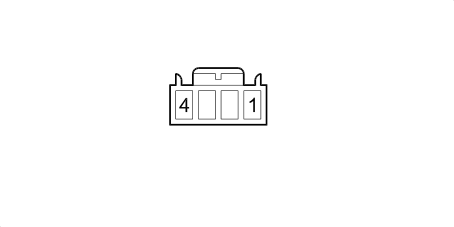

D020 DASHBOARD/REAR COUPLING

D020A – Dashboard

2.0 16V JTD, 2.2 16V JTD · Connect Nav +, MY 2005

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2	1	A3030	X	See M001D BODY COMPUTER (DASHBOARD)	4
				See G030 GLOVE COMPARTMENT LIGHT	1
6	0,35	6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7	0,5	8430B		See P046 RIGHT FRONT TWEETER SPEAKER	1
8	1	8430A		See P020C RADIO (DASHBOARD)	2
9	0,5	8623		See M001D BODY COMPUTER (DASHBOARD)	9
10	0,35	6789		See H037A GEAR CONTROLS (DASHBOARD)	1
12	1	8470		See P020C RADIO (DASHBOARD)	1
13	1	8471		See P020C RADIO (DASHBOARD)	5
14	0,35	6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15	0,5	8431B		See P046 RIGHT FRONT TWEETER SPEAKER	2
16	1	8431A		See P020C RADIO (DASHBOARD)	6

2.0 16V JTD, 2.2 16V JTD · Connect, MY 2005

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2	1	A3030#	X	See M001D BODY COMPUTER (DASHBOARD)	4
				See G030 GLOVE COMPARTMENT LIGHT	1
6	0,35	6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7	0,5	8430B		See P046 RIGHT FRONT TWEETER SPEAKER	1
8	1	8430A		See P020C RADIO (DASHBOARD)	2
9	0,5	8623		See M001D BODY COMPUTER (DASHBOARD)	9
12	1	8470		See P020C RADIO (DASHBOARD)	1
13	1	8471		See P020C RADIO (DASHBOARD)	5
14	0,35	6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15	0,5	8431B		See P046 RIGHT FRONT TWEETER SPEAKER	2
16	1	8431A		See P020C RADIO (DASHBOARD)	6

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2	1	A3030#	X	See G030 GLOVE COMPARTMENT LIGHT	1
				See M001D BODY COMPUTER (DASHBOARD)	4
3	2	A8410		See P020A RADIO (DASHBOARD)	15
6	0,35	6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7	0,5	8430B		See P046 RIGHT FRONT TWEETER SPEAKER	1
8	1	8430A#A		See P020B RADIO (DASHBOARD)	2
9	0,5	8623		See M001D BODY COMPUTER (DASHBOARD)	9
12	1	8470#		See P020B RADIO (DASHBOARD)	1
13	1	8471#		See P020B RADIO (DASHBOARD)	5
14	0,35	6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15	0,5	8431B		See P046 RIGHT FRONT TWEETER SPEAKER	2
16	1	8431A#A		See P020B RADIO (DASHBOARD)	6

3.0 24V V6

2.2 16V JTD

2.0 16V JTD

3.0 24V V6

2.0 16v

2.0 16V JTD

2.0 16v

2.0 16V JTD

3.0 24V V6

2.0 16v

2.2 16V JTD

2.0 16v

2.2 16V JTD

3.0 24V V6

2.2 16V JTD

3.0 24V V6

2.0 16v

2.0 16V JTD

2.0 16v

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	C - A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2	0,5	L - 9012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3	0,5	Z - XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4	0,5	B - BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5	0,5	G - 9013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6	0,35	S - 6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7	0,5	B - 8430B		See P046 RIGHT FRONT TWEETER SPEAKER	1
8	0,5	L - 8430A		See P020C RADIO (DASHBOARD)	2
9	0,5	Z - 6296		See M001D BODY COMPUTER (DASHBOARD)	9
10	0,35	C - 6789		See H037A GEAR CONTROLS (DASHBOARD)	1
11	1	G - CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				See H037B GEAR CONTROLS (DASHBOARD)	1
12	1	Z - 8470		See P020C RADIO (DASHBOARD)	1
13	1	G - 8471		See P020C RADIO (DASHBOARD)	5
14	0,35	BG - 6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15	0,5	G - 8431B		See P046 RIGHT FRONT TWEETER SPEAKER	2
16	1	B - 8431A		See P020C RADIO (DASHBOARD)	6

2.0 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020B	3
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020B	1
13		8471		P020B	2
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020B	4

2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020B	3
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020B	1
13		8471		P020B	2
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020B	4

3.0 24V V6

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020B	3
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020B	1
13		8471		P020B	2
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020B	4

2.0 16v

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

2.0 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

3.0 24V V6

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

2.0 16v

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

2.0 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

3.0 24V V6

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

2.0 16v

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

2.0 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

3.0 24V V6

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

2.0 16v

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

2.0 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

3.0 24V V6

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		See P050 CIGAR LIGHTER / CURRENT SOCKET	2
2		90012V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
3		XC1CV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	6
4		BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5
5		90013V		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
6		6546		See H075 PASSENGER AIR BAG DISABLING SWITCH	6
7		8430B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	2
8		8430A		P020C	2
9		6296		M001D	9
10		6789		H037B	1
11		CE91	X	See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	4
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	12
				H037B	1
12		8470		P020C	1
13		8471		P020C	5
14		6547		See H075 PASSENGER AIR BAG DISABLING SWITCH	3
15		8431B		See P046 RIGHT FRONT TWEETER SPEAKER (DASHBOARD)	1
16		8431A		P020C	6

2.0 16v

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		M001F	1
2		90012V		M001L	38
3		XC1CV		M001F	4
4		BECV		M001F	2
5		90013V		M001L	40
6		6546		See M060 AIR BAG CONTROL UNIT	50
7		8430A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	8
8		8430A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	7
8		8430B		See D031 PASSENGER FRONT DOOR COUPLING (REAR)	8
9		6296		See D042B COURTESY LIGHT COUPLING (REAR)	12
10		6789		M001L	16
11		CE91		M001F	6
12		8470A		See P121 RIGHT REAR SPEAKER IN SIDE PANEL	1
13		8471A		See P121 RIGHT REAR SPEAKER IN SIDE PANEL	2
14		6547		See M060 AIR BAG CONTROL UNIT	49
15		8431A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	16
16		8431B		See D031 PASSENGER FRONT DOOR COUPLING (REAR)	9
16		8431A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	15

2.0 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		M001F	1
2		90012V		M001L	38
3		XC1CV		M001F	4
4		BECV		M001F	2
5		90013V		M001L	40
6		6546		See M060 AIR BAG CONTROL UNIT	50
7		8430A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	8
8		8430A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	7
8		8430B		See D031 PASSENGER FRONT DOOR COUPLING (REAR)	8
9		6296		See D042B COURTESY LIGHT COUPLING (REAR)	12
10		6789		M001L	16
11		CE91		M001F	6
12		8470A		See P121 RIGHT REAR SPEAKER IN SIDE PANEL	1
13		8471A		See P121 RIGHT REAR SPEAKER IN SIDE PANEL	2
14		6547		See M060 AIR BAG CONTROL UNIT	49
15		8431A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	16
16		8431B		See D031 PASSENGER FRONT DOOR COUPLING (REAR)	9
16		8431A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	15

2.2 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		M001F	1
2		90012V		M001L	38
3		XC1CV		M001F	4
4		BECV		M001F	2
5		90013V		M001L	40
6		6546		See M060 AIR BAG CONTROL UNIT	50
7		8430A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	8
8		8430A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	7
8		8430B		See D031 PASSENGER FRONT DOOR COUPLING (REAR)	8
9		6296		See D042B COURTESY LIGHT COUPLING (REAR)	12
10		6789		M001L	16
11		CE91		M001F	6
12		8470A		See P121 RIGHT REAR SPEAKER IN SIDE PANEL	1
13		8471A		See P121 RIGHT REAR SPEAKER IN SIDE PANEL	2
14		6547		See M060 AIR BAG CONTROL UNIT	49
15		8431A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	16
16		8431B		See D031 PASSENGER FRONT DOOR COUPLING (REAR)	9
16		8431A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	15

3.0 24V V6

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		A8100		M001F	1
2		90012V		M001L	38
3		XC1CV		M001F	4
4		BECV		M001F	2
5		90013V		M001L	40
6		6546		See M060 AIR BAG CONTROL UNIT	50
7		8430A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	8
8		8430A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	7
8		8430B		See D031 PASSENGER FRONT DOOR COUPLING (REAR)	8
9		6296		See D042B COURTESY LIGHT COUPLING (REAR)	12
10		6789		M001L	16
11		CE91		M001F	6
12		8470A		See P121 RIGHT REAR SPEAKER IN SIDE PANEL	1
13		8471A		See P121 RIGHT REAR SPEAKER IN SIDE PANEL	2
14		6547		See M060 AIR BAG CONTROL UNIT	49
15		8431A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	16
16		8431B		See D031 PASSENGER FRONT DOOR COUPLING (REAR)	9
16		8431A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	15

D020A – Rear

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	H - A8100		See M001F BODY COMPUTER (REAR)	1
2	0,5	G - 9012V		See M001L BODY COMPUTER (REAR)	40
3	0,5	L - XC1CV		See M001F BODY COMPUTER (REAR)	4
4	0,5	Z - BECV		See M001F BODY COMPUTER (REAR)	2
5	0,5	B - 9013V		See M001L BODY COMPUTER (REAR)	38
6	0,35	C - 6546		See M060 AIR BAG CONTROL UNIT	50
7	1,5	BG - 8430A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	8
8	1,5	BG - 8430A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	7
8	1,5	BG - 8430B		See D031 PASSENGER FRONT DOOR COUPLING	8
9	0,5	B - 6296		See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	12
10	0,5	B - 6789		See M001L BODY COMPUTER (REAR)	16
11	0,5	G - CE91		See M001F BODY COMPUTER (REAR)	6
12	1,5	BG - 8470A		See P121 RIGHT REAR SPEAKER IN SIDE PANEL	1
13	1,5	H - 8471A		See P121 RIGHT REAR SPEAKER IN SIDE PANEL	2
14	0,35	S - 6547		See M060 AIR BAG CONTROL UNIT	49
15	1,5	V - 8431A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	16
16	1,5	V - 8431B		See D031 PASSENGER FRONT DOOR COUPLING	9
16	1,5	V - 8431A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	15

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	A8100		See M001F BODY COMPUTER (REAR)	1
2	1	A3030		See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	5
3	2	N - A8410		See M001H BODY COMPUTER (REAR)	10
6	0,55	C - 6546		See M060 AIR BAG CONTROL UNIT	50
8	1,5	8430A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	7
8	1,5	8430B		See D031 PASSENGER FRONT DOOR COUPLING	8
9	0,5	8623		See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	12
10	0,5	6789		See M001I BODY COMPUTER (REAR)	5
12	1,5	8470A		See P121 RIGHT REAR SPEAKER IN SIDE PANEL	1
13	1,5	8471A		See P121 RIGHT REAR SPEAKER IN SIDE PANEL	2
14	0,55	6547		See M060 AIR BAG CONTROL UNIT	49
15	1,5	8431A		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	16
16	1,5	8431B		See D031 PASSENGER FRONT DOOR COUPLING	9

D020B – Dashboard

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 20 DASHBOARD	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	6538		See M093C STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
2	0,5	6539		See M093C STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
3	0,5	6501		See M093B STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
4	0,5	6500		See M093B STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2

3.0 24V V6

2.0 16V JTD

3.0 24V V6

2.2 16V JTD

2.0 16v

2.2 16V JTD

2.0 16v

Wiring	Colour
See 20 DASHBOARD	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	GC - 6538		See M093C STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
2	0,5	GC - 6539		See M093C STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
3	0,5	GC - 6501		See M093B STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
4	0,5	GC - 6500		See M093B STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2

2.0 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6538		See M093C STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
2		6539		See M093C STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
3		6501		See M093B STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
4		6500		See M093B STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2

2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6538		See M093C STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
2		6539		See M093C STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
3		6501		See M093B STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
4		6500		See M093B STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2

3.0 24V V6

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6538		See M093C STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
2		6539		See M093C STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
3		6501		See M093B STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
4		6500		See M093B STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2

2.0 16v

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6538		See M060 AIR BAG CONTROL UNIT	20
2		6539		See M060 AIR BAG CONTROL UNIT	21
3		6501		See M060 AIR BAG CONTROL UNIT	2
4		6500		See M060 AIR BAG CONTROL UNIT	1

2.0 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6538		See M060 AIR BAG CONTROL UNIT	20
2		6539		See M060 AIR BAG CONTROL UNIT	21
3		6501		See M060 AIR BAG CONTROL UNIT	2
4		6500		See M060 AIR BAG CONTROL UNIT	1

2.2 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6538		See M060 AIR BAG CONTROL UNIT	20
2		6539		See M060 AIR BAG CONTROL UNIT	21
3		6501		See M060 AIR BAG CONTROL UNIT	2
4		6500		See M060 AIR BAG CONTROL UNIT	1

3.0 24V V6

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6538		See M060 AIR BAG CONTROL UNIT	20
2		6539		See M060 AIR BAG CONTROL UNIT	21
3		6501		See M060 AIR BAG CONTROL UNIT	2
4		6500		See M060 AIR BAG CONTROL UNIT	1

D020B – Rear

Wiring	Colour
See 25 REAR	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	GC - 6538		See M060 AIR BAG CONTROL UNIT	20
2	0,5	GC - 6539		See M060 AIR BAG CONTROL UNIT	21
3	0,5	GC - 6501		See M060 AIR BAG CONTROL UNIT	2
4	0,5	GC - 6500		See M060 AIR BAG CONTROL UNIT	1

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 25 REAR	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	6538		See M060 AIR BAG CONTROL UNIT	20
2	0,5	6539		See M060 AIR BAG CONTROL UNIT	21
3	0,5	6501		See M060 AIR BAG CONTROL UNIT	2
4	0,5	6500		See M060 AIR BAG CONTROL UNIT	1

D020C – Dashboard

2.0 16V JTD, 2.2 16V JTD · Connect Nav +, MY 2005

Wiring	Colour
See 20 DASHBOARD	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	8410B		See P045 LEFT FRONT TWEETER SPEAKER	1
1	0,5	8410C		See P020A RADIO (DASHBOARD)	8
2	1	8410A		See P020C RADIO (DASHBOARD)	3
3	1	8450		See P020C RADIO (DASHBOARD)	4
4	1	8451		See P020C RADIO (DASHBOARD)	8
6	0,5	8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7	1	8411A		See P020C RADIO (DASHBOARD)	7
8	0,5	8411B		See P045 LEFT FRONT TWEETER SPEAKER	2
8	0,5	8411C		See P020A RADIO (DASHBOARD)	2
9	0,5	8488		See P020A RADIO (DASHBOARD)	3
10	0,5	8487		See P020A RADIO (DASHBOARD)	9
11	0,5	8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
12	0,5	8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
13	0,5	9000	X	See D001 FRONT/DASHBOARD COUPLING	2
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
14	0,5	8454		See P020D RADIO (DASHBOARD)	11
15	0,5	8489#		See P020B RADIO (DASHBOARD)	5
16	0,5	8497A	X	See P020B RADIO (DASHBOARD)	1
				See P075 CD CHANGER MODULE	3
17	0,5	9001	X	See D001 FRONT/DASHBOARD COUPLING	5
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
19	0,5	BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5

2.0 16V JTD, 2.2 16V JTD · Connect, MY 2005

Wiring	Colour
See 20 DASHBOARD	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	8410B		See P045 LEFT FRONT TWEETER SPEAKER	1
1	0,5	8410C		See P020A RADIO (DASHBOARD)	8
2	1	8410A		See P020C RADIO (DASHBOARD)	3
3	1	8450		See P020C RADIO (DASHBOARD)	4
4	1	8451		See P020C RADIO (DASHBOARD)	8
6	0,5	8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7	1	8411A		See P020C RADIO (DASHBOARD)	7
8	0,5	8411B		See P045 LEFT FRONT TWEETER SPEAKER	2
8	0,5	8411C		See P020A RADIO (DASHBOARD)	2
9	0,5	8488		See P020A RADIO (DASHBOARD)	3
10	0,5	8487		See P020A RADIO (DASHBOARD)	9
11	0,5	8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
12	0,5	8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
13	0,5	9000	X	See D001 FRONT/DASHBOARD COUPLING	2
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
14	0,5	8454		See P020D RADIO (DASHBOARD)	11
15	0,5	8489		See P020B RADIO (DASHBOARD)	5
16	0,5	8497A	X	See P020B RADIO (DASHBOARD)	1
				See P075 CD CHANGER MODULE	3
17	0,5	9001	X	See D001 FRONT/DASHBOARD COUPLING	5
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
19	0,5	BECV		See M093A STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	5

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 20 DASHBOARD	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	8410B		See P045 LEFT FRONT TWEETER SPEAKER	1
2	1	8410A#A		See P020B RADIO (DASHBOARD)	3
3	1	8450#		See P020B RADIO (DASHBOARD)	4
4	1	8451#		See P020B RADIO (DASHBOARD)	8
6	0,5	8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7	1	8411A#A		See P020B RADIO (DASHBOARD)	7
8	0,5	8411B		See P045 LEFT FRONT TWEETER SPEAKER	2
11	0,5	8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
12	0,5	8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
13	0,5	9000	X	See D001 FRONT/DASHBOARD COUPLING	2
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	2
17	0,5	9001	X	See D001 FRONT/DASHBOARD COUPLING	5
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	1
19	0,5	BECV		See M093 STEERING WHEEL NODE CONTROL UNIT (NVO)	5

2.2 16V JTD

2.0 16v

2.0 16V JTD

3.0 24V V6

2.2 16V JTD

2.0 16V JTD

3.0 24V V6

2.0 16V JTD

2.2 16V JTD

3.0 24V V6

2.0 16V JTD

3.0 24V V6

2.0 16v

2.2 16V JTD

2.0 16v

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	M - 8487		See P020A RADIO (DASHBOARD)	9
2	1	B - 8450		See P020C RADIO (DASHBOARD)	4
3	1	G - 8451		See P020C RADIO (DASHBOARD)	8
4	0,5	L - 8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
5	0,5	G - 8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
6	0,5	Z - 8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7	0,5	M - 8410B		See P045 LEFT FRONT TWEETER SPEAKER	1
7	0,5	G - PECSP		See P020A RADIO (DASHBOARD)	8
8	1	Z - 8410A		See P020C RADIO (DASHBOARD)	3
9	0,5	Z - 8488		See P020A RADIO (DASHBOARD)	3
10	0,35	BG - 8005		See K090 SOLAR SENSOR	2
11	0,35	C - 8006		See K090 SOLAR SENSOR	3
12	0,35	H - 8007		See K090 SOLAR SENSOR	1
13	0,35	V - 8008		See K090 SOLAR SENSOR	6
15	0,5	L - 8411B		See P045 LEFT FRONT TWEETER SPEAKER	2
15	0,5	G - MECSP		See P020A RADIO (DASHBOARD)	2
16	1	M - 8411A		See P020C RADIO (DASHBOARD)	7

2.0 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2		8450		P020B	7
3		8451		P020B	8
4		8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
5		8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
6		8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7		8410B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	1
8		8410A		P020B	5
10		8005		See K090 SOLAR SENSOR	2
11		8006		See K090 SOLAR SENSOR	3
12		8007		See K090 SOLAR SENSOR	1
13		8008		See K090 SOLAR SENSOR	6
15		8411B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	2
16		8411A		P020B	6

2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2		8450		P020B	7
3		8451		P020B	8
4		8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
5		8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
6		8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7		8410B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	1
8		8410A		P020B	5
10		8005		See K090 SOLAR SENSOR	2
11		8006		See K090 SOLAR SENSOR	3
12		8007		See K090 SOLAR SENSOR	1
13		8008		See K090 SOLAR SENSOR	6
15		8411B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	2
16		8411A		P020B	6

3.0 24V V6

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2		8450		P020B	7
3		8451		P020B	8
4		8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
5		8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
6		8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7		8410B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	1
8		8410A		P020B	5
10		8005		See K090 SOLAR SENSOR	2
11		8006		See K090 SOLAR SENSOR	3
12		8007		See K090 SOLAR SENSOR	1
13		8008		See K090 SOLAR SENSOR	6
15		8411B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	2
16		8411A		P020B	6

2.0 16v

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		8487		See P020A RADIO (DASHBOARD)	9
2		8450		P020C	4
3		8451		P020C	8
4		8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
5		8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
6		8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7		8410B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	1
7		MECSP		See P020A RADIO (DASHBOARD)	2
8		8410A		P020C	3
9		8488		See P020A RADIO (DASHBOARD)	3
10		8005		See K090 SOLAR SENSOR	2
11		8006		See K090 SOLAR SENSOR	3
12		8007		See K090 SOLAR SENSOR	1
13		8008		See K090 SOLAR SENSOR	6
15		8411B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	2
15		PECSP		See P020A RADIO (DASHBOARD)	8
16		8411A		P020C	7

2.0 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		8487		See P020A RADIO (DASHBOARD)	9
2		8450		P020C	4
3		8451		P020C	8
4		8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
5		8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
6		8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7		8410B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	1
7		MECSP		See P020A RADIO (DASHBOARD)	2
8		8410A		P020C	3
9		8488		See P020A RADIO (DASHBOARD)	3
10		8005		See K090 SOLAR SENSOR	2
11		8006		See K090 SOLAR SENSOR	3
12		8007		See K090 SOLAR SENSOR	1
13		8008		See K090 SOLAR SENSOR	6
15		8411B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	2
15		PECSP		See P020A RADIO (DASHBOARD)	8
16		8411A		P020C	7

2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		8487		See P020A RADIO (DASHBOARD)	9
2		8450		P020C	4
3		8451		P020C	8
4		8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
5		8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
6		8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7		8410B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	1
7		MECSP		See P020A RADIO (DASHBOARD)	2
8		8410A		P020C	3
9		8488		See P020A RADIO (DASHBOARD)	3
10		8005		See K090 SOLAR SENSOR	2
11		8006		See K090 SOLAR SENSOR	3
12		8007		See K090 SOLAR SENSOR	1
13		8008		See K090 SOLAR SENSOR	6
15		8411B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	2
15		PECSP		See P020A RADIO (DASHBOARD)	8
16		8411A		P020C	7

3.0 24V V6

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		8487		See P020A RADIO (DASHBOARD)	9
2		8450		P020C	4
3		8451		P020C	8
4		8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
5		8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
6		8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7		8410B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	1
7		MECSP		See P020A RADIO (DASHBOARD)	2
8		8410A		P020C	3
9		8488		See P020A RADIO (DASHBOARD)	3
10		8005		See K090 SOLAR SENSOR	2
11		8006		See K090 SOLAR SENSOR	3
12		8007		See K090 SOLAR SENSOR	1
13		8008		See K090 SOLAR SENSOR	6
15		8411B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	2
15		PECSP		See P020A RADIO (DASHBOARD)	8
16		8411A		P020C	7

2.0 16v

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		8487		See P020A RADIO (DASHBOARD)	9
2		8450		P020C	4
3		8451		P020C	8
4		8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
5		8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
6		8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7		8410B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	1
7		MECSP		See P020A RADIO (DASHBOARD)	2
8		8410A		P020C	3
9		8488		See P020A RADIO (DASHBOARD)	3
10		8005		See K090 SOLAR SENSOR	2
11		8006		See K090 SOLAR SENSOR	3
12		8007		See K090 SOLAR SENSOR	1
13		8008		See K090 SOLAR SENSOR	6
15		8411B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	2
15		PECSP		See P020A RADIO (DASHBOARD)	8
16		8411A		P020C	7

2.0 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		8487		See P020A RADIO (DASHBOARD)	9
2		8450		P020C	4
3		8451		P020C	8
4		8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
5		8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
6		8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7		8410B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	1
7		MECSP		See P020A RADIO (DASHBOARD)	2
8		8410A		P020C	3
9		8488		See P020A RADIO (DASHBOARD)	3
10		8005		See K090 SOLAR SENSOR	2
11		8006		See K090 SOLAR SENSOR	3
12		8007		See K090 SOLAR SENSOR	1
13		8008		See K090 SOLAR SENSOR	6
15		8411B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	2
15		PECSP		See P020A RADIO (DASHBOARD)	8
16		8411A		P020C	7

2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		8487		See P020A RADIO (DASHBOARD)	9
2		8450		P020C	4
3		8451		P020C	8
4		8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
5		8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
6		8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7		8410B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	1
7		MECSP		See P020A RADIO (DASHBOARD)	2
8		8410A		P020C	3
9		8488		See P020A RADIO (DASHBOARD)	3
10		8005		See K090 SOLAR SENSOR	2
11		8006		See K090 SOLAR SENSOR	3
12		8007		See K090 SOLAR SENSOR	1
13		8008		See K090 SOLAR SENSOR	6
15		8411B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	2
15		PECSP		See P020A RADIO (DASHBOARD)	8
16		8411A		P020C	7

3.0 24V V6

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		8487		See P020A RADIO (DASHBOARD)	9
2		8450		P020C	4
3		8451		P020C	8
4		8086		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	6
5		8085		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	13
6		8087		See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	7
7		8410B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	1
7		MECSP		See P020A RADIO (DASHBOARD)	2
8		8410A		P020C	3
9		8488		See P020A RADIO (DASHBOARD)	3
10		8005		See K090 SOLAR SENSOR	2
11		8006		See K090 SOLAR SENSOR	3
12		8007		See K090 SOLAR SENSOR	1
13		8008		See K090 SOLAR SENSOR	6
15		8411B		See P045 LEFT FRONT TWEETER SPEAKER (DASHBOARD)	2
15		PECSP		See P020A RADIO (DASHBOARD)	8
16		8411A		P020C	7

2.0 16v

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		8487		See D042B COURTESY LIGHT COUPLING (REAR)	13
2		8450A		See P120 LEAF REAR SPEAKER IN SIDE PANEL	1
3		8451A		See P120 LEAF REAR SPEAKER IN SIDE PANEL	2
4		8086		See H126 RIGHT REAR ADDITIONAL FAN CONTROL	6
5		8085		See H125 LEFT REAR ADDITIONAL FAN CONTROL	6
6		8087A		See H125 LEFT REAR ADDITIONAL FAN CONTROL	5
6		8087B		See H126 RIGHT REAR ADDITIONAL FAN CONTROL	5
7		8410A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	8
8		8410B		See D030 DRIVER'S FRONT DOOR COUPLING (REAR)	8
8		8410A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	7
9		8488		See D042B COURTESY LIGHT COUPLING (REAR)	14
10		8005		M001L	6
11		8006		M001L	18
12		8007		M001L	7
13		8008		M001L	8
15		8411A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	16
16		8411B		See D030 DRIVER'S FRONT DOOR COUPLING (REAR)	9
16		8411A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	15

2.0 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		8487		See D042B COURTESY LIGHT COUPLING (REAR)	13
2		8450A		See P120 LEAF REAR SPEAKER IN SIDE PANEL	1
3		8451A		See P120 LEAF REAR SPEAKER IN SIDE PANEL	2
4		8086		See H126 RIGHT REAR ADDITIONAL FAN CONTROL	6
5		8085		See H125 LEFT REAR ADDITIONAL FAN CONTROL	6
6		8087A		See H125 LEFT REAR ADDITIONAL FAN CONTROL	5
6		8087B		See H126 RIGHT REAR ADDITIONAL FAN CONTROL	5
7		8410A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	8
8		8410B		See D030 DRIVER'S FRONT DOOR COUPLING (REAR)	8
8		8410A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	7
9		8488		See D042B COURTESY LIGHT COUPLING (REAR)	14
10		8005		M001L	6
11		8006		M001L	18
12		8007		M001L	7
13		8008		M001L	8
15		8411A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	16
16		8411B		See D030 DRIVER'S FRONT DOOR COUPLING (REAR)	9
16		8411A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	15

2.2 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		8487		See D042B COURTESY LIGHT COUPLING (REAR)	13
2		8450A		See P120 LEAF REAR SPEAKER IN SIDE PANEL	1
3		8451A		See P120 LEAF REAR SPEAKER IN SIDE PANEL	2
4		8086		See H126 RIGHT REAR ADDITIONAL FAN CONTROL	6
5		8085		See H125 LEFT REAR ADDITIONAL FAN CONTROL	6
6		8087A		See H125 LEFT REAR ADDITIONAL FAN CONTROL	5
6		8087B		See H126 RIGHT REAR ADDITIONAL FAN CONTROL	5
7		8410A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	8
8		8410B		See D030 DRIVER'S FRONT DOOR COUPLING (REAR)	8
8		8410A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	7
9		8488		See D042B COURTESY LIGHT COUPLING (REAR)	14
10		8005		M001L	6
11		8006		M001L	18
12		8007		M001L	7
13		8008		M001L	8
15		8411A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	16
16		8411B		See D030 DRIVER'S FRONT DOOR COUPLING (REAR)	9
16		8411A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	15

3.0 24V V6

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		8487		See D042B COURTESY LIGHT COUPLING (REAR)	13
2		8450A		See P120 LEAF REAR SPEAKER IN SIDE PANEL	1
3		8451A		See P120 LEAF REAR SPEAKER IN SIDE PANEL	2
4		8086		See H126 RIGHT REAR ADDITIONAL FAN CONTROL	6
5		8085		See H125 LEFT REAR ADDITIONAL FAN CONTROL	6
6		8087A		See H125 LEFT REAR ADDITIONAL FAN CONTROL	5
6		8087B		See H126 RIGHT REAR ADDITIONAL FAN CONTROL	5
7		8410A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	8
8		8410B		See D030 DRIVER'S FRONT DOOR COUPLING (REAR)	8
8		8410A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	7
9		8488		See D042B COURTESY LIGHT COUPLING (REAR)	14
10		8005		M001L	6
11		8006		M001L	18
12		8007		M001L	7
13		8008		M001L	8
15		8411A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	16
16		8411B		See D030 DRIVER'S FRONT DOOR COUPLING (REAR)	9
16		8411A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	15

D020C – Rear

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	M - 8487		See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	13
2	1,5	V - 8450A		See P120 LEAF REAR SPEAKER IN SIDE PANEL	1
3	1,5	S - 8451A		See P120 LEAF REAR SPEAKER IN SIDE PANEL	2
4	0,5	L - 8086		See H126 RIGHT REAR ADDITIONAL FAN CONTROL	6
5	0,5	Z - 8085		See H125 LEFT REAR ADDITIONAL FAN CONTROL	6
6	0,5	G - 8087A		See H125 LEFT REAR ADDITIONAL FAN CONTROL	5
6	0,5	M - 8087B		See H126 RIGHT REAR ADDITIONAL FAN CONTROL	5
7	1,5	V - 8410A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	8
8	1,5	V - 8410B		See D030 DRIVER'S FRONT DOOR COUPLING	8
8	1,5	V - 8410A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	7
9	0,5	Z - 8488		See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	14
10	0,35	BG - 8005		See M001L BODY COMPUTER (REAR)	6
11	0,35	H - 8006		See M001L BODY COMPUTER (REAR)	18
12	0,35	C - 8007		See M001L BODY COMPUTER (REAR)	7
13	0,35	V - 8008		See M001L BODY COMPUTER (REAR)	8
15	1,5	BG - 8411A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	16
16	1,5	BG - 8411B		See D030 DRIVER'S FRONT DOOR COUPLING	9
16	1,5	BG - 8411A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	15

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 25 REAR	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	8410A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	2
1	1,5	8410B		See D030 DRIVER'S FRONT DOOR COUPLING	8
2	1,5	8410A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	1
3	1,5	8450A		See P120 LEAF REAR SPEAKER IN SIDE PANEL	1
4	1,5	8451A		See P120 LEAF REAR SPEAKER IN SIDE PANEL	2
6	0,5	8087A		See H125 LEFT REAR ADDITIONAL FAN CONTROL	5
6	0,5	8087B		See H126 RIGHT REAR ADDITIONAL FAN CONTROL	5
7	1,5	8411A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	8
8	1,5	8411A		See D020C DASHBOARD/REAR COUPLING (DASHBOARD)	7
8	1,5	8411B		See D030 DRIVER'S FRONT DOOR COUPLING	9
9	0,5	8488		See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	14
10	0,5	8487		See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	13
11	0,5	8086		See H126 RIGHT REAR ADDITIONAL FAN CONTROL	6
12	0,5	8085		See H125 LEFT REAR ADDITIONAL FAN CONTROL	6
13	0,5	9000B	X	See D006 FRONT/REAR COUPLING	3
				See M091 SLEWING CONTROL UNIT	3
				See M047 TYRE INFLATION PRESSURE CONTROL UNIT	18
14	0,5	8454		See P022 AERIAL AND HEATED REAR WINDOW CONTROL UNIT	1
15	0,5	8489		See P022 AERIAL AND HEATED REAR WINDOW CONTROL UNIT	2
16	0,5	8497		See P022 AERIAL AND HEATED REAR WINDOW CONTROL UNIT	3
17	0,5	9001D	X	See D006 FRONT/REAR COUPLING	5
				See M091 SLEWING CONTROL UNIT	2
				See M047 TYRE INFLATION PRESSURE CONTROL UNIT	9
19	0,5	BECV		See D006 FRONT/REAR COUPLING	7

‹ Prev D008 air conditioning-heater front coupling Next › D030 driver''s front door coupling

Parts & tools for this job Staging For 2002 Fiat Ulysse

Links open Amazon search results in a new tab. As an Amazon Associate I earn from qualifying purchases.
