J031 engine fan speed 2 relay

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Relays › J031 engine fan speed 2 relay

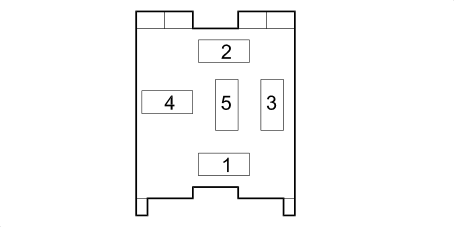

Connectors and pin-outsJ031 engine fan speed 2 relay

J031 ENGINE FAN SPEED 2 RELAY

2.0 16V JTD, 2.2 16V JTD

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	B - C1504	X	See B001C ENGINE COMPARTMENT JUNCTION UNIT	10
				See L050 AUTOMATIC TRANSMISSION SOLENOID VALVES	A1
				See F011 RIGHT HEADLAMP	9
				See F010 LEFT HEADLAMP	9
				See J032 ENGINE FAN SPEED 2 RELAY	1
				See K026 Engine coolant level sensor	3
2	0,5	G - 1540B		See J032 ENGINE FAN SPEED 2 RELAY	2
3	4	S - 1514		See N012 ENGINE FAN MOTOR - 2	2
4	4	BG - 155A	X	See M010A ENGINE MANAGEMENT CONTROL UNIT (FRONT)	C4
				See J032 ENGINE FAN SPEED 2 RELAY	3
				See N011 ENGINE FAN MOTOR	1
5	4	GV - M1504		See C011B RIGHT FRONT EARTH (FRONT)

3.0 24V V6

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	B - C1504	X	See B001C ENGINE COMPARTMENT JUNCTION UNIT	10
				See	8
				See F011 RIGHT HEADLAMP	9
				See F010 LEFT HEADLAMP	9
				See J032 ENGINE FAN SPEED 2 RELAY	1
				See K026 Engine coolant level sensor	3
2	0,5	G - 1540B		See J032 ENGINE FAN SPEED 2 RELAY	2
3	4	S - 1514B		See N012 ENGINE FAN MOTOR - 2	2
4	4	BG - 155A	X	See M010A ENGINE MANAGEMENT CONTROL UNIT (FRONT)	F2
				See J032 ENGINE FAN SPEED 2 RELAY	3
				See N011 ENGINE FAN MOTOR	1
5	4	GV - M1504		See C011B RIGHT FRONT EARTH (FRONT)

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	C1504	X	See B001F ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	4
				See D001 FRONT/DASHBOARD COUPLING	20
				See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED	1B
				See J007 GEAR LEVER LOCK ACTUATOR RELAY FEED	5B
				See J032 ENGINE FAN SPEED 2 RELAY	1
				See L050 AUTOMATIC TRANSMISSION SOLENOID VALVES	A1
				See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	27
2	0,5	G - 1540B		See J032 ENGINE FAN SPEED 2 RELAY	2
3	4	BS - 1514		See N012 ENGINE FAN MOTOR - 2	2
4	4	BG - 155A	X	See J032 ENGINE FAN SPEED 2 RELAY	3
				See M010A ENGINE MANAGEMENT CONTROL UNIT (FRONT)	C4
				See N011 ENGINE FAN MOTOR	1
5	4	M1504		See C011B RIGHT FRONT EARTH (FRONT)	1

2.2 16V JTD

3.0 24V V6

2.0 16v

2.0 16V JTD

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		C1504	X	B001C	10
				See J032 ENGINE FAN SPEED 2 RELAY	1
2		1540B		See J032 ENGINE FAN SPEED 2 RELAY	2
3		1514		See N012 ENGINE FAN MOTOR - 2	2
4		155A	X	See M010A ENGINE MANAGEMENT CONTROL UNIT(FRONT)	C4
				See J032 ENGINE FAN SPEED 2 RELAY	3
				See N011 ENGINE FAN MOTOR	1
5		M1504		C011B

2.2 16V JTD

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		C1504	X	B001C	10
				See J032 ENGINE FAN SPEED 2 RELAY	1
2		1540B		See J032 ENGINE FAN SPEED 2 RELAY	2
3		1514		See N012 ENGINE FAN MOTOR - 2	2
4		155A	X	See M010A ENGINE MANAGEMENT CONTROL UNIT(FRONT)	C4
				See J032 ENGINE FAN SPEED 2 RELAY	3
				See N011 ENGINE FAN MOTOR	1
5		M1504		C011B

2.0 16v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		C1514	X	B001C	10
2		1593		M001M	30
3		1512B		See J030 ENGINE FAN SPEED 1 RELAY	5
5		153		See O012 ENGINE FAN 2 ADJUSTMENT RESISTANCE(FRONT)	1

3.0 24V V6

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		C1514	X	B001C	10
2		1593		M001M	30
3		1512B		See J030 ENGINE FAN SPEED 1 RELAY	5
5		153		See O012 ENGINE FAN 2 ADJUSTMENT RESISTANCE(FRONT)	1
