I130 volumetric sensors disabling switch

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Switches › I130 volumetric sensors disabling switch

Connectors and pin-outsI130 volumetric sensors disabling switch

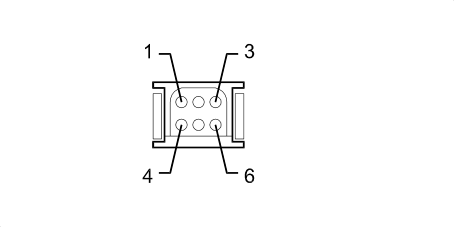

I130 VOLUMETRIC SENSORS DISABLING SWITCH

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
3	0,35	GV - M8603		See C020B PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)
6	0,5	Z - 8603		See D001 FRONT/DASHBOARD COUPLING	10

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 20 DASHBOARD	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
3	0,35	GV - M8603	X	See C020B PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)	1
				See H037A GEAR CONTROLS (DASHBOARD)	3
				See L058 AUTO. TRANS. LEVER LOCKING SOLENOID	2
				See M160 CONNECT CONTROL PANEL	5
				See R010 MULTIPLE DIAGNOSTIC COUPLING	4
6	0,5	8627		See D001 FRONT/DASHBOARD COUPLING	10

2.0 16V JTD

2.2 16V JTD

3.0 24V V6

3.0 24V V6, 2.0 16V JTD, 2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
3		M8603		See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)
6		8603		See D001 FRONT/DASHBOARD COUPLING	10

2.0 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
3		M8603		See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)
6		8603		See D001 FRONT/DASHBOARD COUPLING	10

2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
3		M8603		See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)
6		8603		See D001 FRONT/DASHBOARD COUPLING	10

3.0 24V V6

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
3		M8603		See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)
6		8603		See D001 FRONT/DASHBOARD COUPLING	10
