FRONT CROSSMEMBER

Operation 7210A18 · STRUCTURAL ELEMENTS (FRONT PART)

Removing

- Position the vehicle on a lift.

Op. 4450B12 FRONT OR REAR WHEELS (TWO) - R+R

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7210E10 R.R. FRONT BUMPER

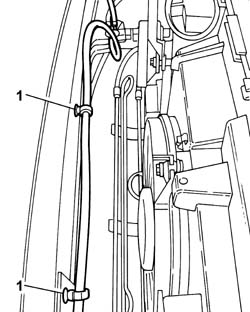

1. Release the headlamp washer pipe from the retaining clips on the crossmember.

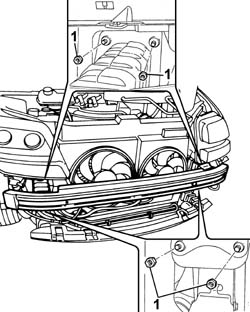

1. Undo the nuts fixing the crossmember to the front bodyshell struts.

1. Remove the front crossmember.

Refitting

- Fit the front crossmember.

- Attach the headlamp washer pipe to the retaining clips.

- Tighten the nuts fixing the crossmember to the front bodyshell struts.

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

Op. 4450B12 FRONT OR REAR WHEELS (TWO) - R+R

Op. 7210E10 R.R. FRONT BUMPER

- Remove the vehicle from the lift.
