DASHBOARD TRIM - R+R

Operation 7040A10 · PASSENGER COMPARTMENT TRIMS

Removing

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

- Disconnect the negative battery terminal.

Op. 7040H29 FRONT PILLAR LOWER COVER (ONE), LEFT OR RIGHT - R.R.

- < R1 > [Both]

Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

Op. 7040G22 FACIA COMPARTMENT LIGHT SWITCH/BULB HOLDER - R+R

Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

Op. 7040A44 LEFT DASHBOARD SIDE TRIM - R.R.

Op. 7040A68 GRILLE FOR CENTRE DASHBOARD SPEAKER - R.R.

- < R1 > [Both]

Op. 7040A47 ODDMENTS POCKET UNDER DASHBOARD - R.R.

Op. 7040A60 UNDERDASHBOARD TRIM - R.R.

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

- < R1 > [Both]

Op. 2125C24 GEAR LEVER KNOB - R + R

Op. 7040A60 UNDERDASHBOARD TRIM - R.R.

Op. 7040A26 STEERING COLUMN TRIM - R+R

Before working on the Air Bag system, follow the safety instructions for working on the system very carefully (See 5580C - Air Bag System - Precautions).

Op. 5580C18 AIR BAG MODULE - R+R

Before removing the steering wheel, position the wheels as parallel as possible to the longitudinal axis of the vehicle.

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

The clock spring is fitted with a device that automatically stops it from rotating when it is removed. Avoid forcing it to rotate.

If the steering column switch unit is being reused, it is advisable, for extra safety, to secure the two clock spring plates to prevent accidental rotation.

Op. 5550A10 STALK UNIT ASSEMBLY - R+R

Op. 4110A26 STEERING WHEEL ADJUSTMENT PLATES - R.R.

Op. 5010C38 SIDE AIR VENT (ONE) LEFT OR RIGHT IN DASHBOARD - R.R.

Op. 5010C30 CENTRAL AIR VENT IN DASHBOARD - R.R.

- < R1 > [Both]

Before working on the Air Bag system, follow the safety instructions for working on the system very carefully (See 5580C - Air Bag System - Precautions).

Op. 5580C22 AIR BAG MODULE - PASSENGER SIDE - R.R

Op. 5010B66 AIR DUCT BETWEEN TIMING CASING AND CENTRE VENT IN DASHBOARD - R.R.

Op. 5580P20 CONNECT CONTROL UNIT - R.R.

Op. 5580P24 CONNECT CONTROL UNIT SUPPORT - R.R.

Op. 5580P22 CONNECT COOLING FAN - R.R.

Op. 5560B09 INSTRUMENT PANEL WITH CONNECT VIEWER - R.R.

Op. 5010D56 SOLAR SENSOR - R.R FOLLOWING ELECTRICAL SYSTEM CHECK

Op. 7040A39 DEVICE FOR DRIVER`S SEAT SQUAB LUMBAR ADJUSTMENT - R R

- [PR7040A29]

Op. 7040A69 DASHBOARD COVER UPPER TRIM - R.R.

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

- < R1 > [Both]

- < R1 > [Both]

- Fasten the sensors to the electrical wiring for the tweeters and the instrument panel/rain sensor.

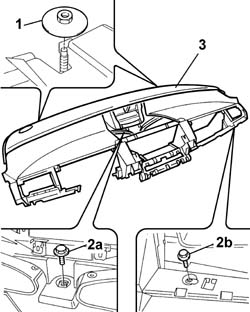

1. Undo the retaining nuts.

2. Undo the fixing bolts (2a) and (2b).

Take care when removing the dashboard trim not to damage the vehicle fittings and the electrical wiring.

Refitting

- Position the dashboard trim taking care to correctly reposition the electrical wiring between the sensors.

- Tighten the retaining nuts and bolts.

Take care when positioning the dashboard trim not to damage the vehicle fittings and the electrical wiring.

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

- < R1 > [Both]

Op. 7040A69 DASHBOARD COVER UPPER TRIM - R.R.

Op. 7040A39 DEVICE FOR DRIVER`S SEAT SQUAB LUMBAR ADJUSTMENT - R R

- < R1 > [Both]

Op. 5010D56 SOLAR SENSOR - R.R FOLLOWING ELECTRICAL SYSTEM CHECK

Op. 5560B09 INSTRUMENT PANEL WITH CONNECT VIEWER - R.R.

Op. 5580P22 CONNECT COOLING FAN - R.R.

Op. 5580P24 CONNECT CONTROL UNIT SUPPORT - R.R.

Op. 5580P20 CONNECT CONTROL UNIT - R.R.

Op. 5010B66 AIR DUCT BETWEEN TIMING CASING AND CENTRE VENT IN DASHBOARD - R.R.

Op. 5580C22 AIR BAG MODULE - PASSENGER SIDE - R.R

- [PR7040A29]

Op. 5510C30 ENGINE TIMING SENSOR - R+R

Op. 5010C38 SIDE AIR VENT (ONE) LEFT OR RIGHT IN DASHBOARD - R.R.

- < R1 > [Both]

Op. 4110A26 STEERING WHEEL ADJUSTMENT PLATES - R.R.

Op. 5550A10 STALK UNIT ASSEMBLY - R+R

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

Op. 5580C18 AIR BAG MODULE - R+R

Op. 7040A26 STEERING COLUMN TRIM - R+R

Op. 7040A60 UNDERDASHBOARD TRIM - R.R.

Op. 2125C24 GEAR LEVER KNOB - R + R

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

- < R1 > [Both]

Op. 7040A60 UNDERDASHBOARD TRIM - R.R.

Op. 7040A47 ODDMENTS POCKET UNDER DASHBOARD - R.R.

Op. 7040A68 GRILLE FOR CENTRE DASHBOARD SPEAKER - R.R.

- < R1 > [Both]

Op. 7040A44 LEFT DASHBOARD SIDE TRIM - R.R.

Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

Op. 7040G22 FACIA COMPARTMENT LIGHT SWITCH/BULB HOLDER - R+R

Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

Op. 7040H29 FRONT PILLAR LOWER COVER (ONE), LEFT OR RIGHT - R.R.

- < R1 > [Both]

- Connect the negative battery terminal.

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

- Check the operation of the systems involved using the Examiner or other diagnostic equipment.
