GEAR LEVER KNOB - R + R

Operation 2125C24 · MANUAL GEARBOX EXTERNAL CONTROL (CABLES)

2.0 16v, 2.0 16V JTD, 2.2 16V JTD

Removing

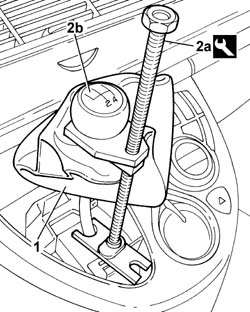

1. Release the gear lever outer boot.

2. Position the tool (2a) and remove the gear lever grip (2b).

- Lift up the gear lever outer boot.

1. Disconnect the reverse gear engagement inhibitor control.

2. Remove the gear lever outer boot.

Refitting

1. Position the gear lever outer boot (1a) and make sure the references (1b) and (1c) are aligned.

- Connect the reverse gear engagement inhibitor control.

1. Position the gear lever grip (1a) and make sure the references (1b) and (1c) are aligned.

2. Position the gear lever outer boot.
