CENTRALINA DEL CONNECT - S.R.

Operation 5580P20 · CONNECT PANEL

Removing

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

Disconnect the negative battery terminal.

Op. 7040A74 TRIM UNDER CONTROL PANEL - R.R.

Op. 5010B66 AIR DUCT BETWEEN TIMING CASING AND CENTRE VENT IN DASHBOARD - R.R.

Op. 5010C30 CENTRAL AIR OUTLET ON FASCIA - R+R

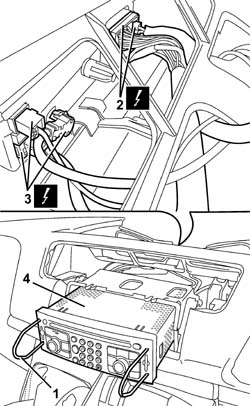

1. Using tools with the parts code no. 46515517, partly extract the Connect control unit.

2. Disconnect the electrical connections.

3. Disconnect the electrical connections for the aerials.

4. Remove the Connect control unit.

Refitting

Place the Connect control unit inside the support.

Disconnect the electrical connections for the aerials.

Connect the electrical connections.

Press the Connect fully home until it clicks into place.

Op. 5010C30 CENTRAL AIR OUTLET ON FASCIA - R+R

Op. 5010B66 AIR DUCT BETWEEN TIMING CASING AND CENTRE VENT IN DASHBOARD - R.R.

Op. 7040A74 TRIM UNDER CONTROL PANEL - R.R.

Connect the negative battery terminal.

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.
