ALARM - WIRING DIAGRAM

Wiring diagram

Components

Component code	Name	Assembly reference
B1	JUNCTION UNIT
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C10	FRONT LEFT EARTH ( FRONT )
C11	RIGHT FRONT EARTH ( FRONT )
C15	FACIA EARTH, DRIVER''S SIDE
C32	REARSCREEN EARTH
C38	EARTH ON TUNNEL
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D31	RIGHT FRONT DOOR REAR COUPLING/.
D85	TAILGATE REAR SEAL/
D85	Tailgate rear coupling
D97	SHORT CIRCUITING COUPLING
E50	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
H12	HAZARD WARNING LIGHTS, FOG LIGHTS, REAR FOG LAMPS CONTROL	Op. 5505A MULTI-FUNCTION COMPONENTS
I10	BONNET OPENING SWITCH	Op. 7025A LOCATION OF BONNET WIND NOISE
I11	BOOT OPENING SWITCH	Op. 7015B TAILGATE LOCKING/OPENING DEVICES
K62	ALARM VOLUMETRIC SENSORS ASSEMBLY ( REAR )	Op. 5580E ANTI-THEFT DEVICE
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
N50	RIGHT FRONT DOOR LOCK LEFT	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
N51	RIGHT FRONT DOOR LOCK MOTOR	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
P90	ALARM SIREN ( FRONT )	Op. 5580E ANTI-THEFT DEVICE
P93	RECEIVER AERIAL FOR ALARM AND CENTRAL LOCKING ( FRONT )

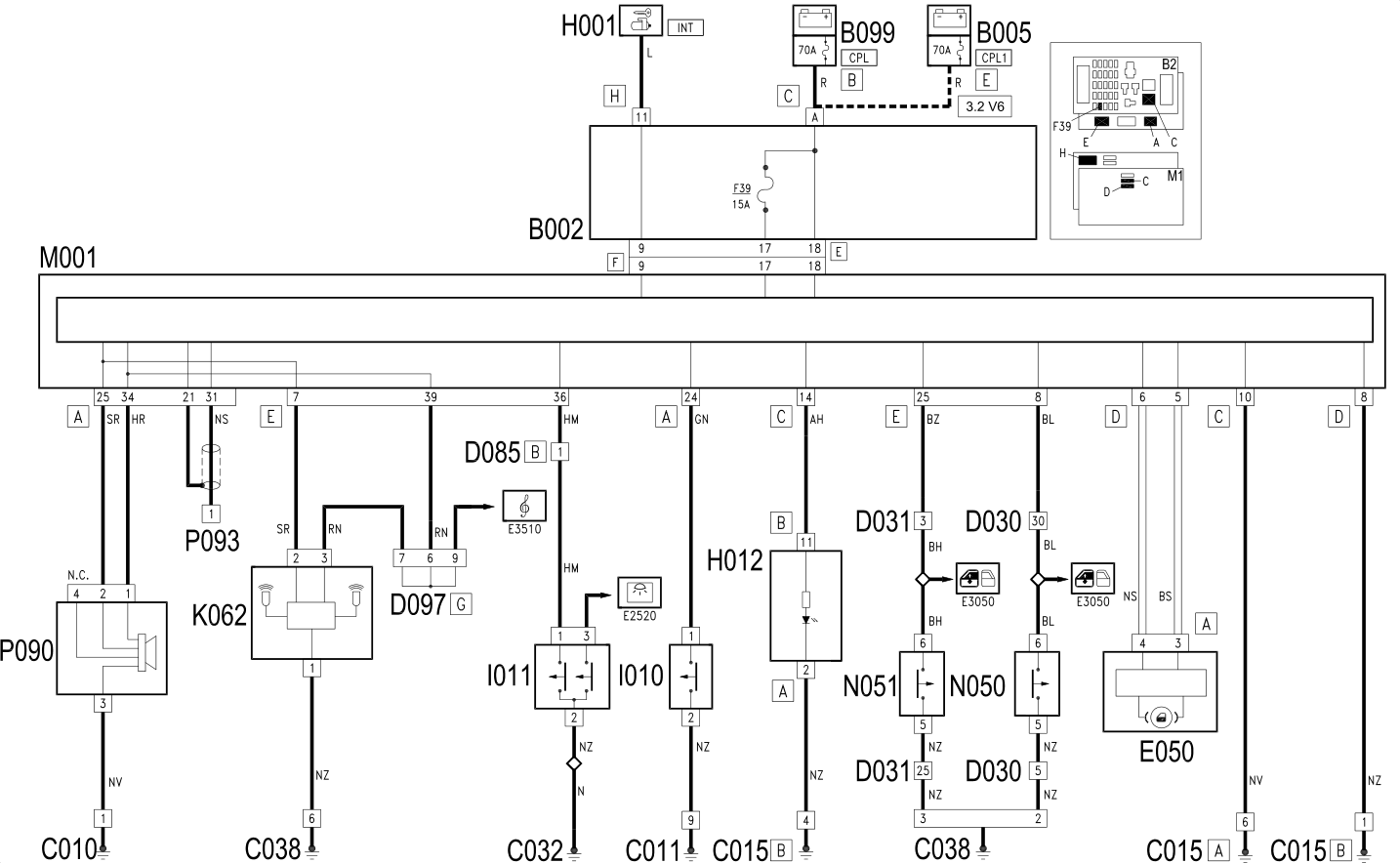

Right hand drive

Wiring diagram

Components

Component code	Name	Assembly reference
B1	JUNCTION UNIT
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C10	FRONT LEFT EARTH ( FRONT )
C11	RIGHT FRONT EARTH ( FRONT )
C15	FACIA EARTH, DRIVER''S SIDE
C32	REARSCREEN EARTH
C38	EARTH ON TUNNEL
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D31	RIGHT FRONT DOOR REAR COUPLING/.
D85	TAILGATE REAR SEAL/
D85	Tailgate rear coupling
D97	SHORT CIRCUITING COUPLING
E50	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
H12	HAZARD WARNING LIGHTS, FOG LIGHTS, REAR FOG LAMPS CONTROL	Op. 5505A MULTI-FUNCTION COMPONENTS
I10	BONNET OPENING SWITCH	Op. 7025A LOCATION OF BONNET WIND NOISE
I11	BOOT OPENING SWITCH	Op. 7015B TAILGATE LOCKING/OPENING DEVICES
K62	ALARM VOLUMETRIC SENSORS ASSEMBLY ( REAR )	Op. 5580E ANTI-THEFT DEVICE
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
N50	RIGHT FRONT DOOR LOCK LEFT	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
N51	RIGHT FRONT DOOR LOCK MOTOR	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
P90	ALARM SIREN ( FRONT )	Op. 5580E ANTI-THEFT DEVICE
P93	RECEIVER AERIAL FOR ALARM AND CENTRAL LOCKING ( FRONT )
