C38 Earth on centre tunnel

Make

Alfa Romeo

Model

GT Factory Service Manual

Year

2003–2010

Section

Earths › C38 Earth on centre tunnel

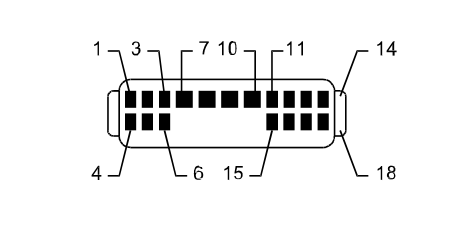

Connectors and pin-outsC38 Earth on centre tunnel

C38 Earth on centre tunnel

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		F31A	1
2		NZ		D30	5
3		NZ		D31	25
4		NZ		D31	13
5		NZ		I45	2
6		NZ		K62	1
7		NZ		G20	3
8		N		D30	31
9	2	NV		I50	1
10		N		D31	31
11		NZ		K3	1
12		NZ		D31	2
13		NV		D70	3
14		NV		D71	3
15		N		F31B	2
16		N		J57	2
18		NV		N58	1
